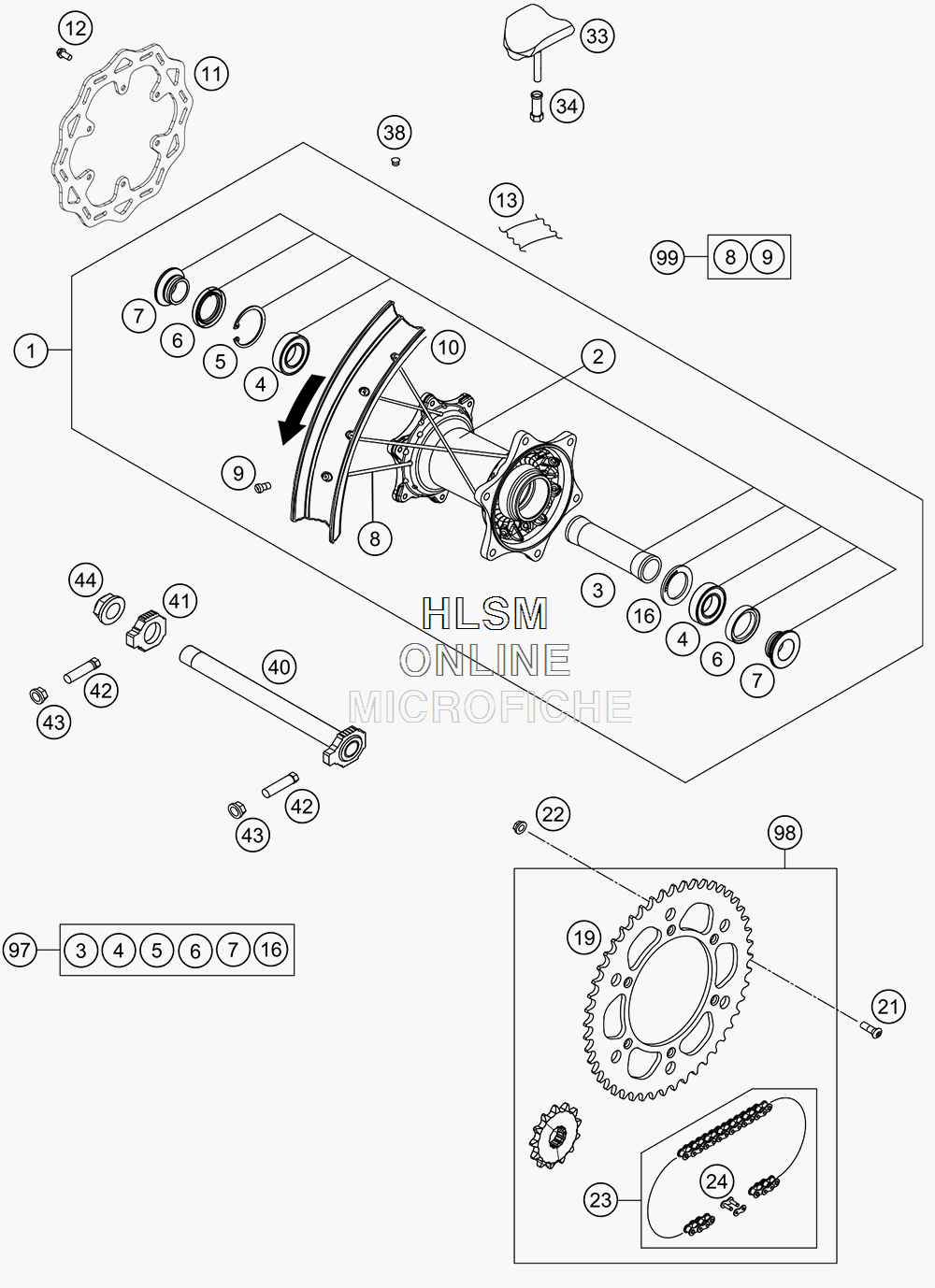

REAR WHEEL для Ktm 150 SX - 2017 года выпуска`
-
№АртикулНазвание
-
17901000124430 REAR WHEEL CPL. 2,15X19" EXCELREAR WHEEL CPL. 2,15X19" EXCEL
-
278010010244 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
377710011000 BEARING DISTANCE TUBE 121,5MMBEARING DISTANCE TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
777710016000 DISTANCE BUSHING REAR WHEELDISTANCE BUSHING REAR WHEEL
-
87901007120530 SPOKE M4,5X205-19" BLACK 16SPOKE M4,5X205-19" BLACK 16
-
977109072000 SPOKE NIPPLE M4,5 ALSPOKE NIPPLE M4,5 AL
-
107901007000030 RIM 2,15"X19" EXCEL BLACKRIM 2,15"X19" EXCEL BLACK
-
1179010060000 BRAKE DISC REAR 220MM 16BRAKE DISC REAR 220MM 16
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1350310073200 RIM BAND 18" AND 19"RIM BAND 18" AND 19"
-
1677710015000 DISTANCE RINGDISTANCE RING
-
197771015104801 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
197771015105001 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
197771015105201 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
2206923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
2350310165118 CHAIN 5/8X1/4" MXCHAIN 5/8X1/4" MX
-
2450310166000 CONNECTING LINK F. 50310165118CONNECTING LINK F. 50310165118
-
3378110090000 RIM LOCK 2,15"RIM LOCK 2,15"
-
3477110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
4077710085044 WHEEL SPINDLE CPL.WHEEL SPINDLE CPL.
-
4177710084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
4461010086000 COLLAR NUT M25X1,5 WS=32COLLAR NUT M25X1,5 WS=32
-
9777710015010 REAR WHEEL REP. KITREAR WHEEL REP. KIT
-
9800050002042 DRIVETRAIN KIT SX 13T/48TDRIVETRAIN KIT SX 13T/48T
-
9900050000975 SPOKE KIT REAR '19' BLACKSPOKE KIT REAR '19' BLACK
