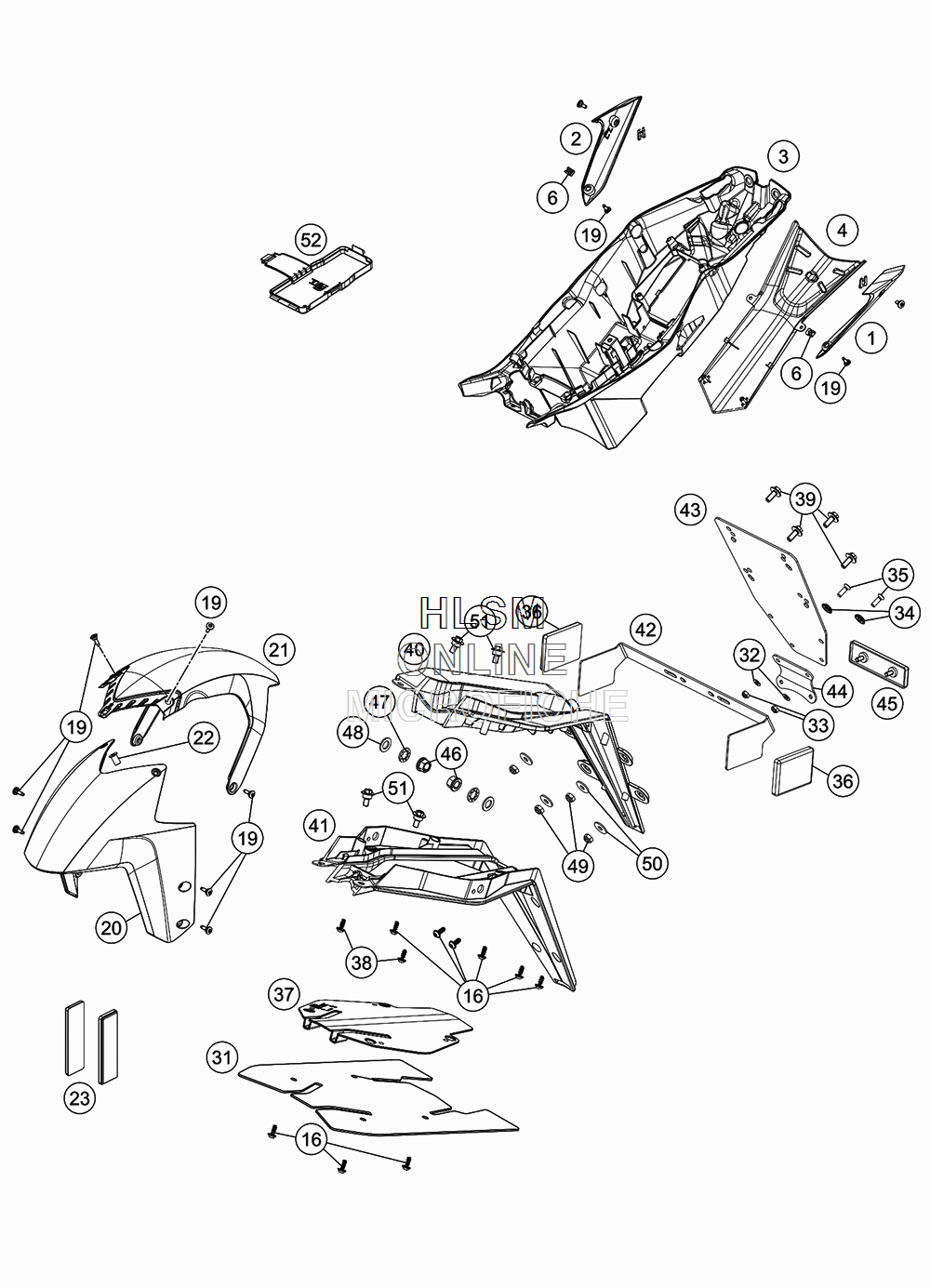

MASK - FENDERS для Ktm 1290 SUPER DUKE R WHITE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    61608041000KCA SIDE FAIRING W/ DECAL
    SIDE FAIRING W/ DECAL
  • 2
    61608042000KCA SIDE FAIRING W/ DECAL
    SIDE FAIRING W/ DECAL
  • 3
    61608018000 TAIL END LOWER PART
    TAIL END LOWER PART
  • 4
    6130804000033 REAR FAIRING LOWER PART BLACK
    REAR FAIRING LOWER PART BLACK
  • 6
    69008021080 RANGE CHANGE METAL NUT M5
    RANGE CHANGE METAL NUT M5
  • 16
    0081050121 SCREW FOR PLASTIC K50X12
    SCREW FOR PLASTIC K50X12
  • 19
    69008021060 SPECIAL SCREW M5X17
    SPECIAL SCREW M5X17
  • 21
    6130801100033 REAR FENDER BLACK
    REAR FENDER BLACK
  • 22
    60008008050 BLIND PLUG-IN NUT M5 WN 16A 03
    BLIND PLUG-IN NUT M5 WN 16A 03
  • 23
    60012080100 SIDE REFLECTOR YELLOW "CEV"
    SIDE REFLECTOR YELLOW "CEV"
  • 31
    61308123010 SPLASH PROTECTION AUSTRALIA
    SPLASH PROTECTION AUSTRALIA
  • 32
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 33
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 34
    40006006000 WASHER 6MM
    WASHER 6MM
  • 35
    0966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 36
    16512180100 SIDE REFLECTOR RED REAR
    SIDE REFLECTOR RED REAR
  • 37
    61308023010 SPLASH PROTECTION
    SPLASH PROTECTION
  • 38
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
  • 39
    0024060156 HH COLLAR SCREW M6X15
    HH COLLAR SCREW M6X15
  • 40
    61308022000 NUMBER PLATE CARRIER UPP. PART
    NUMBER PLATE CARRIER UPP. PART
  • 41
    61308023000 NUMBER PLATE CARRIER LOW. PART
    NUMBER PLATE CARRIER LOW. PART
  • 42
    62512081000 BRACKET SIDE REFLECTOR
    BRACKET SIDE REFLECTOR
  • 43
    60012081200 LICENCE FITTING
    LICENCE FITTING
  • 44
    58412080050 BRACKET FOR REFLECTOR
    BRACKET FOR REFLECTOR
  • 45
    58412080200 REFLECTOR RED ''CEV''
    REFLECTOR RED ''CEV''
  • 46
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 47
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 48
    0433100003 WASHER 18X10,5X1,6
    WASHER 18X10,5X1,6
  • 49
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 50
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 51
    83008100015 SPECIAL SCREW M6X15X5,5
    SPECIAL SCREW M6X15X5,5
  • 52
    61612054100 STORAGE COMPARTMENT SMARTPHONE
    STORAGE COMPARTMENT SMARTPHONE
