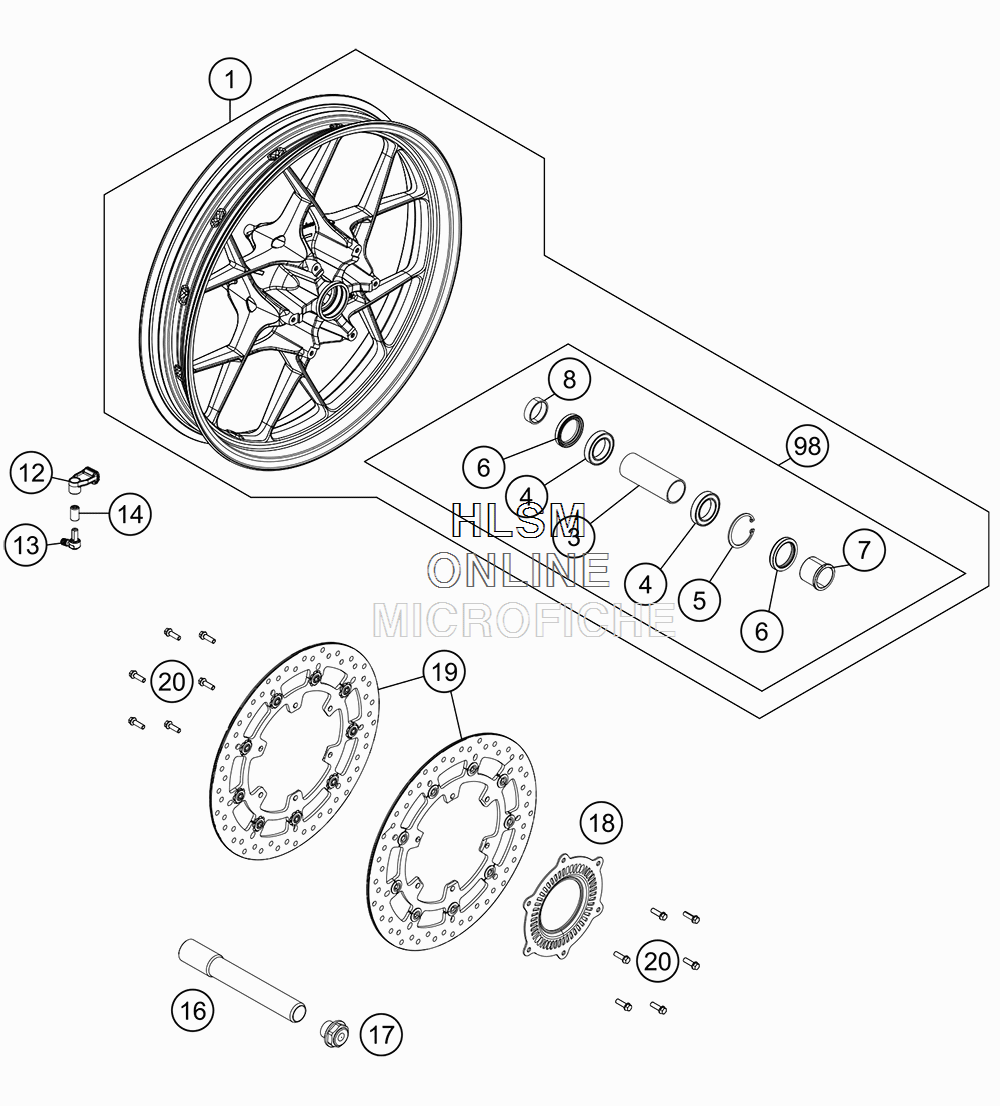

FRONT WHEEL для Ktm 1290 SUPER ADVENTURE S ORANGE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    6060900114430 FRONT WHEEL 3.0X19'' COMPLETE
    FRONT WHEEL 3.0X19'' COMPLETE
  • 3
    60309011000 BUSHING SPACER TUBE FRONT
    BUSHING SPACER TUBE FRONT
  • 4
    0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM
    GR.BALL BEAR.6906 DDU2CG23S6NM
  • 5
    0472047175 CIRCLIP DIN0472-47X1,75
    CIRCLIP DIN0472-47X1,75
  • 6
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 7
    60309012100 SPACER BUSH. FRONT WHEEL L/S
    SPACER BUSH. FRONT WHEEL L/S
  • 8
    60009013000 SPACER BUSH. FR. WHEEL R/S
    SPACER BUSH. FR. WHEEL R/S
  • 12
    61412033000 TIRE PRESSURE SENSOR SMALL
    TIRE PRESSURE SENSOR SMALL
  • 13
    61412033060 V AL VE 8,5MM 90° F . TPMS SMALL
    V AL VE 8,5MM 90° F . TPMS SMALL
  • 14
    61412033050 NUT F. TYRE-PRESSURE SENSOR SM
    NUT F. TYRE-PRESSURE SENSOR SM
  • 16
    60309081000 AXLE FRONT
    AXLE FRONT
  • 17
    6900103600001 STEERING HEAD SCREW
    STEERING HEAD SCREW
  • 18
    60342020000 SENSOR GEAR ABS
    SENSOR GEAR ABS
  • 19
    6030906000030 BRAKE DISC FRONT D=320X4,5
    BRAKE DISC FRONT D=320X4,5
  • 20
    59009062019 SPECIAL SCREW M6X19 WS=8 10.9
    SPECIAL SCREW M6X19 WS=8 10.9
  • 98
    60609015000 FRONT WHEEL REP . KIT
    FRONT WHEEL REP . KIT
