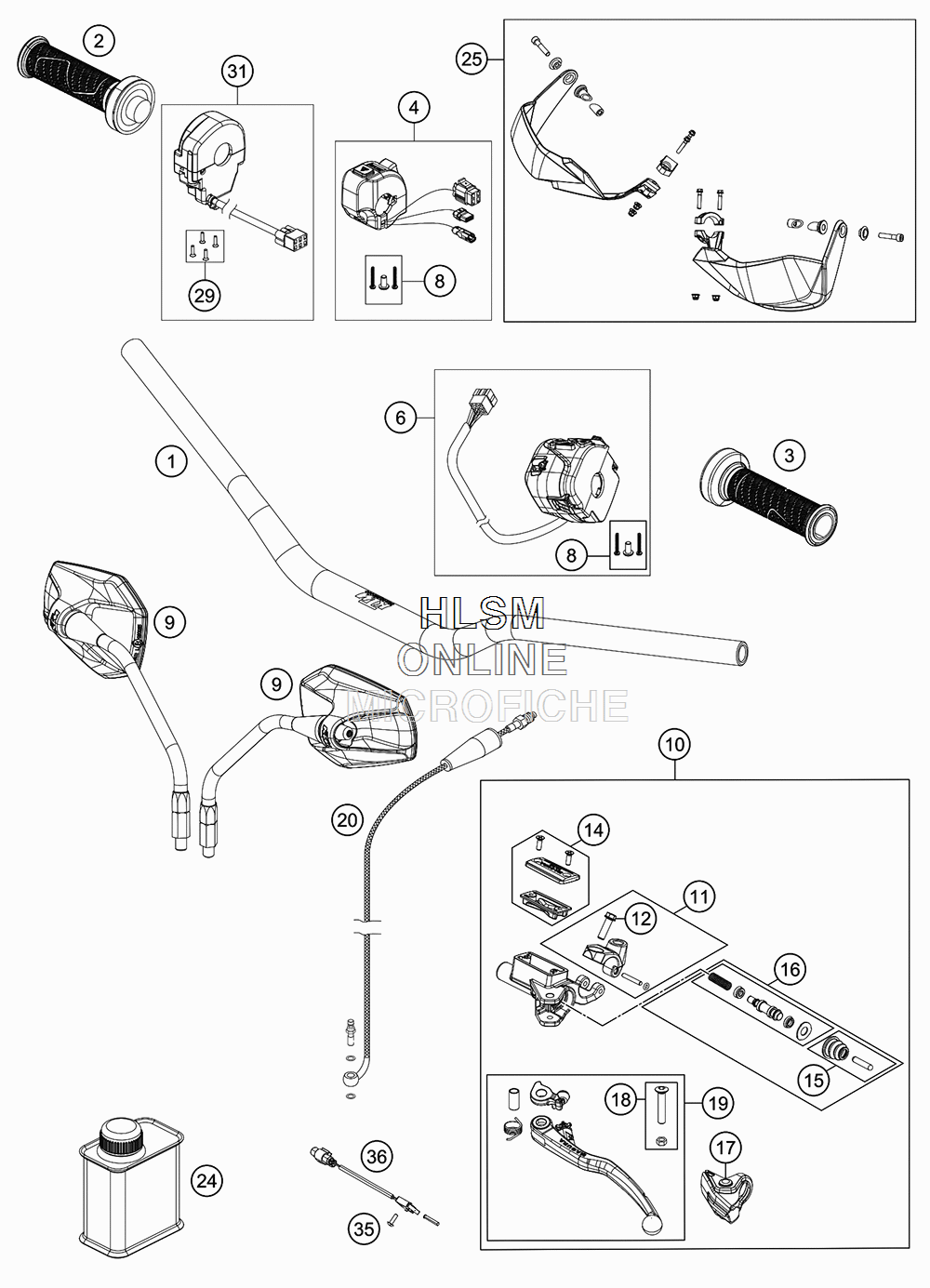

HANDLEBAR- CONTROLS для Ktm 1290 SUPER ADVENTURE R - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    6070200100033 HANDLEBAR
    HANDLEBAR
  • 2
    60702012000 GRIP TUBE (NO HEATING)
    GRIP TUBE (NO HEATING)
  • 3
    60702039000 FIXED GRIP (NO HEATING)
    FIXED GRIP (NO HEATING)
  • 4
    61411174000 START-EMERGENCY OFF SWITCH
    START-EMERGENCY OFF SWITCH
  • 6
    61411170000 COMBINATION SWITCH LEFT
    COMBINATION SWITCH LEFT
  • 8
    60411074010 SCREW SET ST AR T -STOP SPEED CON
    SCREW SET ST AR T -STOP SPEED CON
  • 9
    60312040100 MIRROR
    MIRROR
  • 10
    60302030144 MASTER CYLINDER DOT CPL. 12MM
    MASTER CYLINDER DOT CPL. 12MM
  • 11
    76513005000 CLAMP, CYL. PIN, O-RING
    CLAMP, CYL. PIN, O-RING
  • 12
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 14
    25002033000 COVER HYDR. CLUTCH DOT CPL.
    COVER HYDR. CLUTCH DOT CPL.
  • 15
    76502046000 PUSH ROD CPL.
    PUSH ROD CPL.
  • 16
    60302032100 REPAIR KIT PISTONS DOT
    REPAIR KIT PISTONS DOT
  • 17
    76502037000 PROTECT.CAP FOR LEVER PERCH
    PROTECT.CAP FOR LEVER PERCH
  • 18
    50302038200 LEVER SCREW SHORT CPL.
    LEVER SCREW SHORT CPL.
  • 19
    60302031000 CLUTCH LEVER LONG CPL.
    CLUTCH LEVER LONG CPL.
  • 20
    60032063100 CLUTCH PIPE
    CLUTCH PIPE
  • 24
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
  • 25
    6030217910030 HANDGUARD CLOSED BLACK HIGH
    HANDGUARD CLOSED BLACK HIGH
  • 29
    76011073110 SCREW SET START-STOP SWITCH
    SCREW SET START-STOP SWITCH
  • 31
    60711012000 RIDE-BY-WIRE WITHOUT THROTTLE TUBE
    RIDE-BY-WIRE WITHOUT THROTTLE TUBE
  • 35
    0985030103 FLAT HEAD SCREW DIN7985 M3X1
    FLAT HEAD SCREW DIN7985 M3X1
  • 36
    83111049000 CLUTCH SWITCH ATV
    CLUTCH SWITCH ATV
