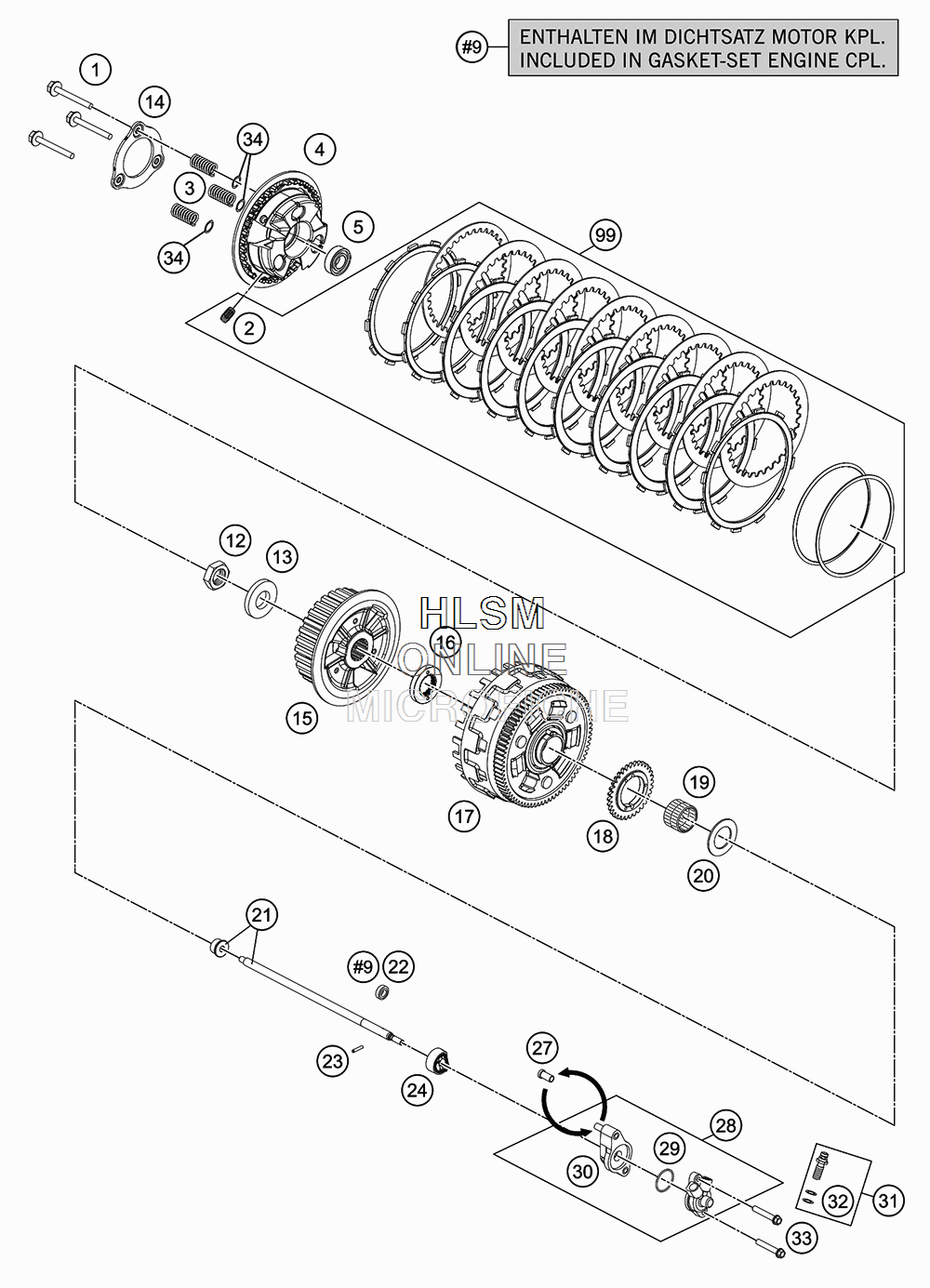

CLUTCH для Ktm 1090 ADVENTURE R - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    61332044000 HH COLLAR SCREW M6X45 SW10
    HH COLLAR SCREW M6X45 SW10
  • 2
    61332007000 DAMPER
    DAMPER
  • 3
    61332005000 CLUTCH SPRING
    CLUTCH SPRING
  • 4
    61332003000 PRESSURE CAP
    PRESSURE CAP
  • 5
    0625060032 BALL BEARING 6003 JR2 C4
    BALL BEARING 6003 JR2 C4
  • 12
    0936220155 HEXAGON NUT DIN0936-M22X1,5 R.
    HEXAGON NUT DIN0936-M22X1,5 R.
  • 13
    0126220373 WASHER DIN0126 22X37X3 MM
    WASHER DIN0126 22X37X3 MM
  • 14
    61332006000 ARRESTOR PRESSURE CAP
    ARRESTOR PRESSURE CAP
  • 15
    61332002000 INNER CLUTCH HUB
    INNER CLUTCH HUB
  • 16
    60032021000 SECTION WASHER
    SECTION WASHER
  • 17
    61332001044 CLUTCH CAGE CPL.
    CLUTCH CAGE CPL.
  • 18
    60038001132 OIL PUMP GEAR WHEEL 32-T
    OIL PUMP GEAR WHEEL 32-T
  • 19
    0618303526 NEEDLE BUSH HK 30X35X26
    NEEDLE BUSH HK 30X35X26
  • 20
    60032020000 STOP DISK 30,2/50/2
    STOP DISK 30,2/50/2
  • 21
    60232054000 PUSH ROD CPL. 110MM
    PUSH ROD CPL. 110MM
  • 22
    0760091862 SHAFT SEAL RING 9X18X06 B-NBR
    SHAFT SEAL RING 9X18X06 B-NBR
  • 23
    0402031780 NEEDLE ROL.DIN5402 NRB 3X17,8
    NEEDLE ROL.DIN5402 NRB 3X17,8
  • 24
    61232069000 PUSH ROD GUIDE
    PUSH ROD GUIDE
  • 27
    61232061051 SLEEVE CLUTCH CONTR.
    SLEEVE CLUTCH CONTR.
  • 28
    60032061244 SLAVE CYLINDER CPL. LC8
    SLAVE CYLINDER CPL. LC8
  • 29
    60032065000 O-RING GASKET
    O-RING GASKET
  • 30
    60032061050 DISTANCE CLUTCH CONTR. CPL.
    DISTANCE CLUTCH CONTR. CPL.
  • 31
    50332062000 HOLLOW SCREW CPL. M 10X1
    HOLLOW SCREW CPL. M 10X1
  • 32
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 33
    0025060456 HH COLLAR SCREW M6X45
    HH COLLAR SCREW M6X45
  • 34
    61332004000 SUPPORT CLUTCH SPRING
    SUPPORT CLUTCH SPRING
  • 99
    60432011010 CLUTCH KIT 1190/1290
    CLUTCH KIT 1190/1290
