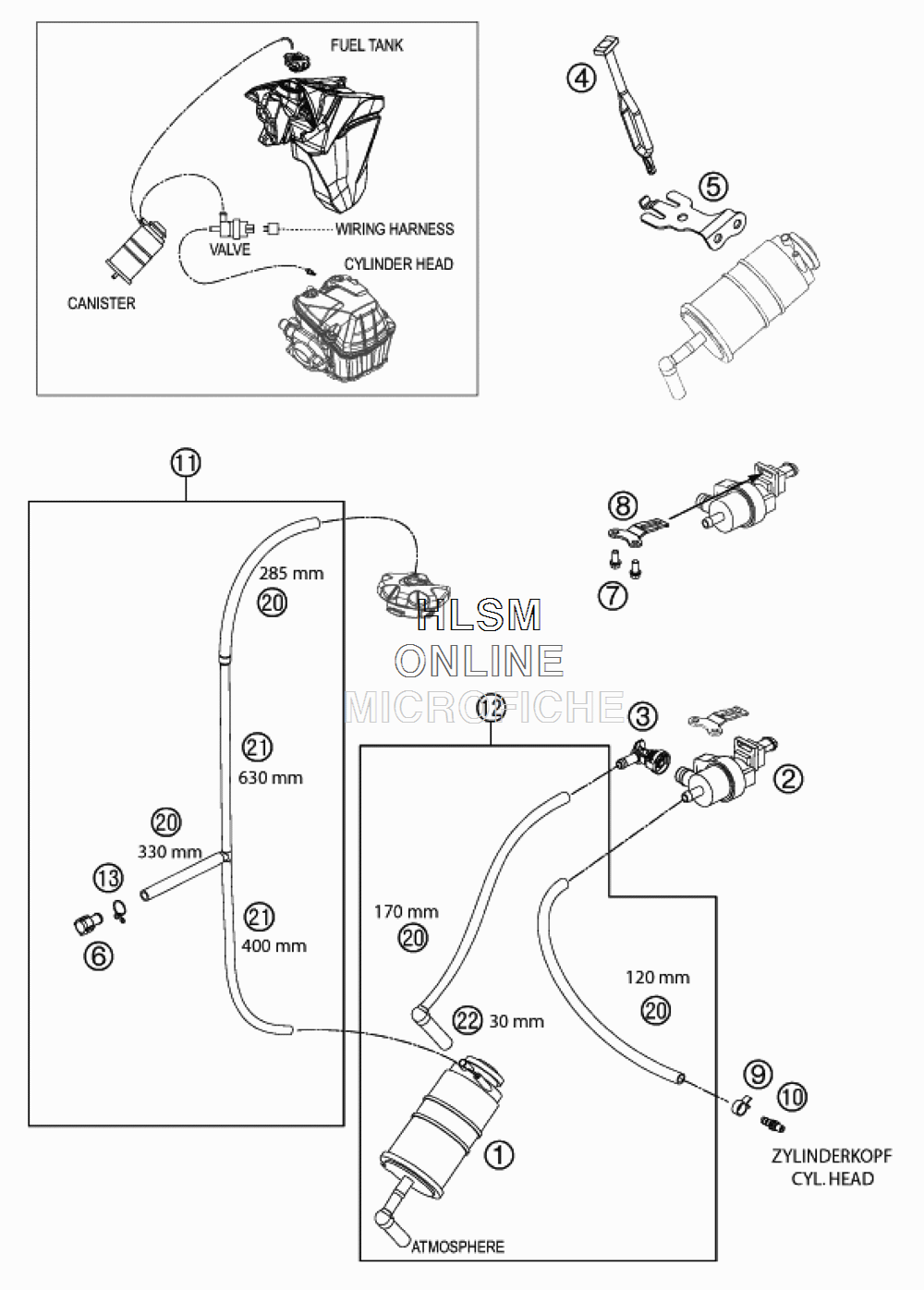

EVAPORATIVE CANISTER для Ktm 500 EXC SIX DAYS - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    59415001100 EVAPORATIVE CANISTER
    EVAPORATIVE CANISTER
  • 2
    61115015000 VALVE FOR CARBON CANISTER
    VALVE FOR CARBON CANISTER
  • 3
    61115016000 FITTING PIECE NQV2 NW7 90°
    FITTING PIECE NQV2 NW7 90°
  • 4
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
  • 5
    78115001050 BRACKET EVAP.CANISTER
    BRACKET EVAP.CANISTER
  • 6
    78015026000 PLUG D=6/10
    PLUG D=6/10
  • 7
    0025060086 HH COLLAR SCREW M6X8
    HH COLLAR SCREW M6X8
  • 8
    78115002000 BRACKET AKF-VALVE
    BRACKET AKF-VALVE
  • 9
    59007017000 CLAMP YDNAC 10096F (9,6MM)
    CLAMP YDNAC 10096F (9,6MM)
  • 10
    60036023100 VACUUM CONECTION M6/0,5MM
    VACUUM CONECTION M6/0,5MM
  • 11
    81215041033 DRAINING EV AP-CAN. CPL.
    DRAINING EV AP-CAN. CPL.
  • 12
    78115001033 EVAP CANISTER CPL.
    EVAP CANISTER CPL.
  • 13
    50231005000 HOSE CLAMP YDNAC 10119
    HOSE CLAMP YDNAC 10119
  • 20
    78015019000 HOSE EPA D=6/10 L=2000MM
    HOSE EPA D=6/10 L=2000MM
  • 21
    78015021000 HOSE EPA D=4/8 L=2000MM
    HOSE EPA D=4/8 L=2000MM
  • 22
    60015219120 HOSE 8X12 FPM 120MM
    HOSE 8X12 FPM 120MM
