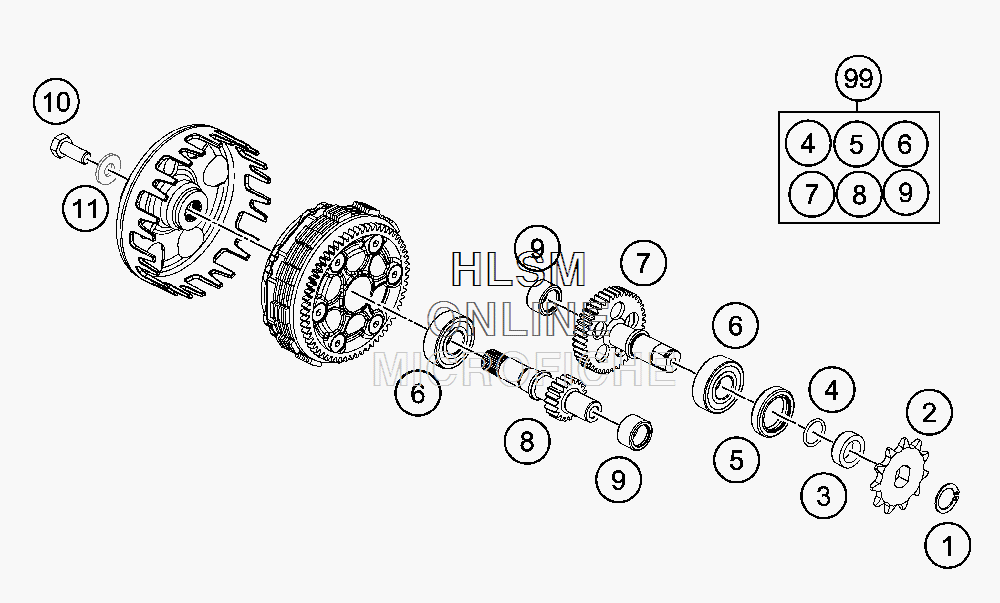

TRANSMISSION для Ktm 50 SX - 2016 года выпуска`
-
№АртикулНазвание
-
10471150010 CIRCLIP DIN0471-15X1CIRCLIP DIN0471-15X1
-
245233029011 SPROCKET 11 T.SPROCKET 11 T.
-
245233029010 SPROCKET 10 T.SPROCKET 10 T.
-
345233030000 DISANCESPACER F. SPROCKETDISANCESPACER F. SPROCKET
-
40770015018 O-RING 15,00X1,80O-RING 15,00X1,80
-
50760223270 SHAFT SEAL RING 22X32X7 BSLSHAFT SEAL RING 22X32X7 BSL
-
645133028000 BALL BEARING 15X35X11BALL BEARING 15X35X11
-
745233010200 COUNTER SHAFT (USE WITH 45233001200)COUNTER SHAFT (USE WITH 45233001200)
-
845233001200 MAIN SHAFT (USE WITH 45233010200)MAIN SHAFT (USE WITH 45233010200)
-
954632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
100035080206S AH-COLLAR SCREW M8X20 ISA45AH-COLLAR SCREW M8X20 ISA45
-
110340084234 WASHER DIN 6340 8,4X23X4WASHER DIN 6340 8,4X23X4
-
9900050000948 COUNTER SHAFT REP. KIT 50 SXCOUNTER SHAFT REP. KIT 50 SX
