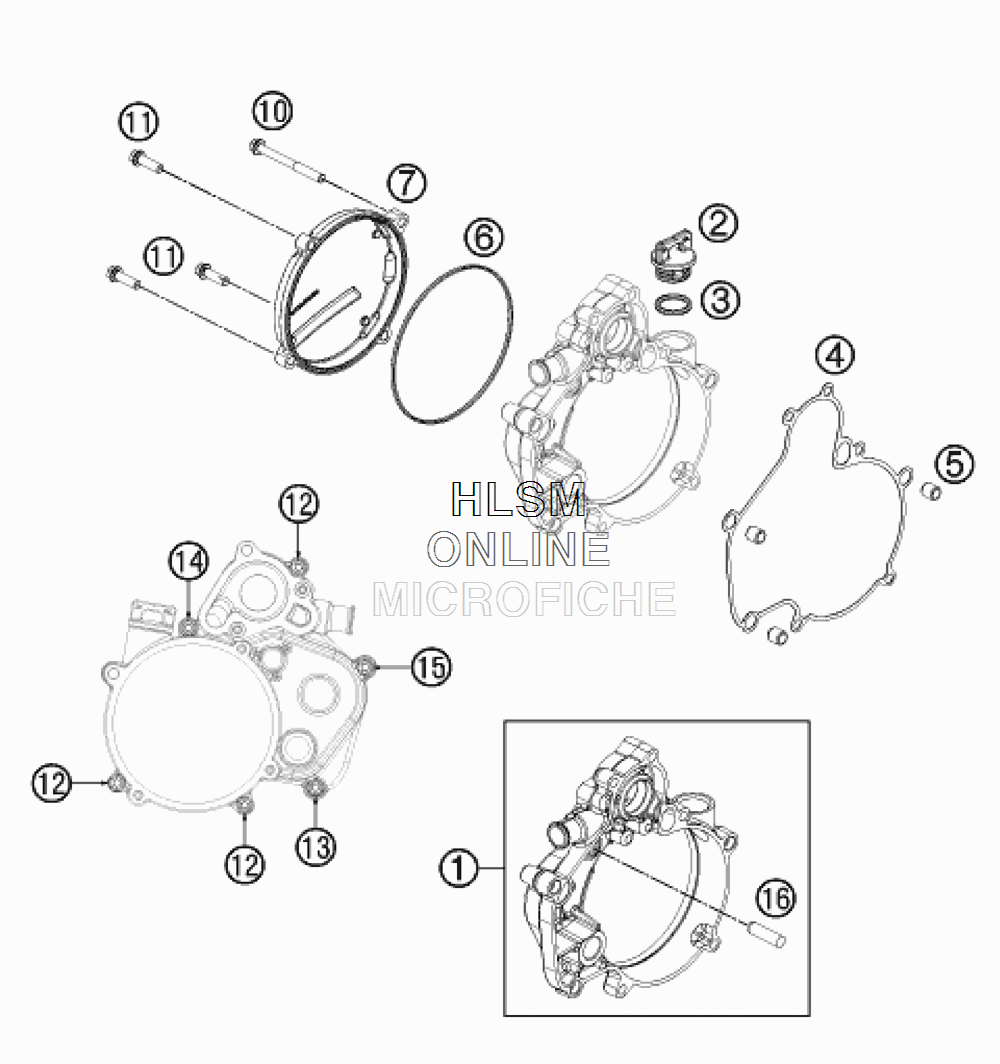

CLUTCH COVER для Ktm 50 SX MINI - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    45230001044 CLUTCH COVER INNER CPL.
    CLUTCH COVER INNER CPL.
  • 2
    58030020100 PLUG CPL. M24X3
    PLUG CPL. M24X3
  • 3
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 4
    45230025000 CLUTCH COVER GASKET INSIDE
    CLUTCH COVER GASKET INSIDE
  • 5
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 6
    45230027000 CLUTCH COVER GASKET
    CLUTCH COVER GASKET
  • 7
    45230026100 CLUTCH COVER OUTSIDE
    CLUTCH COVER OUTSIDE
  • 10
    0025060606 HH COLLAR SCREW M6X60
    HH COLLAR SCREW M6X60
  • 11
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 12
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 13
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 14
    0025060356 HH COLLAR SCREW M6X35
    HH COLLAR SCREW M6X35
  • 15
    0025060506 HH COLLAR SCREW M6X50
    HH COLLAR SCREW M6X50
  • 16
    0325080300 CYLINDER STUD DIN6325 8X30 M6
    CYLINDER STUD DIN6325 8X30 M6
