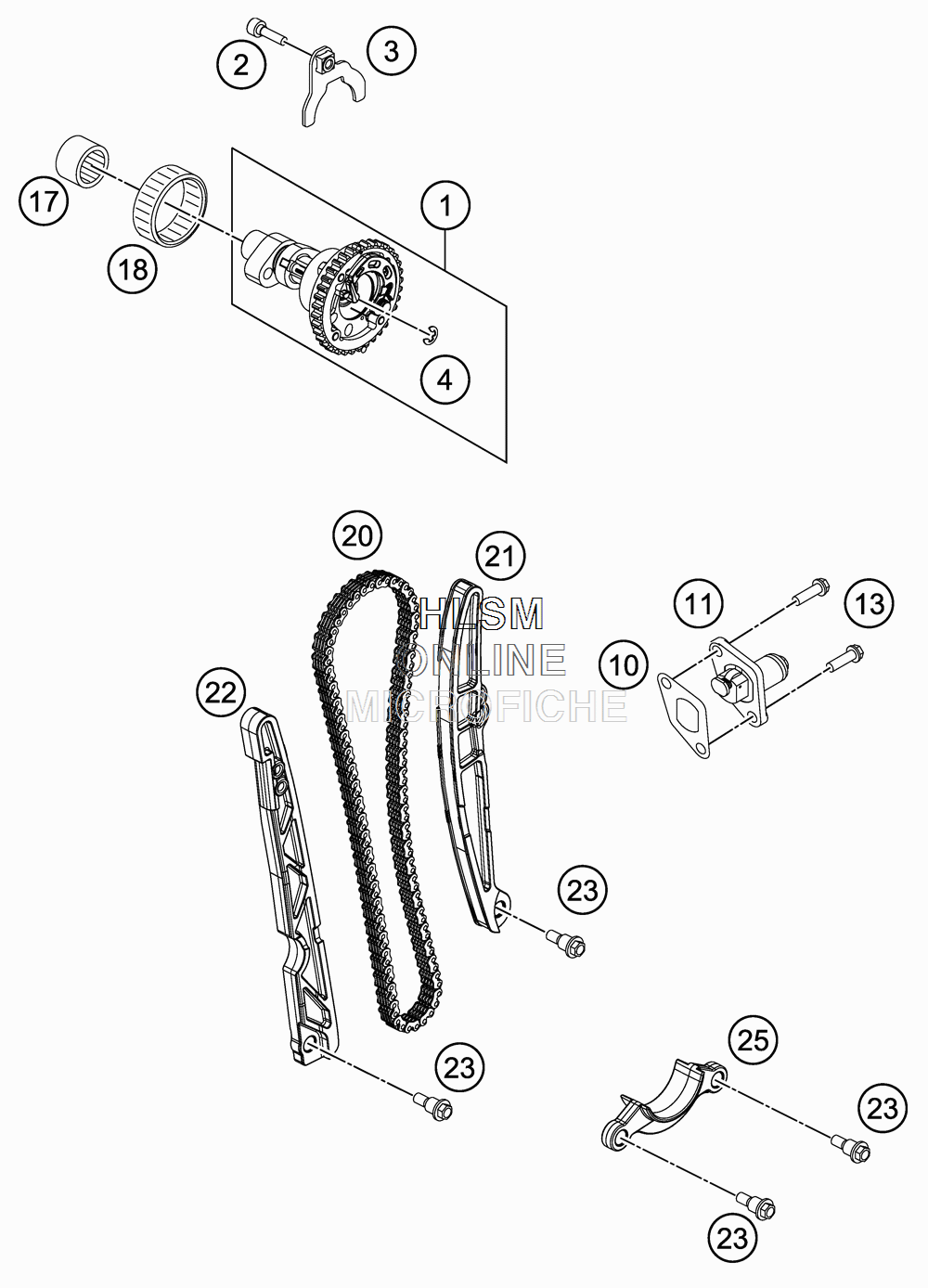

TIMING DRIVE для Ktm 450 XCW - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    78136010033 CAMSHAFT CPL. WITH DECO
    CAMSHAFT CPL. WITH DECO
  • 2
    0025060206S HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 3
    78036012033 RETAINING PLATE CAMSHAFT CPL.
    RETAINING PLATE CAMSHAFT CPL.
  • 4
    0799050000 TAB WASHER DIN6799 RS5
    TAB WASHER DIN6799 RS5
  • 10
    59036003050 GASKET TIMING CHAIN TENSIONER
    GASKET TIMING CHAIN TENSIONER
  • 11
    59036003000 TIMINGCHAIN TENSIONER CPL.RAC.
    TIMINGCHAIN TENSIONER CPL.RAC.
  • 13
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 17
    0618182414 NEEDLE SLEEVE HK1814RS18/24/14
    NEEDLE SLEEVE HK1814RS18/24/14
  • 18
    0618404712 NEEDLE SLEEVE HK4012B40X47X12
    NEEDLE SLEEVE HK4012B40X47X12
  • 20
    78036013000 TIMING CHAIN 110T
    TIMING CHAIN 110T
  • 21
    78136002100 TIMING CHAIN TENSIONER
    TIMING CHAIN TENSIONER
  • 22
    78136001000 TIMING CHAIN GUIDE
    TIMING CHAIN GUIDE
  • 23
    77236001160 BUSHING SCREW M6
    BUSHING SCREW M6
  • 25
    78136018000 FAILURE PROTECTION
    FAILURE PROTECTION
