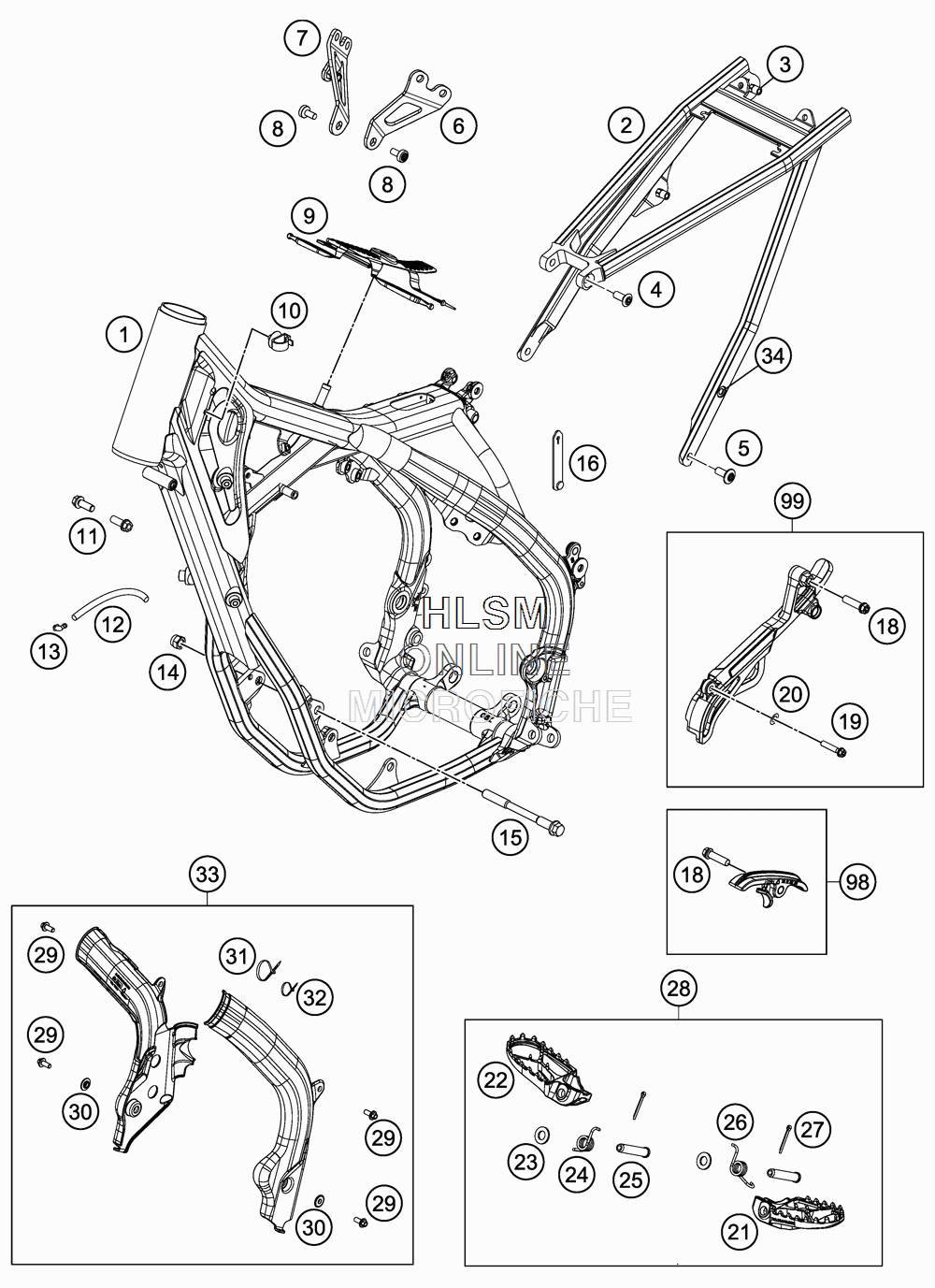

FRAME для Ktm 450 XCF - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7940300110033 FRAME "794P2" (BLACK)
    FRAME "794P2" (BLACK)
  • 2
    79003002000 SUB FRAME
    SUB FRAME
  • 3
    77303139000 BLIND RIVET NUT EM6-60LF/HX
    BLIND RIVET NUT EM6-60LF/HX
  • 4
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 5
    79003003000 SPECIAL SCREW M8X18 TORX45 SS
    SPECIAL SCREW M8X18 TORX45 SS
  • 6
    79403013000 ENGINE BRACE L/S
    ENGINE BRACE L/S
  • 7
    79403014044 ENGINE BRACE R/S CPL.
    ENGINE BRACE R/S CPL.
  • 8
    0035080156S AH-COLLAR SCREW M8X15 TORX45
    AH-COLLAR SCREW M8X15 TORX45
  • 9
    79007012000 TANK REST RUBBER
    TANK REST RUBBER
  • 10
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 11
    0025080166S HH COLLAR SCREW M8X16
    HH COLLAR SCREW M8X16
  • 12
    55007016001 PVC-HOSE 7X10 PER METER
    PVC-HOSE 7X10 PER METER
  • 13
    50303089000 ANGLE PIECE
    ANGLE PIECE
  • 14
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 15
    59003013000 ENGINEBRAC.SCREW M10X123 WS=13
    ENGINEBRAC.SCREW M10X123 WS=13
  • 16
    60011093075 RUBBER CABLE TIE 75MM
    RUBBER CABLE TIE 75MM
  • 18
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 19
    0025060356 HH COLLAR SCREW M6X35
    HH COLLAR SCREW M6X35
  • 20
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 21
    79003040000 FOOTREST L/S
    FOOTREST L/S
  • 22
    79003041000 FOOTREST R/S
    FOOTREST R/S
  • 23
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 24
    79003044000 FOOTREST SPRING R/S
    FOOTREST SPRING R/S
  • 25
    54803044000 PIN FOR FOOT PED 51.5X9.8 MM
    PIN FOR FOOT PED 51.5X9.8 MM
  • 26
    79003045000 FOOTREST SPRING L/S
    FOOTREST SPRING L/S
  • 27
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 28
    79003040033 FOOT PEGS SET CPL. 2016
    FOOT PEGS SET CPL. 2016
  • 29
    0014050123 HH COLLAR SCREW M 5X12
    HH COLLAR SCREW M 5X12
  • 30
    54803092060 BUSH F. FRAME PROTECTION
    BUSH F. FRAME PROTECTION
  • 31
    44011076305 CABLE TIE 300/4,8MM (BLACK)
    CABLE TIE 300/4,8MM (BLACK)
  • 32
    44011076140 CABLE TIE 140/2,5MM (BLACK)
    CABLE TIE 140/2,5MM (BLACK)
  • 33
    7900309400033 FRAME PROTECTION SET (BLACK)
    FRAME PROTECTION SET (BLACK)
  • 34
    79003002080 BLIND RIVET NUT M6 KNURLED
    BLIND RIVET NUT M6 KNURLED
  • 98
    79003053010 CHAIN SLIDING KIT BELOW CPL.
    CHAIN SLIDING KIT BELOW CPL.
  • 99
    79403096010 SPROCKET COVER KIT
    SPROCKET COVER KIT
