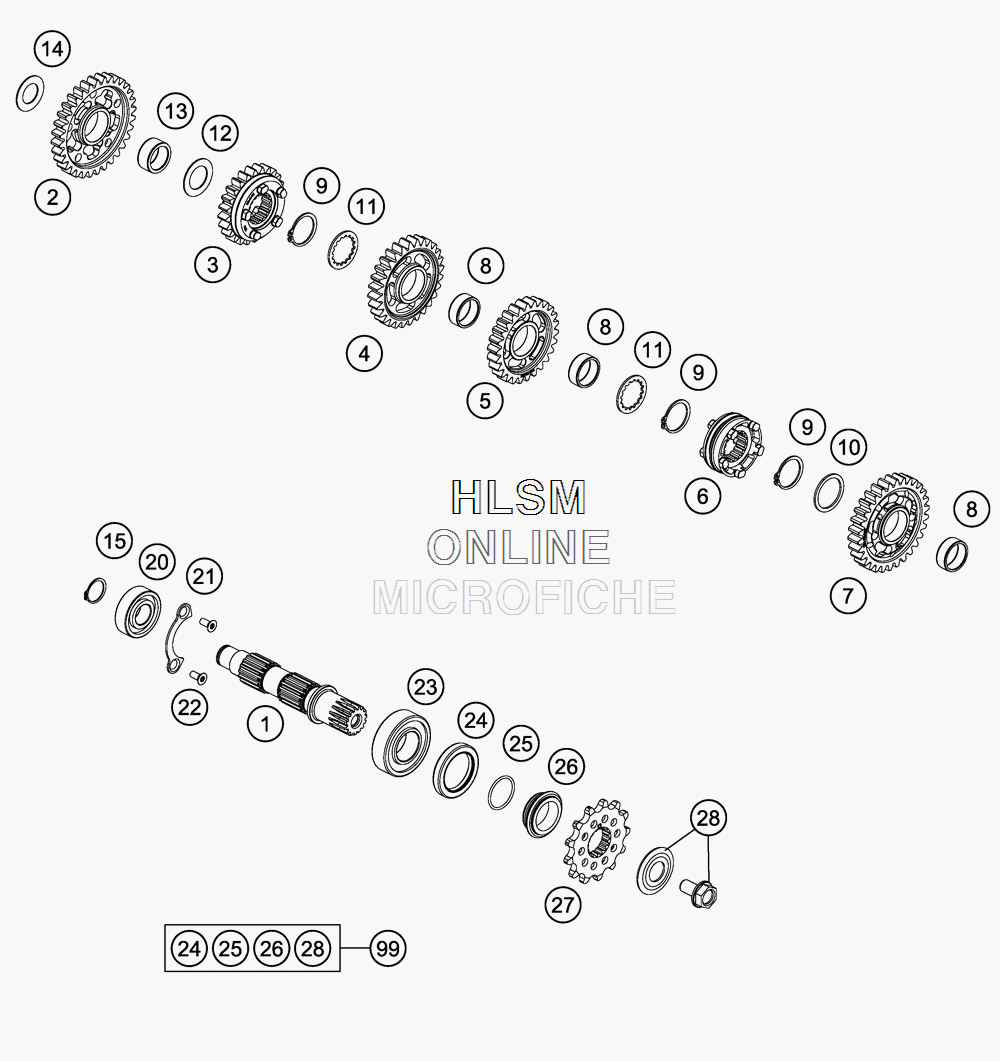

TRANSMISSION - COUNTERSHAFT для Ktm 450 SXF - 2016 года выпуска`

№

Артикул

Название
1

79433010000 DRIVEN SHAFT

DRIVEN SHAFT

26 780 ₽
2

79433011000 IDLER GEAR 1ST G.

IDLER GEAR 1ST G.

27 890 ₽
3

79433015100 SLIDING GEAR 5TH G.

SLIDING GEAR 5TH G.

34 050 ₽
4

79433013000 IDLER GEAR 3RD G.

IDLER GEAR 3RD G.

26 080 ₽
5

79433014000 IDLER GEAR 4TH G.

IDLER GEAR 4TH G.

25 560 ₽
6

79433017000 SHFIT COLLAR

SHFIT COLLAR

24 180 ₽
7

79433012000 IDLER GEAR 2ND G.

IDLER GEAR 2ND G.

28 300 ₽
8

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
9

0471250120 CIRCLIP DIN0471-25X1,2

CIRCLIP DIN0471-25X1,2

290 ₽
10

78033031000 STOP DISK 26 X 32 X 1,5

STOP DISK 26 X 32 X 1,5

640 ₽
11

78033033000 STOP DISK 23 X 32 X 1,5

STOP DISK 23 X 32 X 1,5

640 ₽
12

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
13

0405202612 NEEDLE BEARING K 20X26X12

NEEDLE BEARING K 20X26X12

2 950 ₽
14

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
15

0471170015 CIRCLIP DIN 0471-17X1, 5

CIRCLIP DIN 0471-17X1, 5

210 ₽
20

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
21

78033132000 TAB WASHER BEARING COUNT.SHAFT

TAB WASHER BEARING COUNT.SHAFT

1 140 ₽
22

0019050121S INT. TORX FLAT HEAD M5X12 T25

INT. TORX FLAT HEAD M5X12 T25

290 ₽
23

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
24

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
25

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
26

78133014000 SPACER SLEEVE COUNTER

SPACER SLEEVE COUNTER

7 650 ₽
27

79233029013 SPROCKET 13T

SPROCKET 13T

8 110 ₽
27

79233029014 SPROCKET 14T

SPROCKET 14T

8 110 ₽
28

59033034044 SCREW 10.9+SPRING WASHER

SCREW 10.9+SPRING WASHER

2 050 ₽
99

00050000941 COUNTER SHAFT REP.KIT 4 STROKE

COUNTER SHAFT REP.KIT 4 STROKE

8 040 ₽
