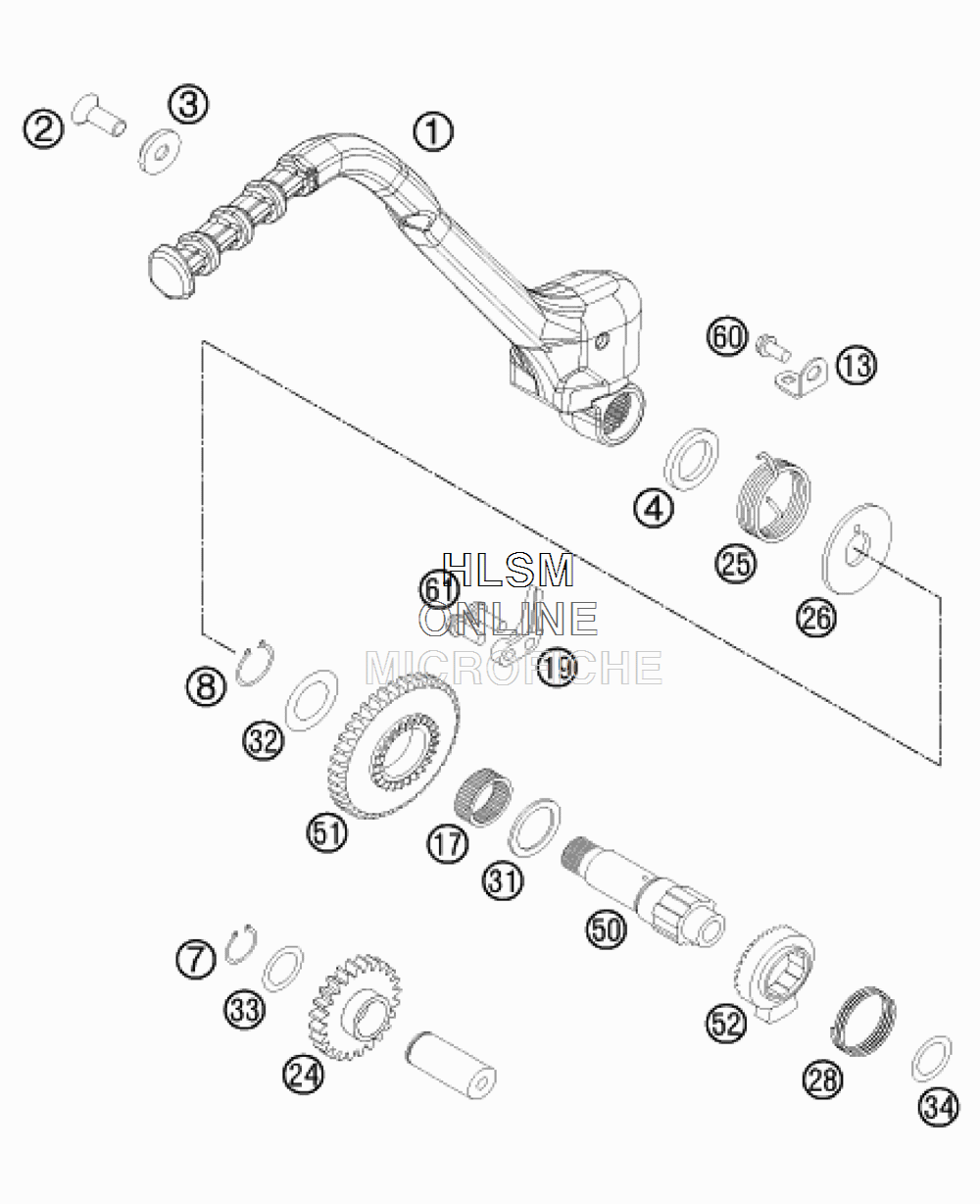

KICK STARTER для Ktm 300 XC - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    77133070144 KICKSTARTER CPL.
    KICKSTARTER CPL.
  • 2
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 3
    54633037000 WASHER 8MM GALVANIZED
    WASHER 8MM GALVANIZED
  • 4
    0760193070 SHAFT SEAL RING 19X30X7 B
    SHAFT SEAL RING 19X30X7 B
  • 7
    0471170010 CIRCLIP DIN0471-17X1
    CIRCLIP DIN0471-17X1
  • 8
    0471190120 CIRCLIP DIN0471-19X1,2
    CIRCLIP DIN0471-19X1,2
  • 13
    54633074000 SPRING HANGER
    SPRING HANGER
  • 17
    0405222610 NEEDLE BEARING K 22X26X10 A
    NEEDLE BEARING K 22X26X10 A
  • 19
    59033069000 BUMP PART
    BUMP PART
  • 24
    54833024100 INTERMEDIATE GEAR
    INTERMEDIATE GEAR
  • 25
    54633025000 KICKSTARTER SPRING
    KICKSTARTER SPRING
  • 26
    54633026000 DRIVING HUB
    DRIVING HUB
  • 28
    58033028000 RATCHET GEAR SPRING 1,2 MM
    RATCHET GEAR SPRING 1,2 MM
  • 31
    58033031000 STOP DISK 22,2 X 30 X 1,5
    STOP DISK 22,2 X 30 X 1,5
  • 32
    59033080000 SHIM 20X32X1
    SHIM 20X32X1
  • 33
    54633090000 STOP DISK 17,2X25X1
    STOP DISK 17,2X25X1
  • 34
    0988172405 SHIM WASHER DIN0988-17X24X0,5
    SHIM WASHER DIN0988-17X24X0,5
  • 50
    59033050100 KICKSTARTER SHAFT
    KICKSTARTER SHAFT
  • 51
    54833051134 KICKSTARTER GEAR 34-T
    KICKSTARTER GEAR 34-T
  • 52
    59033052100 RATCHET GEAR KICKSTARTER
    RATCHET GEAR KICKSTARTER
  • 60
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 61
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
