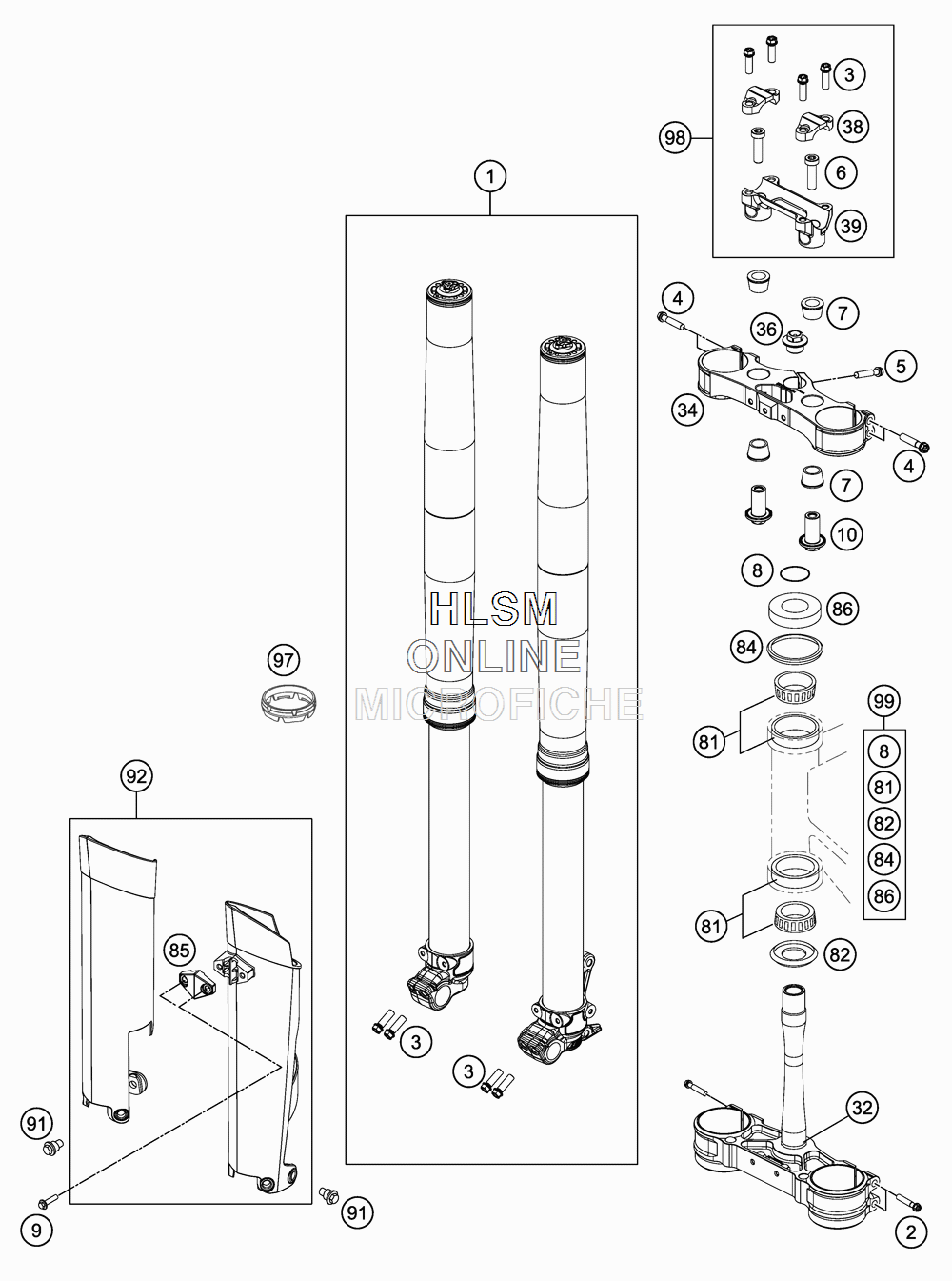

FRONT FORK TRIPLE CLAMP для Ktm 250 XC - 2016 года выпуска`
-
№АртикулНазвание
-
124187O7301 FORKFORK
-
20025080506 HH COLLAR SCREW M8X50HH COLLAR SCREW M8X50
-
30025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
40025080406 HH COLLAR SCREW M8X40HH COLLAR SCREW M8X40
-
50025080256S HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
60032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
783001040000 RUBBER BUSHRUBBER BUSH
-
80770025035 O-RING 25X3,55 NBR70O-RING 25X3,55 NBR70
-
90017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
1079001037034 HANDLEBAR SUPPORT LOWER PARTHANDLEBAR SUPPORT LOWER PART
-
327900103202230 LOWER TRIPLE CLAMPLOWER TRIPLE CLAMP
-
347900103402230 UPPER TRIPLE CLAMPUPPER TRIPLE CLAMP
-
3670009082000 AXLESCREW M20X1.5; SW17AXLESCREW M20X1.5; SW17
-
3877201038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3979001139036 HANDLEBAR SUPPORT D28MM-H36MMHANDLEBAR SUPPORT D28MM-H36MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8277701084000 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEERING HEAD GASKET TOPSTEERING HEAD GASKET TOP
-
857770108500028 CLAMP BRAKE HOSECLAMP BRAKE HOSE
-
8678101086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
927770109400028 FORK PROTECTION L/S+R/SFORK PROTECTION L/S+R/S
-
9748600698 FORK PROTECTION RINGFORK PROTECTION RING
-
9800050000928 HANDLEBAR SUPPORTHANDLEBAR SUPPORT
-
9900050000930 STEERING HEAD REP. KITSTEERING HEAD REP. KIT
