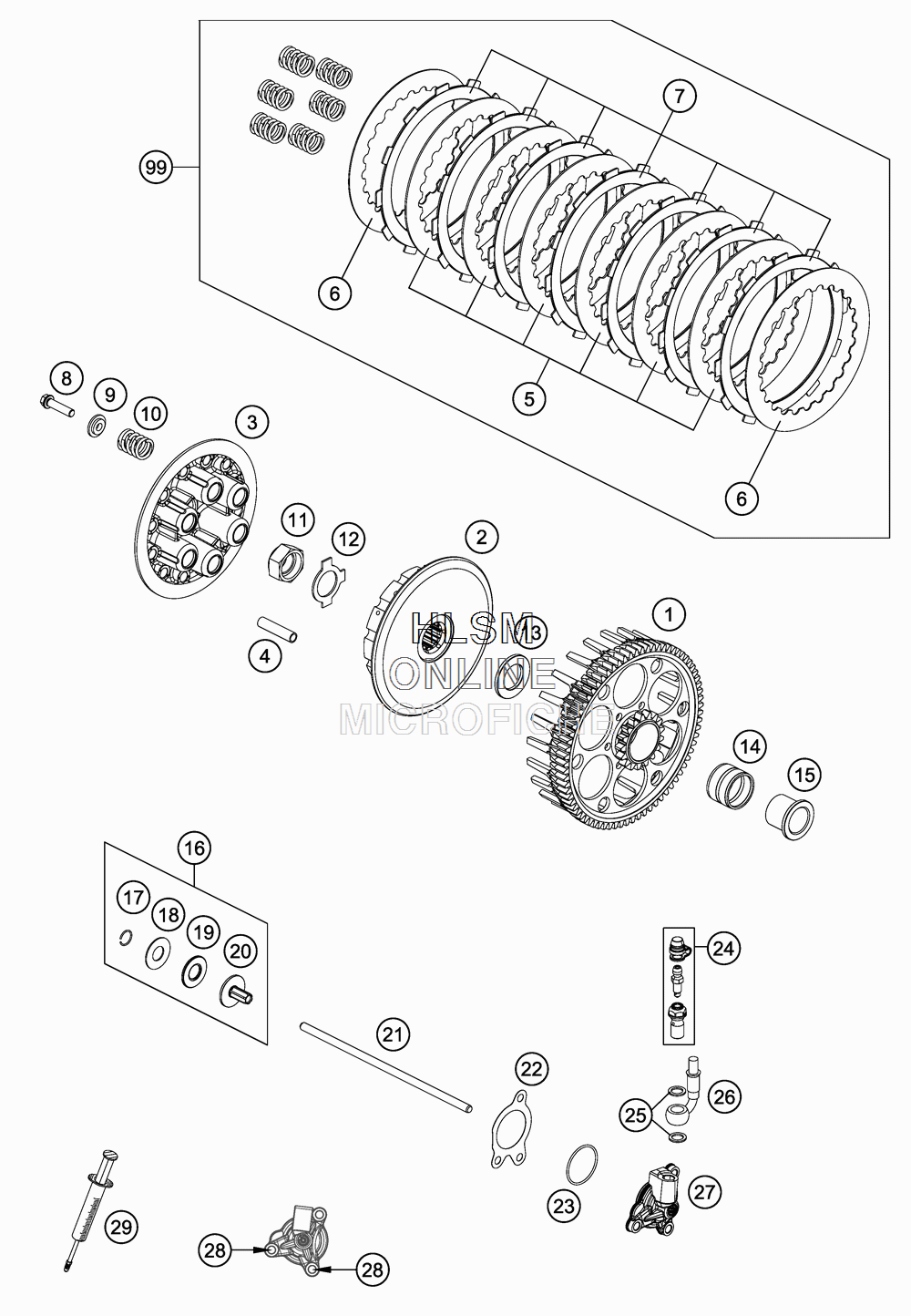

CLUTCH для Ktm 250 SXF - 2016 года выпуска`

№

Артикул

Название
1

79232001073 CLUTCH CAGE

CLUTCH CAGE

56 980 ₽
2

79232002000 CLUTCH HUB

CLUTCH HUB

26 960 ₽
3

79232003000 PRESSURE CAP

PRESSURE CAP

9 960 ₽
4

79232004000 SLEEVE 7.95X35

SLEEVE 7.95X35

850 ₽
5

59032010200 INTERMEDIATE DISC 1,4MM

INTERMEDIATE DISC 1,4MM

2 510 ₽
6

59032010100 INTERMEDIATE DISC 1MM

INTERMEDIATE DISC 1MM

2 250 ₽
7

59032011100 LINING DISC 2MM

LINING DISC 2MM

6 050 ₽
8

0025060256 HH COLLAR SCREW M6X25

HH COLLAR SCREW M6X25

560 ₽
9

59032006000 SPRING RETAINER 6,2X12X18X3,6

SPRING RETAINER 6,2X12X18X3,6

470 ₽
10

79232005000 CLUTCH SPRING

CLUTCH SPRING

880 ₽
11

77232019000 HEXAGON NUT M18X1,5

HEXAGON NUT M18X1,5

1 580 ₽
12

77232018000 SHEET METAL LOCK

SHEET METAL LOCK

1 580 ₽
13

77232009100 WASHER 21,8 X 37 X 3

WASHER 21,8 X 37 X 3

2 310 ₽
14

56532095000 NEEDLE BEARING K26X30X22ZW.KSE

NEEDLE BEARING K26X30X22ZW.KSE

6 430 ₽
15

77232015000 INNER RING

INNER RING

7 830 ₽
16

78032057044 PRESSURE PIECE CPL.

PRESSURE PIECE CPL.

6 020 ₽
17

0993012000 CIRCLIP DIN7993-RW12

CIRCLIP DIN7993-RW12

590 ₽
18

54637098200 AXIAL WASHER AS1226 12X26X1

AXIAL WASHER AS1226 12X26X1

1 380 ₽
19

54637097200 AXIAL NEEDLE BEARING AXK 1226

AXIAL NEEDLE BEARING AXK 1226

2 750 ₽
20

78032057000 PRESSURE PIECE

PRESSURE PIECE

6 370 ₽
21

79232054000 PUSH ROD

PUSH ROD

4 240 ₽
22

79232065000 GASKET FOR OUTPUT CYLINDER

GASKET FOR OUTPUT CYLINDER

1 640 ₽
23

0770300015 O-RING 30,00X1,50 NBR 70

O-RING 30,00X1,50 NBR 70

410 ₽
24

79032064000 BLEEDER SCREW CPL.

BLEEDER SCREW CPL.

8 180 ₽
25

0603080161 COPPER GASKET

COPPER GASKET

290 ₽
26

79232063000 CLUTCH PIPE

CLUTCH PIPE

30 370 ₽
27

79232061044 OUTPUT CYLINDER CPL.

OUTPUT CYLINDER CPL.

43 810 ₽
28

0025060166 HH COLLAR SCREW M6X16

HH COLLAR SCREW M6X16

500 ₽
29

50329050000 VENT INJEKTION HYDR. CLUTCH

VENT INJEKTION HYDR. CLUTCH

14 520 ₽
99

79232010010 CLUTCH KIT

CLUTCH KIT

48 650 ₽
