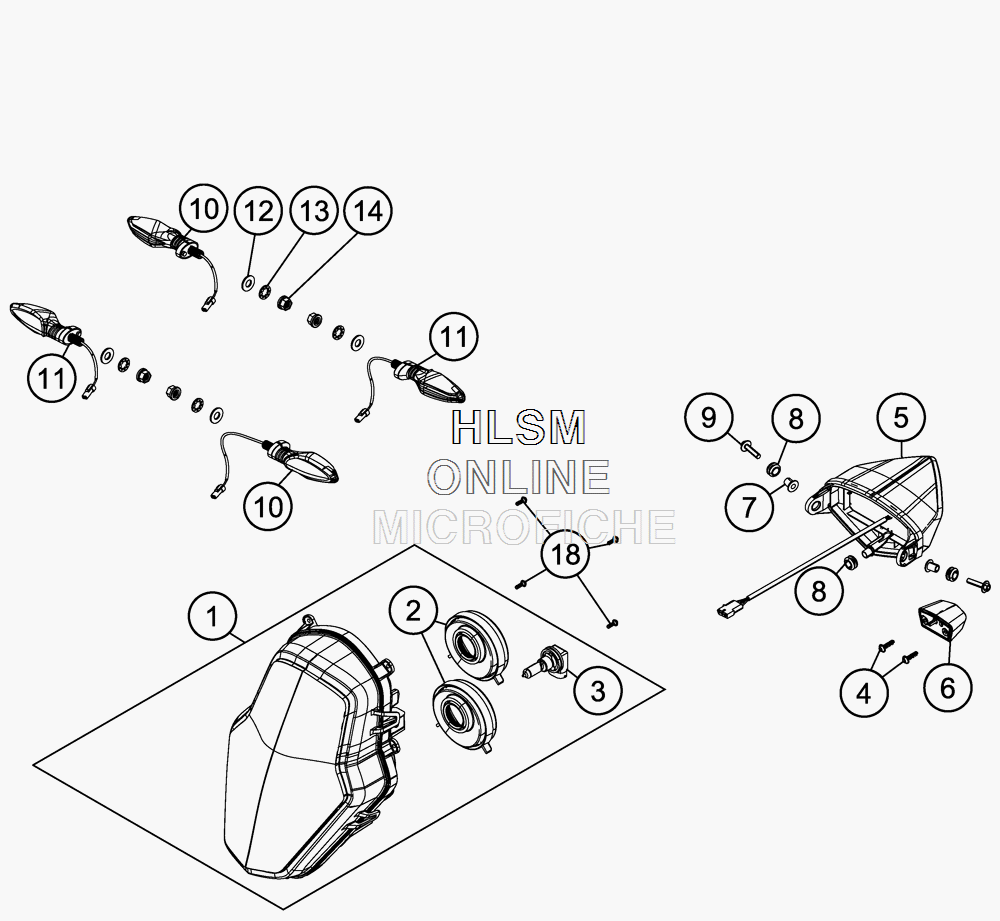

LIGHTING SYSTEM для Ktm 1190 ADVENTURE R ABS - 2016 года выпуска
-
№АртикулНазвание
-
160314001100 HEAD LIGHT TFLHEAD LIGHT TFL
-
260314001050 CAP H11CAP H11
-
360314003000 LAMP H11 12V 55WLAMP H11 12V 55W
-
40081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
560314040000 REAR LIGHTREAR LIGHT
-
660314047000 NUMBER PLATE LIGHTNUMBER PLATE LIGHT
-
760308006000 COLLAR BUSHING 6,2X9,2X15X12,5COLLAR BUSHING 6,2X9,2X15X12,5
-
860006001022 RUB.SLEEVE FLOAT CHAMB.VENTINGRUB.SLEEVE FLOAT CHAMB.VENTING
-
90024060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1060314025000 FLASHER L/SFLASHER L/S
-
1160314026000 FLASHER R/SFLASHER R/S
-
120433100003 WASHER 18X10,5X1,6WASHER 18X10,5X1,6
-
130797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
1458414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
180081045121 SCREW FOR PLASTIC K45X12SCREW FOR PLASTIC K45X12
