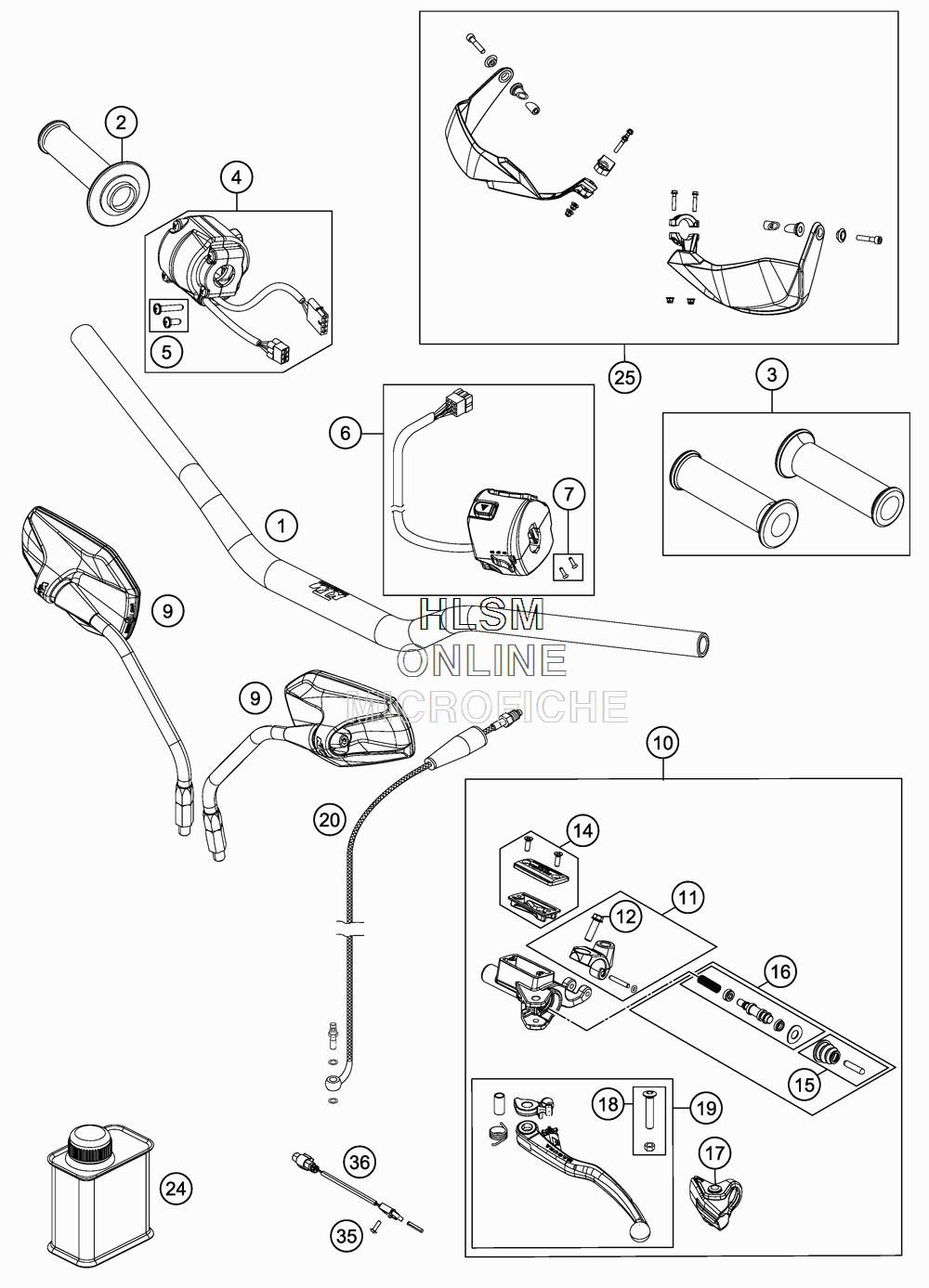

HANDLEBAR CONTROLS для Ktm 1190 ADVENTURE ABS GREY - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    60302001000 HANDLEBAR
    HANDLEBAR
  • 2
    76002010000 THROTTLE GRIP
    THROTTLE GRIP
  • 3
    76002021000 GRIP SET OPEN END
    GRIP SET OPEN END
  • 4
    76011073100 START-STOP/E-GAS
    START-STOP/E-GAS
  • 5
    76011073110 SCREW SET ST AR T -STOP SWITCH
    SCREW SET ST AR T -STOP SWITCH
  • 6
    60311070100 HANDLEBAR SWITCH
    HANDLEBAR SWITCH
  • 7
    60311070110 SCREW SET HANDLEBAR SWITCH
    SCREW SET HANDLEBAR SWITCH
  • 9
    60312040000 MIRROR
    MIRROR
  • 10
    60302030144 MASTER CYLINDER DOT CPL. 12MM
    MASTER CYLINDER DOT CPL. 12MM
  • 11
    76513005000 CLAMP, CYL. PIN, O-RING
    CLAMP, CYL. PIN, O-RING
  • 12
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 14
    25002033000 COVER HYDR. CLUTCH DOT CPL.
    COVER HYDR. CLUTCH DOT CPL.
  • 15
    76502046000 PUSH ROD CPL.
    PUSH ROD CPL.
  • 16
    60302032100 REP AIR KIT PISTONS DOT
    REP AIR KIT PISTONS DOT
  • 17
    76502037000 PROTECT.CAP FOR LEVER PERCH 13
    PROTECT.CAP FOR LEVER PERCH 13
  • 18
    50302038200 LEVER SCREW SHORT CPL.
    LEVER SCREW SHORT CPL.
  • 19
    60302031000 CLUTCH LEVER LONG CPL. 2013
    CLUTCH LEVER LONG CPL. 2013
  • 20
    60032063100 CLUTCH PIPE LC8 ADV
    CLUTCH PIPE LC8 ADV
  • 24
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
  • 25
    6030217910030 HANDGUARD CLOSED BLACK
    HANDGUARD CLOSED BLACK
  • 35
    0985030103 FLA T HEAD SCREW DIN7985 M3X1
    FLA T HEAD SCREW DIN7985 M3X1
  • 36
    83111049000 CLUTCH SWITCH ATV
    CLUTCH SWITCH ATV
