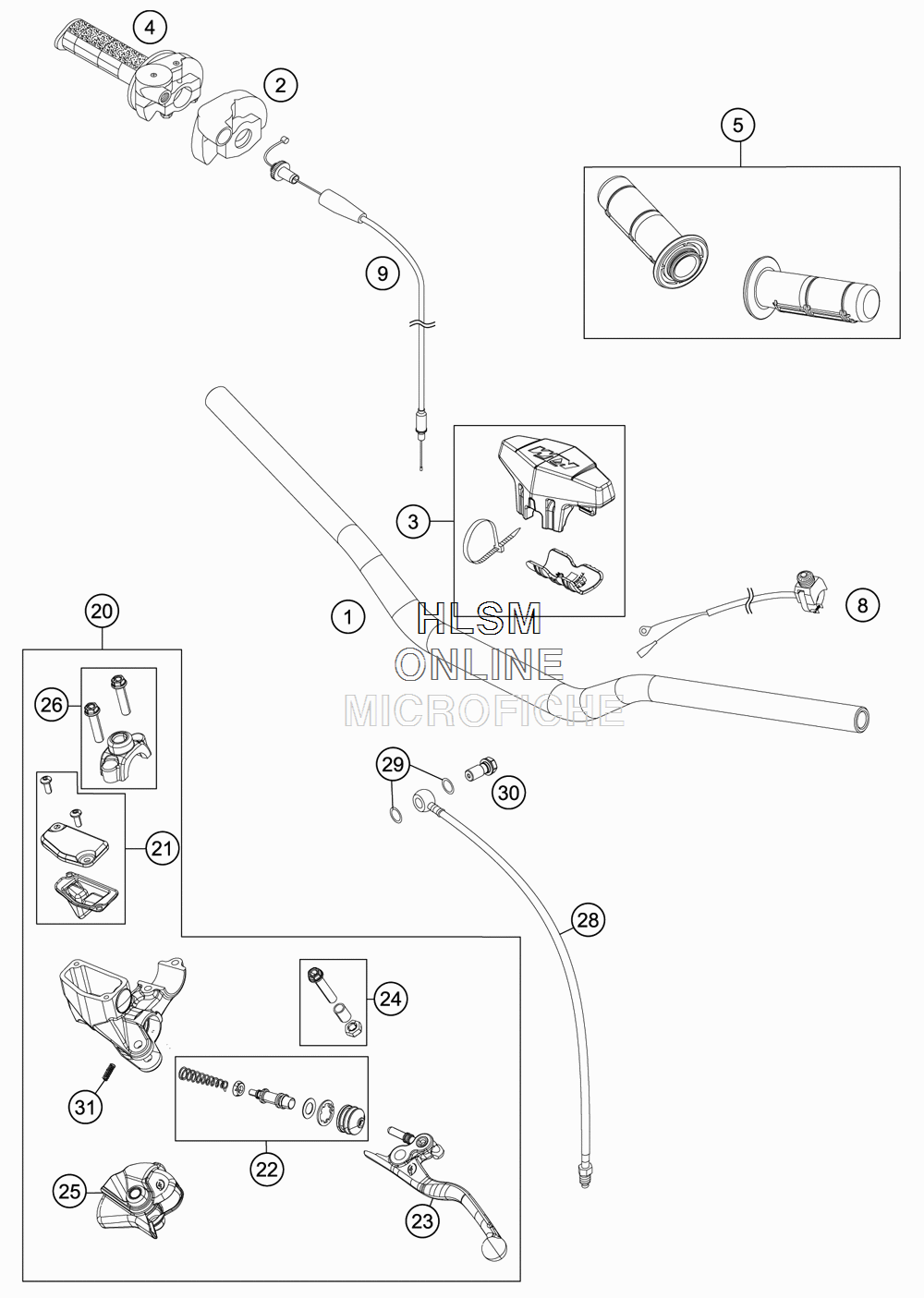

HANDLEBAR - CONTROLS для Ktm 85 SX - 2015 года выпуска`
-
№АртикулНазвание
-
147102001000 HANDLEBARHANDLEBAR
-
250302020000 PROTECTION COVERPROTECTION COVER
-
377202002144 BAR PAD CPL.BAR PAD CPL.
-
451502010200 THROTTLE GRIP CPL. 2ST .THROTTLE GRIP CPL. 2ST .
-
563002021100 GRIP SET DUAL COMPOUNDGRIP SET DUAL COMPOUND
-
850311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
951502091200 THROTTLE CABLE 2-ST . 2014THROTTLE CABLE 2-ST . 2014
-
2072002030100 MASTER CYLINDER CPL. 10MMMASTER CYLINDER CPL. 10MM
-
2172002003000 COVER F . MASTER CYLINDER CPL.COVER F . MASTER CYLINDER CPL.
-
2272002032000 REP . KIT PISTON 10MMREP . KIT PISTON 10MM
-
2372013002000 LEVER CPL.LEVER CPL.
-
2470002038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
2572002037000 MUD COVER CLUTCH LEVERMUD COVER CLUTCH LEVER
-
2672013005000 CLAMPCLAMP
-
2847132063000 CLUTCH PIPECLUTCH PIPE
-
290770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
3047013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
3172002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
