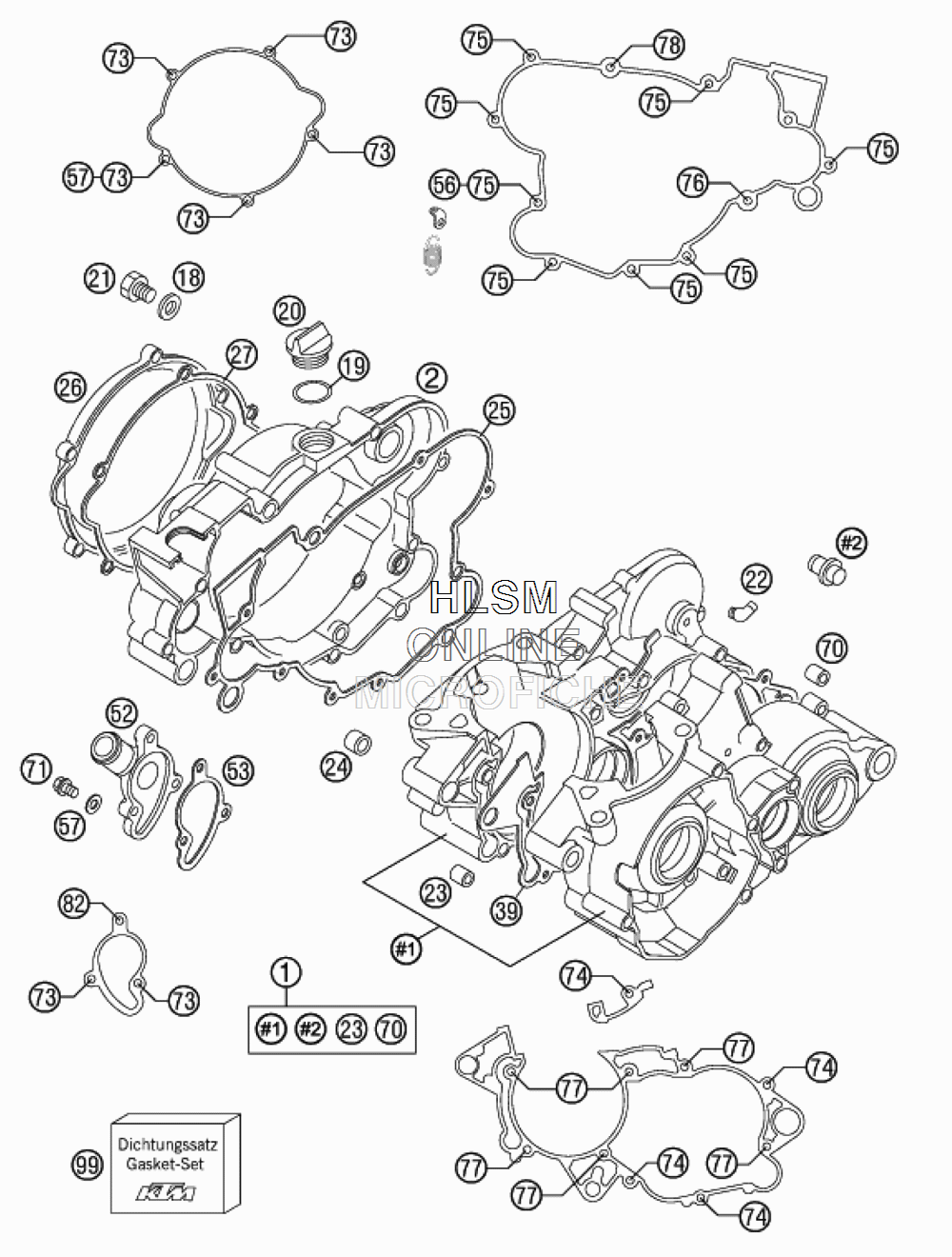

ENGINE CASE для Ktm 85 SX 17/14 - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    47030000144 ENGINE CASE CPL.
    ENGINE CASE CPL.
  • 2
    47030001100 CLUTCH COVER CPL.
    CLUTCH COVER CPL.
  • 18
    0603101420 COPPER GASKET 10,2X14X2 MM
    COPPER GASKET 10,2X14X2 MM
  • 19
    0770160030 O-RING 16,00X3,00 NBR 70
    O-RING 16,00X3,00 NBR 70
  • 20
    58030120000 OIL FILLER CAP M24X3 WITH O-RING
    OIL FILLER CAP M24X3 WITH O-RING
  • 21
    46030021100 OIL DRAIN PLUG M10 WS=13
    OIL DRAIN PLUG M10 WS=13
  • 22
    45130022000 ANGLE PIECE 50CCM LC
    ANGLE PIECE 50CCM LC
  • 23
    47030023100 DOWEL 13X13
    DOWEL 13X13
  • 24
    45130023000 DOWEL 7X9X10
    DOWEL 7X9X10
  • 25
    47030025000 INNER CLUTCH COVER GASKET
    INNER CLUTCH COVER GASKET
  • 26
    47030026000 CLUTCH COVER OUTSIDE
    CLUTCH COVER OUTSIDE
  • 27
    47030027100 GASKET FOR OUTER CLUTCH COVER
    GASKET FOR OUTER CLUTCH COVER
  • 39
    47030039000 GASKET F . ENGINE CASE
    GASKET F . ENGINE CASE
  • 52
    47035052000 WATER PUMP COVER
    WATER PUMP COVER
  • 53
    47035053000 GASKET FOR WATER PUMP COVER
    GASKET FOR WATER PUMP COVER
  • 56
    47003071000 SPRING HOLDER
    SPRING HOLDER
  • 57
    0603061001 CU-SEAL RING DIN7603-6X10X 1
    CU-SEAL RING DIN7603-6X10X 1
  • 70
    47030023000 DOWEL 14,5X19
    DOWEL 14,5X19
  • 71
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 73
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 74
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 75
    0015060303 HH COLLAR SCREW M 6X30 SW=8
    HH COLLAR SCREW M 6X30 SW=8
  • 76
    0025060356 HH COLLAR SCREW M6X35 TX30
    HH COLLAR SCREW M6X35 TX30
  • 77
    0025060406 HH COLLAR SCREW M6X40 TX30
    HH COLLAR SCREW M6X40 TX30
  • 78
    0025060456 HH COLLAR SCREW M6X45 TX30
    HH COLLAR SCREW M6X45 TX30
  • 82
    0015060653 HH COLLAR SCREW M 6X65 WS=8
    HH COLLAR SCREW M 6X65 WS=8
  • 99
    47030099100 GASKET SET CPL.
    GASKET SET CPL.
