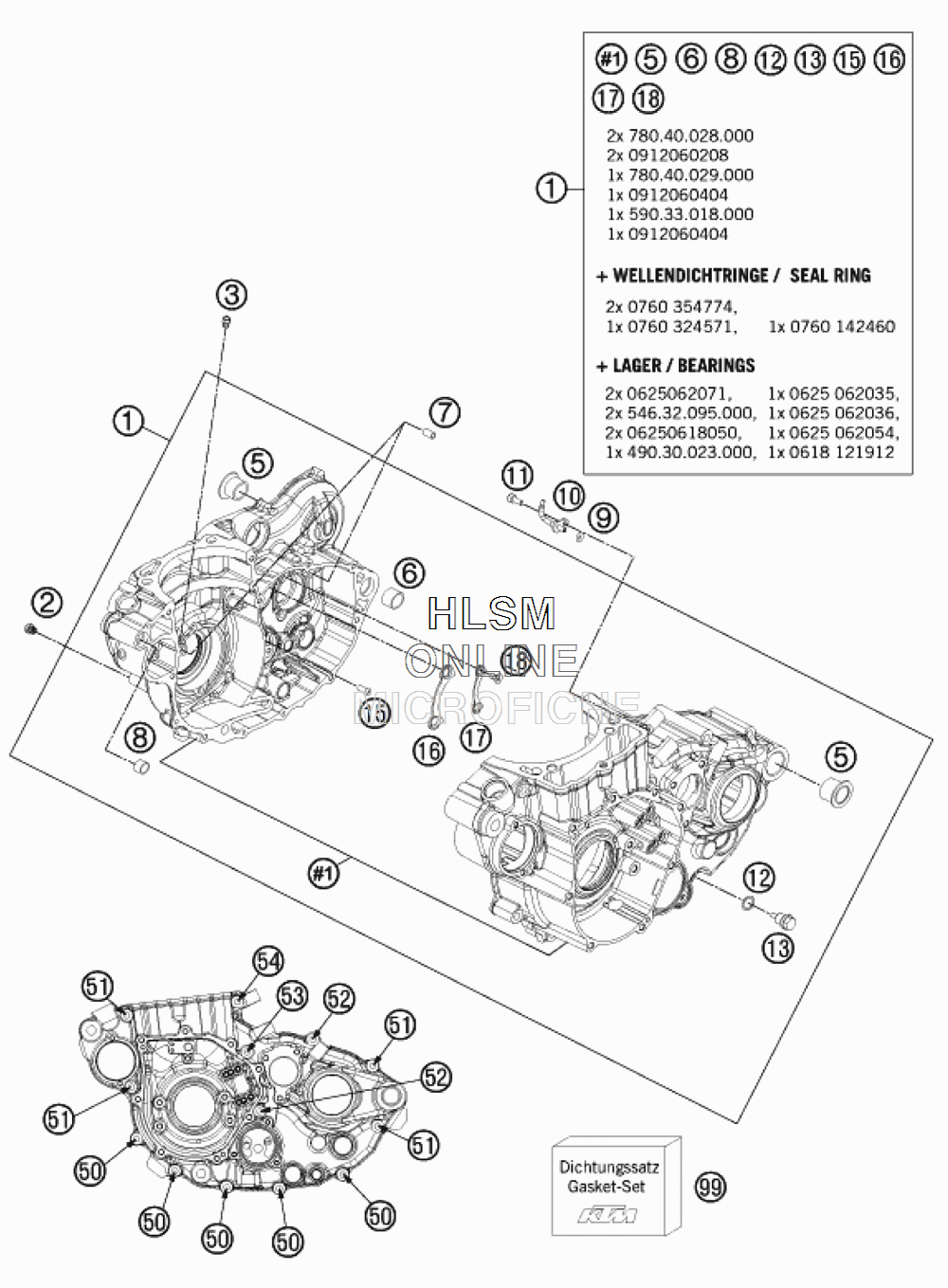

ENGINE CASE для Ktm 500 XCW - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    78130000033 ENGINE CASE CPL.
    ENGINE CASE CPL.
  • 2
    57031523145 MAIN JET 145
    MAIN JET 145
  • 3
    60030063070 OIL JET 70 M5
    OIL JET 70 M5
  • 5
    75030010100 CASE BUSH
    CASE BUSH
  • 6
    54830027000 DOWEL 21X12 03
    DOWEL 21X12 03
  • 7
    59030023000 DOWEL 6X8X11,5
    DOWEL 6X8X11,5
  • 8
    51030026100 DOWEL 17 X 13 X 12
    DOWEL 17 X 13 X 12
  • 9
    0770035020 O-RING 3,5X2,00 NBR
    O-RING 3,5X2,00 NBR
  • 10
    81230064000 OIL JET ANGLED 70
    OIL JET ANGLED 70
  • 11
    0912040103 AH.SCREW DIN0912-M 4X10
    AH.SCREW DIN0912-M 4X10
  • 12
    58038022000 CU-SEAL RING DIN7603-12X18 X1,5
    CU-SEAL RING DIN7603-12X18 X1,5
  • 13
    58030021000 OIL DRAIN PLUG W .MAG. M 12X1,5
    OIL DRAIN PLUG W .MAG. M 12X1,5
  • 15
    0018050103 INT . TORX OV AL HEAD M 5X10 8.8
    INT . TORX OV AL HEAD M 5X10 8.8
  • 16
    78033032000 TAB WASHER BEARING MAIN SHAFT
    TAB WASHER BEARING MAIN SHAFT
  • 17
    78033132000 TAB WASHER BEARING COUNTERSHAFT
    TAB WASHER BEARING COUNTERSHAFT
  • 18
    0019050121S INT . TORX FLAT HEAD M5X12 T25
    INT . TORX FLAT HEAD M5X12 T25
  • 50
    0025060406 HH COLLAR SCREW M6X40 TX30
    HH COLLAR SCREW M6X40 TX30
  • 51
    0025060606 HH COLLAR SCREW M6X60 TX30
    HH COLLAR SCREW M6X60 TX30
  • 52
    0025060756 HH COLLAR SCREW M6X75 TX30
    HH COLLAR SCREW M6X75 TX30
  • 53
    0025060806 HH COLLAR SCREW M6X80 TX30
    HH COLLAR SCREW M6X80 TX30
  • 54
    0025060856 HH COLLAR SCREW M6X85 TX30
    HH COLLAR SCREW M6X85 TX30
  • 99
    78130099000 GASKET SET
    GASKET SET
