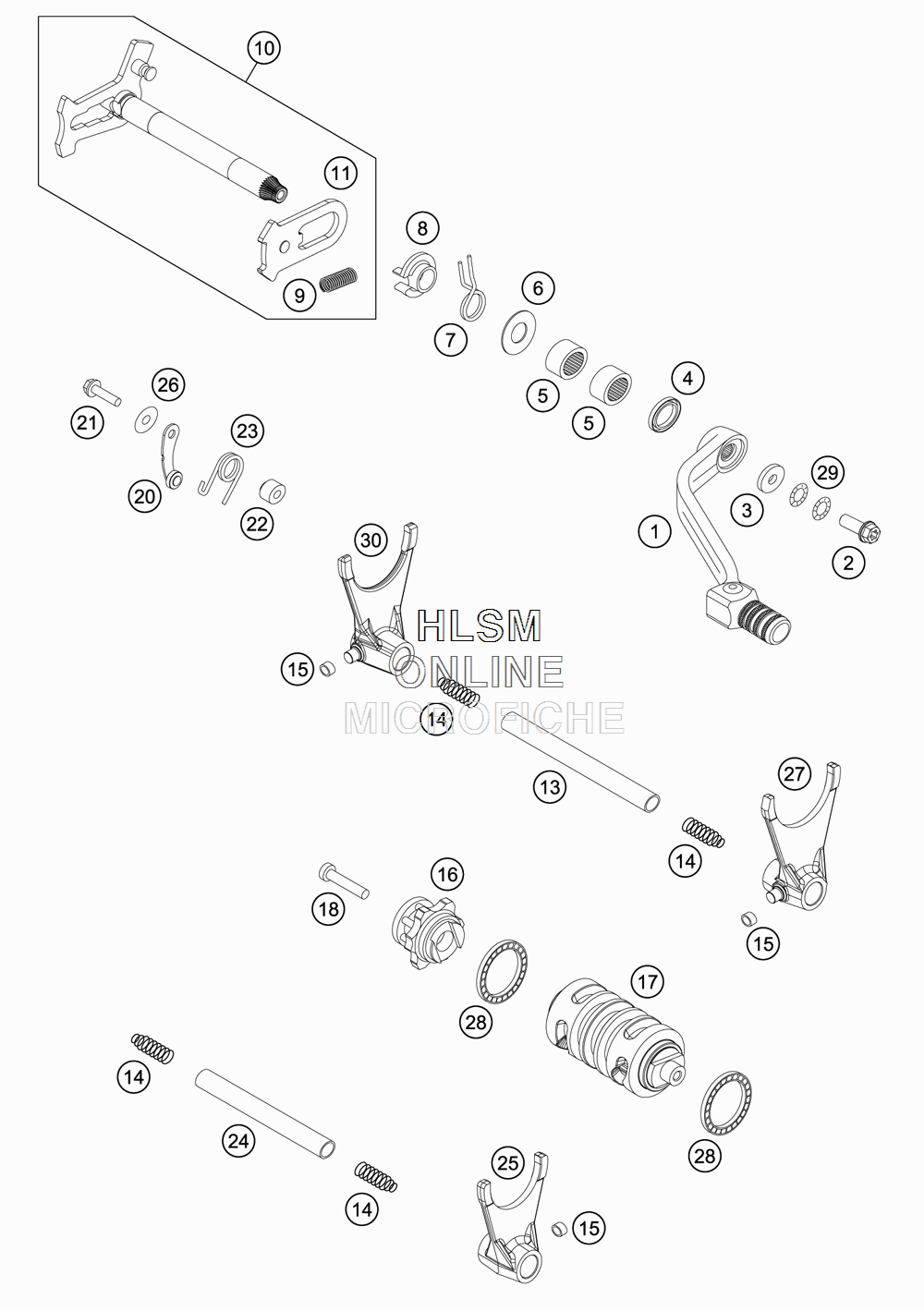

SHIFTING MECHANISM для Ktm 500 EXC - 2015 года выпуска`
-
№АртикулНазвание
-
159034031000 SHIFT LEVER CPL.RACINGSHIFT LEVER CPL.RACING
-
20025060166S HH COLLAR SCREW M6X16 ISA 30HH COLLAR SCREW M6X16 ISA 30
-
350232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
40760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
554632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
654634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
754634014100 RETURN SPRING 2,2MMRETURN SPRING 2,2MM
-
854634020000 SPRING GUIDESPRING GUIDE
-
956534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
1078034005233 SHIFT SHAFT CPL. ASSYSHIFT SHAFT CPL. ASSY
-
1154634008044 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
1378034020000 SHIFT RAIL 11,8X101,5SHIFT RAIL 11,8X101,5
-
1458038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
1550334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
1678134015044 SHIFT DRUM LOCATING ALU CPL.SHIFT DRUM LOCATING ALU CPL.
-
1778034012000 SHIFT ROLLERSHIFT ROLLER
-
180012060303 AH SCREW DIN6912 M6X30 8.8AH SCREW DIN6912 M6X30 8.8
-
2078134024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
210025050206 HH COLLAR SCREW M5X20 TX30HH COLLAR SCREW M5X20 TX30
-
2254634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
2360034023000 ARRESTING LEVER SPRINGARRESTING LEVER SPRING
-
2478034019000 SHIFT RAIL 11,8X85SHIFT RAIL 11,8X85
-
2559034001100 SHIFTING FORK 5./6. GEARSHIFTING FORK 5./6. GEAR
-
260021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
2759034002100 SHIFTING FORK 2./4. GEARSHIFTING FORK 2./4. GEAR
-
280625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2950233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
3078034003100 SHIFTING FORK 1ST/3RD GEARSHIFTING FORK 1ST/3RD GEAR
