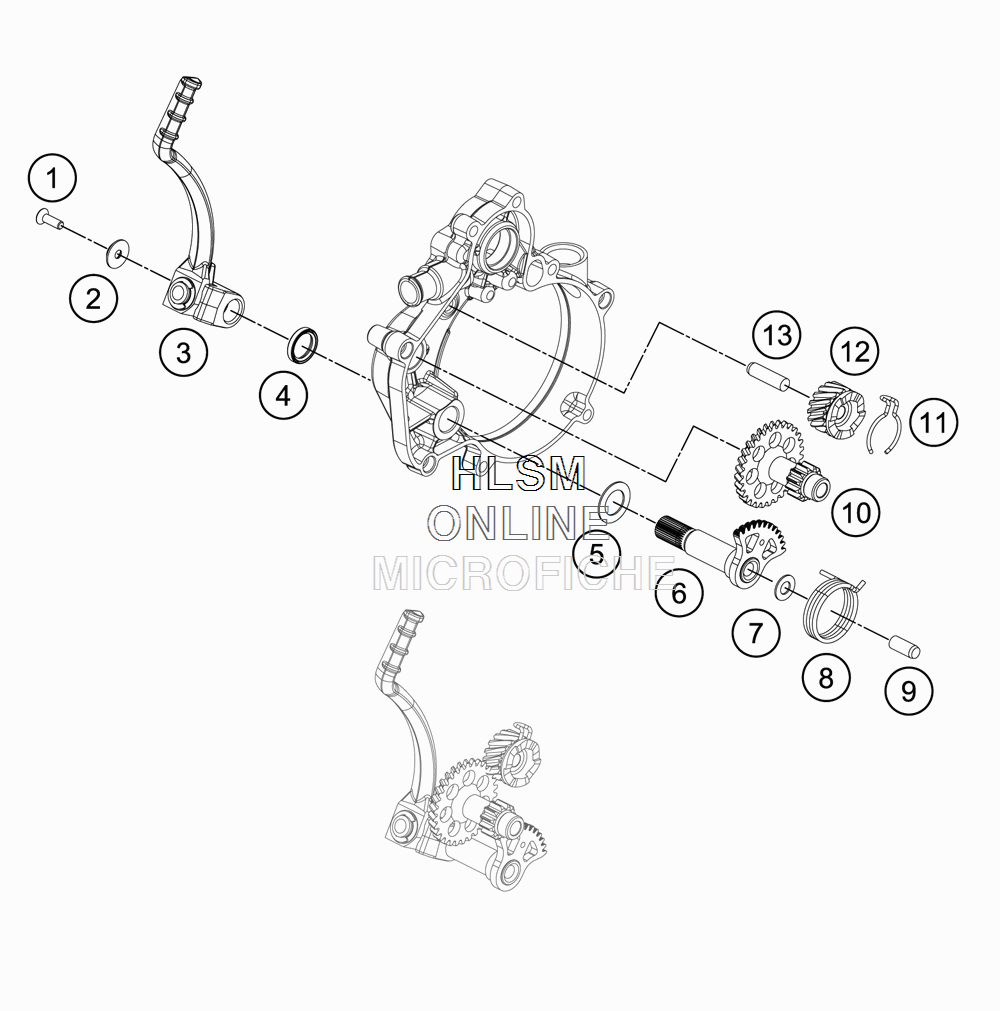

KICKSTARTER для Ktm 50 SX - 2015 года выпуска`
-
№АртикулНазвание
-
10019050163S INT . TORX FLAT HEAD M5X16 8.8INT . TORX FLAT HEAD M5X16 8.8
-
260008045100 SPECIAL WASHER FORSPECIAL WASHER FOR
-
345233070044 KICKSTARTER CPL.KICKSTARTER CPL.
-
40760162240 SHAFT SEAL RING BALANC. SHAFTSHAFT SEAL RING BALANC. SHAFT
-
545233058000 WASHER 16,3X25,8X1WASHER 16,3X25,8X1
-
645233050044 KICKSTART SHAFT CPL.KICKSTART SHAFT CPL.
-
745233057000 WASHER 8,2X16X1WASHER 8,2X16X1
-
845233054000 KICKSTARTER SPRINGKICKSTARTER SPRING
-
90325080200 CYLINDER STUD DIN6325 8X20 M6CYLINDER STUD DIN6325 8X20 M6
-
1045233053000 KICKSTARTER SHAFTKICKSTARTER SHAFT
-
1145233056100 SPRING RATCHET GEARSPRING RATCHET GEAR
-
1245233052016 RATCHET GEARRATCHET GEAR
-
130325080300 CYLINDER STUD DIN6325 8X30 M6CYLINDER STUD DIN6325 8X30 M6
