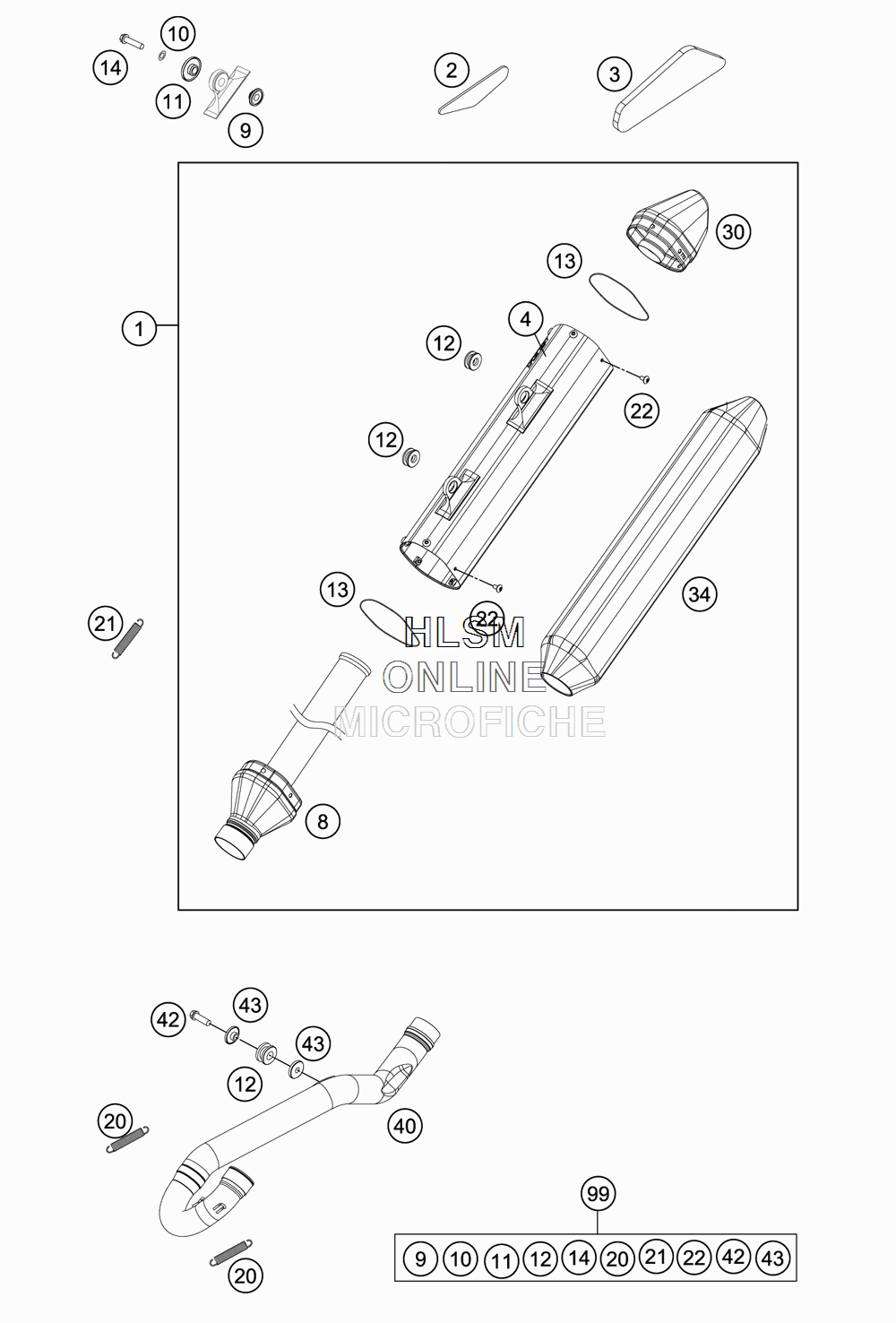

EXHAUST SYSTEM для Ktm 450 XCF - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    77705079000 SILENCER
    SILENCER
  • 2
    77308013050 THERMAL PROTECTION FOIL
    THERMAL PROTECTION FOIL
  • 3
    77208013050 THERMAL PROTECTION FOIL
    THERMAL PROTECTION FOIL
  • 4
    77705079080 SILENCER HOUSING
    SILENCER HOUSING
  • 8
    77705079050 CONNECTING CAP CPL.
    CONNECTING CAP CPL.
  • 9
    77205069000 BUSHING 7.5X12X20X8.2
    BUSHING 7.5X12X20X8.2
  • 10
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 11
    77205169000 BUSHING 7.5X12X28X8.3 11
    BUSHING 7.5X12X28X8.3 11
  • 12
    77205068000 DAMP . COMPON. (BLACK)
    DAMP . COMPON. (BLACK)
  • 13
    0770740015 O-RING 74,00X1,50 FKM 75SH
    O-RING 74,00X1,50 FKM 75SH
  • 14
    0025060356 HH COLLAR SCREW M6X35 TX30
    HH COLLAR SCREW M6X35 TX30
  • 20
    50305016000 TEN.SPRING L=62MM EY .MOVEABLE
    TEN.SPRING L=62MM EY .MOVEABLE
  • 21
    50305116000 TEN.SPRING L=75MM EY .MOVEABLE
    TEN.SPRING L=75MM EY .MOVEABLE
  • 22
    78105081010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 30
    77705079060 END CAP CPL.
    END CAP CPL.
  • 34
    77705078640 ROCK WOOL PREFORMED
    ROCK WOOL PREFORMED
  • 40
    78905007000 EXHAUST
    EXHAUST
  • 42
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 43
    59405069000 BUSHING FOR EXHAUST SUPPORT
    BUSHING FOR EXHAUST SUPPORT
  • 99
    00050000815 EXHAUST PARTS KIT
    EXHAUST PARTS KIT
