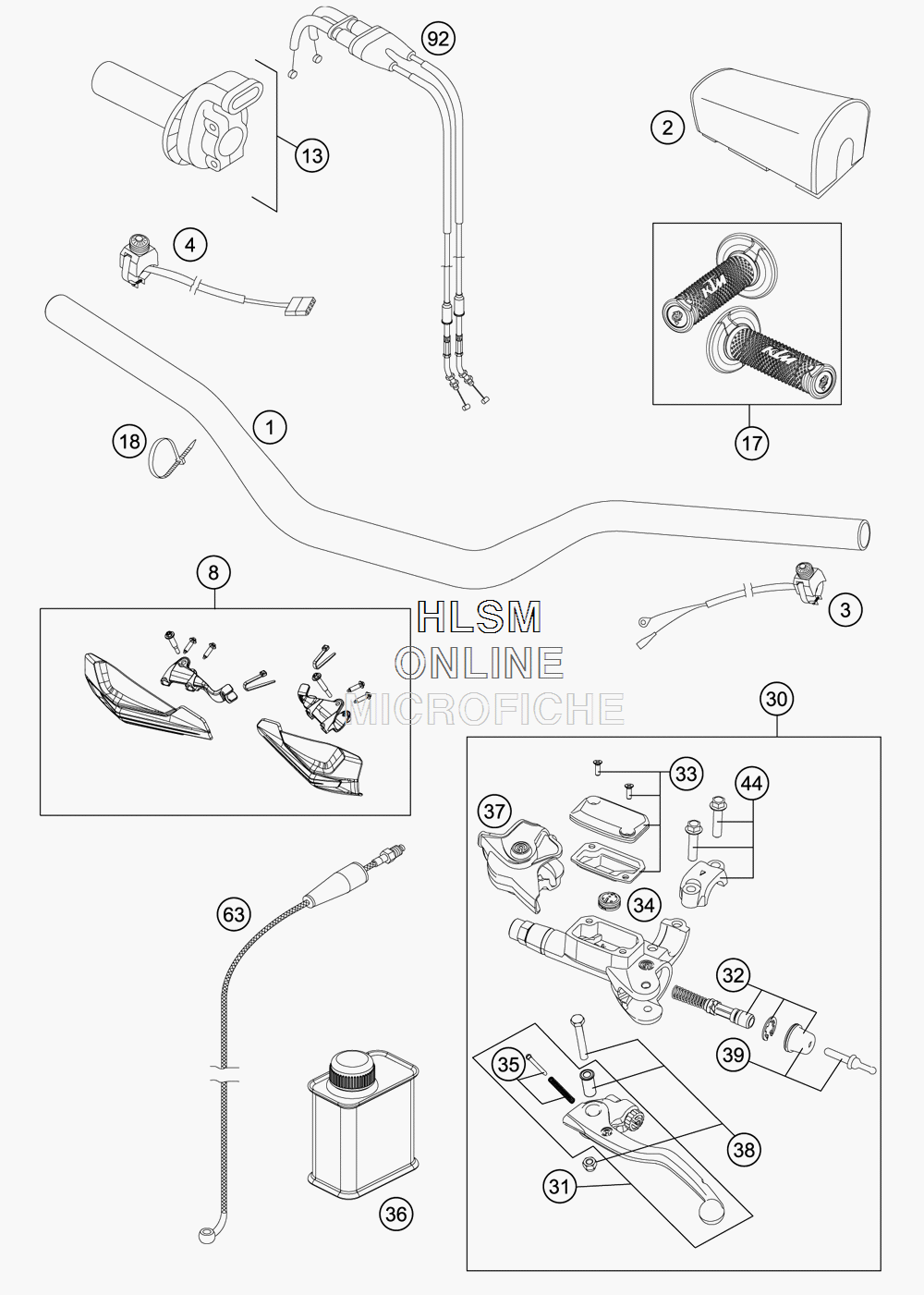

HANDLEBAR CONTROLS для Ktm 350 XCF - 2015 года выпуска`
-
№АртикулНазвание
-
17770200110030 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
277702002100 BAR PAD NEKENBAR PAD NEKEN
-
350311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
478111074000 STARTER BUTTON (GREY)STARTER BUTTON (GREY)
-
87770207900004 HANDGUARDS CPL. L+R (ORANGE)HANDGUARDS CPL. L+R (ORANGE)
-
1378102010000 THROTTLE GRIP CPL.THROTTLE GRIP CPL.
-
1778102021000 GRIP SETGRIP SET
-
1844011076200 CABLE TIE 200/3,6MM (BLACK)CABLE TIE 200/3,6MM (BLACK)
-
1844011076140 CABLE TIE 140/2,5MM (BLACK)CABLE TIE 140/2,5MM (BLACK)
-
3054802030144 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
3154802031000 CLUTCH LEVER CPL. BREMBOCLUTCH LEVER CPL. BREMBO
-
3254802032000 REP . KIT PISTONREP . KIT PISTON
-
335480200310030 COVER HYD. CLUTCH CPL.COVER HYD. CLUTCH CPL.
-
3454802051000 VALVEVALVE
-
3554802052000 BOLT CPL.BOLT CPL.
-
3600062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
-
3754802037000 PROTECTION CAPPROTECTION CAP
-
3854802038100 LEVER SCREW CPL.LEVER SCREW CPL.
-
3954802046000 PUSH ROD CPL.PUSH ROD CPL.
-
4454802005100 CLAMP CPL.CLAMP CPL.
-
6354832063000 CLUTCH PIPECLUTCH PIPE
-
9278102091000 THROTTLE CABLE 4T.THROTTLE CABLE 4T.
