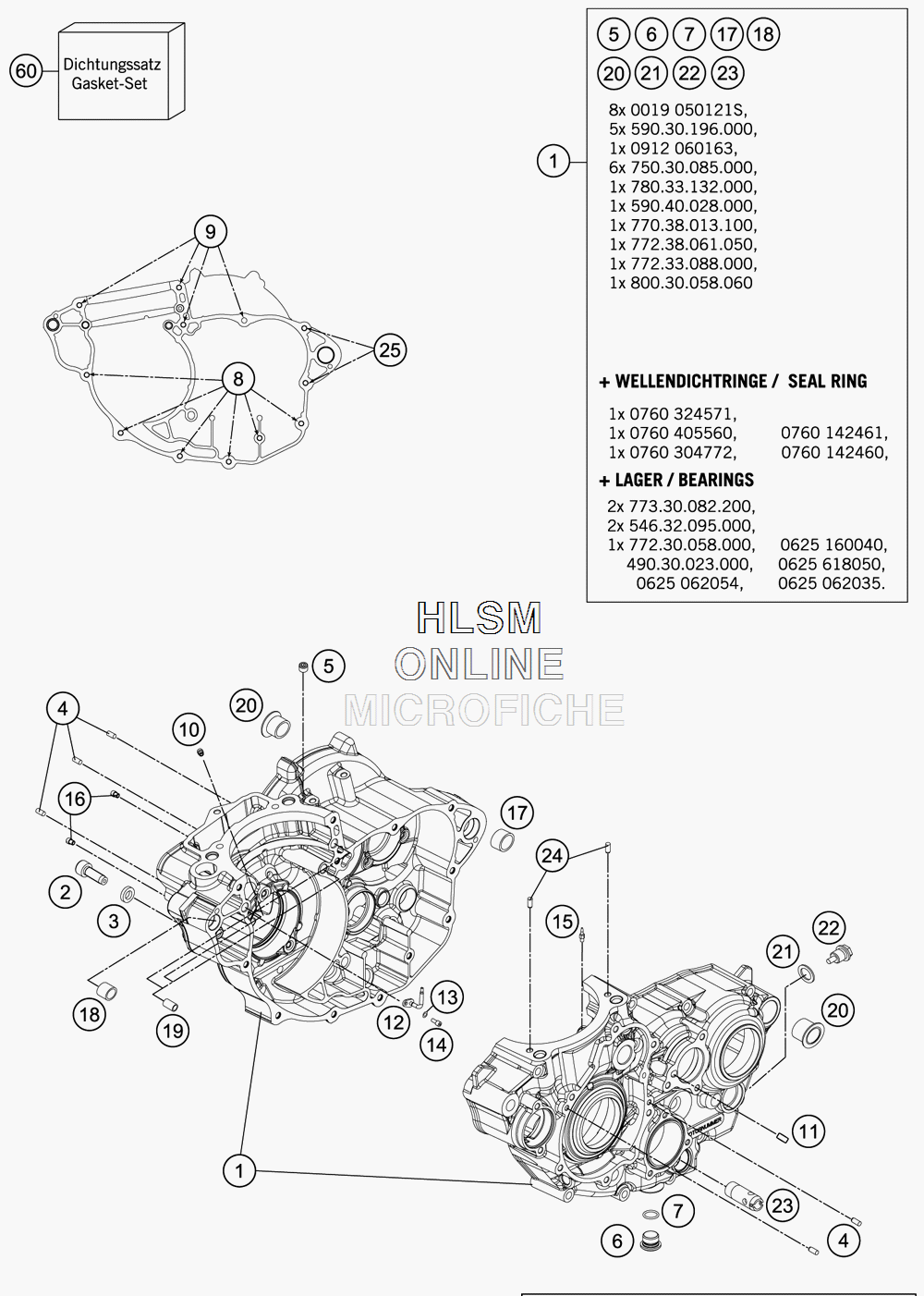

ENGINE CASE для Ktm 350 XCF - 2015 года выпуска`

№

Артикул

Название
1

77730100033 ENGINE CASE CPL.

ENGINE CASE CPL.

340 ₽
2

58030080000 LOCATING SCREW M8 L=23

LOCATING SCREW M8 L=23

3 380 ₽
3

58030081000 CU-SEAL RING 8 X 14 X 3

CU-SEAL RING 8 X 14 X 3

410 ₽
4

0402040980 NEEDLE ROL.DIN540 2 NRB 4X9,8

NEEDLE ROL.DIN540 2 NRB 4X9,8

560 ₽
5

0906100100 PLUG DIN0906-M10X1

PLUG DIN0906-M10X1

850 ₽
6

78036081000 HOLDING BOLT M14X1,5

HOLDING BOLT M14X1,5

1 960 ₽
7

0770110015 O-RING 1,5X11 SILICON

O-RING 1,5X11 SILICON

1 140 ₽
8

0025060556 HH COLLAR SCREW M6X55 TX30

HH COLLAR SCREW M6X55 TX30

700 ₽
9

0025060656 HH COLLAR SCREW M6X65 TX30

HH COLLAR SCREW M6X65 TX30

410 ₽
10

80030058060 OIL JET "60" M4

OIL JET "60" M4

2 800 ₽
11

77230066000 THROTTLE M5X10X0,5

THROTTLE M5X10X0,5

2 600 ₽
12

77830064050 OIL JET CURVED "50"

OIL JET CURVED "50"

2 950 ₽
13

0770035020 O-RING 3,5X2,00 NBR

O-RING 3,5X2,00 NBR

60 ₽
14

0912040103 AH.SCREW DIN0912-M 4X10

AH.SCREW DIN0912-M 4X10

290 ₽
15

60030063050 OIL JET 50 05

OIL JET 50 05

2 160 ₽
16

59030058000 JET 100 BING(44-031/180) M4

JET 100 BING(44-031/180) M4

970 ₽
17

59030024000 DOWEL 17 X 19 X 12

DOWEL 17 X 19 X 12

1 230 ₽
18

54630027000 DOWEL BUSHING 13,8X11X12

DOWEL BUSHING 13,8X11X12

1 580 ₽
19

59030023000 DOWEL 6X8X11,5

DOWEL 6X8X11,5

910 ₽
20

75030010100 CASE BUSH

CASE BUSH

2 690 ₽
21

58038022000 CU-SEAL RING DIN7603-12X18 X1,5

CU-SEAL RING DIN7603-12X18 X1,5

440 ₽
22

58030021000 OILDRAIN PLUG W .MAG. M 12X1,5

OILDRAIN PLUG W .MAG. M 12X1,5

2 800 ₽
23

77038022000 OIL INTAKE PIPE

OIL INTAKE PIPE

1 580 ₽
24

0402050080 CYLINDER ROLLER ZRO 5X8

CYLINDER ROLLER ZRO 5X8

530 ₽
25

0025060856 HH COLLAR SCREW M6X85 TX30

HH COLLAR SCREW M6X85 TX30

530 ₽
60

77830099000 GASKET SET

GASKET SET

90 390 ₽
