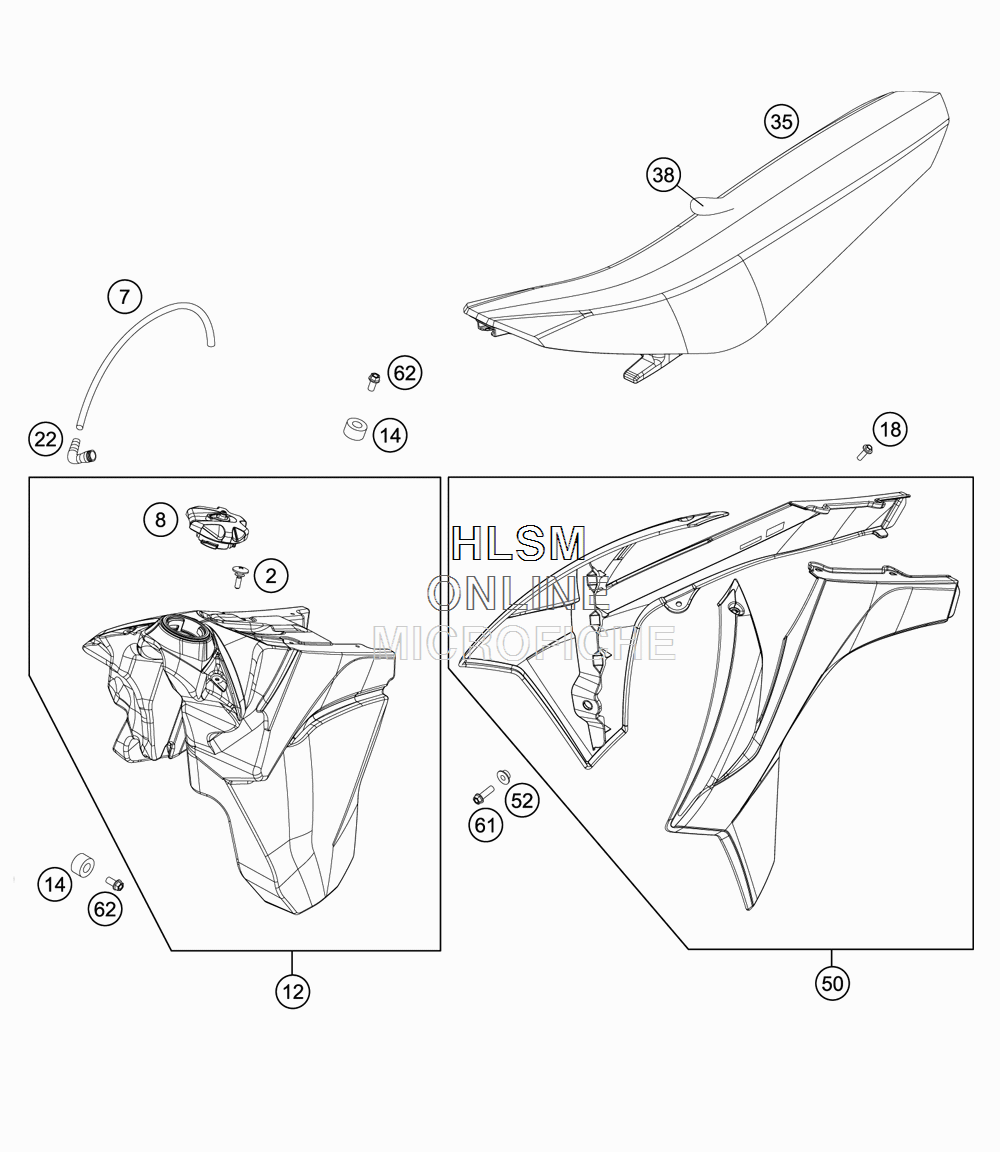

TANK - SEAT - COVER для Ktm 350 XCF-W - 2015 года выпуска`
-
№АртикулНазвание
-
277407011000 SCREW SEAT FIXING M5SCREW SEAT FIXING M5
-
778007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
878107008044X4 TANK PLUG CPL.TANK PLUG CPL.
-
127810701314499 FUEL TANK CPL. 8,5L EFI USAFUEL TANK CPL. 8,5L EFI USA
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
180014050123 HH COLLAR SCREW M 5X12 WS=6HH COLLAR SCREW M 5X12 WS=6
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
3577207040200 SEATSEAT
-
3877207040050 SEAT COVERSEAT COVER
-
507770805410028B SPOILER KIT W/DECALSPOILER KIT W/DECAL
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
610025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
620026060136 COLLAR SCREW M6X13 ISA30COLLAR SCREW M6X13 ISA30
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER
- CYLINDER HEAD
- DECAL
- ELECTRO STARTER
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- FUEL PUMP
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- INSTRUMENTS LOCK SYSTEM
- KICKSTARTER
- LIGHTING SYSTEM
- LUBRICATING SYSTEM
- MASK FENDER
- REAR BRAKE CONTROL
- REAR WHEEL
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SIDE / CENTER STAND
- SWINGARM
- • TANK - SEAT - COVER
- THROTTLE BODY
- TIMING DRIVE
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- VALVE DRIVE
- WIRING HARNESS
- WP SHIMS FOR SETTING
