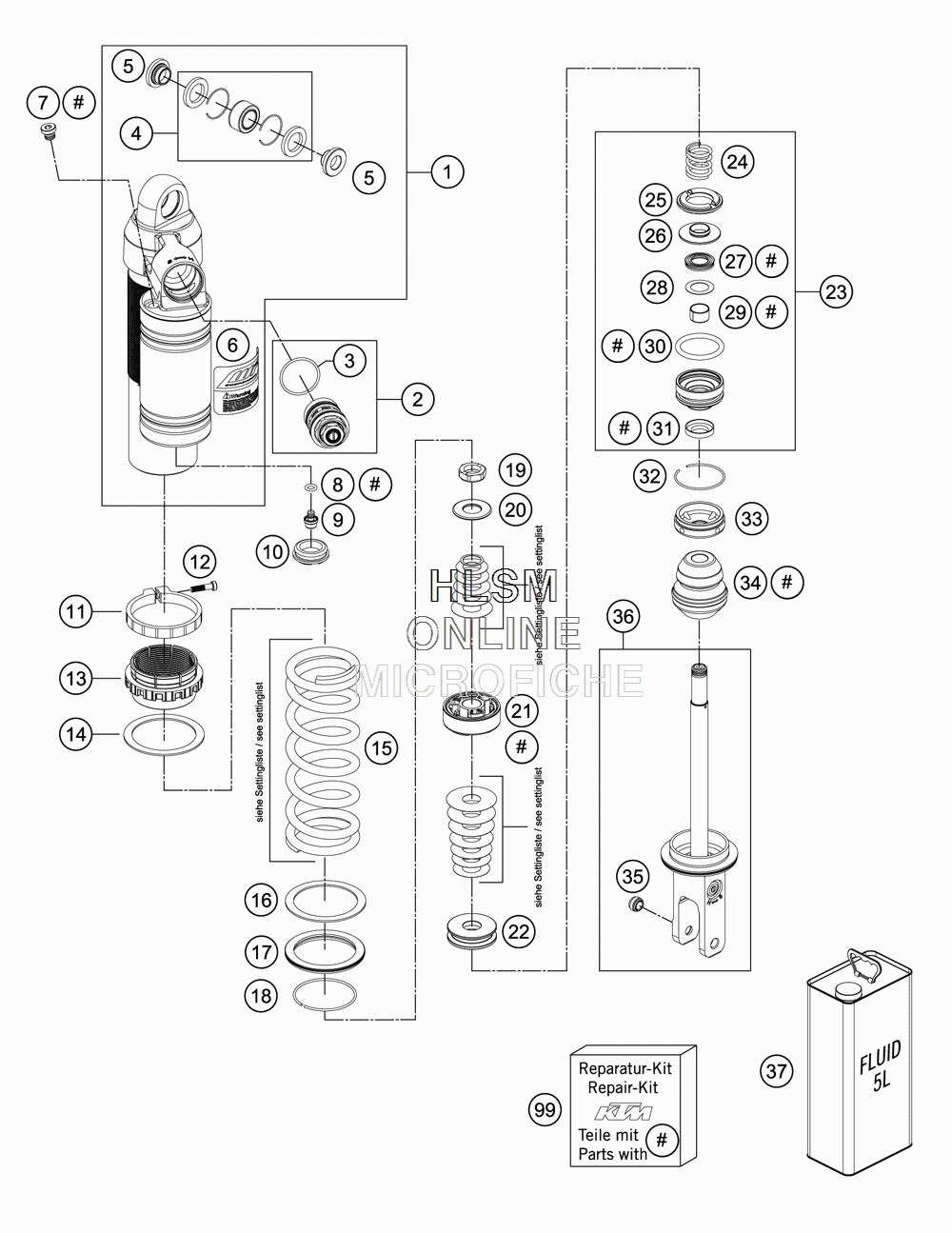

SHOCK ABSORBER DISASSEMBLED для Ktm 350 SXF - 2015 года выпуска

№

Артикул

Название
1

50180944S1 MONOSHOCK UPPER PART CPL.

MONOSHOCK UPPER PART CPL.

108 260 ₽
2

50180213S21 DCC COMPR. DAMP . CON. CPL.

DCC COMPR. DAMP . CON. CPL.

33 230 ₽
3

50180218 O-RING 25X1,5 VITON

O-RING 25X1,5 VITON

300 ₽
4

R12012 REP . KIT BEAR./SEAL UPPER

REP . KIT BEAR./SEAL UPPER

16 860 ₽
5

46180010 BUSH KGW 10X24

BUSH KGW 10X24

920 ₽
6

52000087 STICKER WP MONOSHOCK

STICKER WP MONOSHOCK

2 840 ₽
7

50180095 BLEED PLUG R 1/8

BLEED PLUG R 1/8

990 ₽
8

46810893 O-RING NBR 5,28X1,78

O-RING NBR 5,28X1,78

140 ₽
9

36120151 SCREW PLUG M5X6

SCREW PLUG M5X6

2 840 ₽
10

46811208 RUBBER CAP "DO NOT OPEN"

RUBBER CAP "DO NOT OPEN"

540 ₽
11

50180937 TENSIONING RING D64 H10

TENSIONING RING D64 H10

6 190 ₽
12

14460042 ALLEN HEAD SCREW M5 L=20 STAIN

ALLEN HEAD SCREW M5 L=20 STAIN

240 ₽
13

50180938 ADJUSTING NUT PLASTIC

ADJUSTING NUT PLASTIC

9 480 ₽
14

50180114 SPACER RING FOR SPRING

SPACER RING FOR SPRING

550 ₽
15

91210100S SPRING 260 45 N/MM

SPRING 260 45 N/MM

40 810 ₽
15

91210101S SPRING 260 48 N/MM

SPRING 260 48 N/MM

40 810 ₽
15

91210102S SPRING 260 51 N/MM

SPRING 260 51 N/MM

40 810 ₽
15

91210103S SPRING 260 54 N/MM

SPRING 260 54 N/MM

40 810 ₽
15

91210104S SPRING 260 57 N/MM

SPRING 260 57 N/MM

40 810 ₽
15

91210105S SPRING 260 60 N/MM

SPRING 260 60 N/MM

40 810 ₽
16

50180793 SPACER RING ADJUSTING NUT

SPACER RING ADJUSTING NUT

550 ₽
17

50180824 VALVE SPRING D80 CLOSED

VALVE SPRING D80 CLOSED

6 940 ₽
18

50180273 CIRCLIP 58,2X2

CIRCLIP 58,2X2

440 ₽
19

50180141 PISTON ROD NUT M16X1

PISTON ROD NUT M16X1

2 480 ₽
20

50180836 REBOUND DISC 16X34 T2 H0

REBOUND DISC 16X34 T2 H0

2 480 ₽
21

50180786E PISTON D50

PISTON D50

12 950 ₽
22

50180801 REBOUND DISC D16X43 H8

REBOUND DISC D16X43 H8

9 540 ₽
23

50180603SA ADAPTER D50 H28 CPL.

ADAPTER D50 H28 CPL.

20 730 ₽
24

50180780 REBOUND SPRING

REBOUND SPRING

3 720 ₽
25

50180798 REBOUND RUBBER

REBOUND RUBBER

980 ₽
26

50180800 SPRING RING

SPRING RING

1 920 ₽
27

50180605S SEAL D18X30X5

SEAL D18X30X5

11 040 ₽
28

50180604 SHIM D29,75 X D19 X T0,4

SHIM D29,75 X D19 X T0,4

370 ₽
29

46180119 DU-BUSH 18X20X12

DU-BUSH 18X20X12

1 450 ₽
30

50180103 O-RING 41X5

O-RING 41X5

110 ₽
31

50180606 DUST SEAL 1828

DUST SEAL 1828

1 590 ₽
32

50180126 CIRCLIP 53X1,75

CIRCLIP 53X1,75

190 ₽
33

50180626 RESERVOIR CAP D=50 H=10

RESERVOIR CAP D=50 H=10

12 380 ₽
34

50180775 BUMP RUBBER

BUMP RUBBER

5 170 ₽
35

46811205 ADAPTOR -BUSH M10X1,50, D=15

ADAPTOR -BUSH M10X1,50, D=15

1 550 ₽
36

50180773SA1 MONOSHOCK BOTTOM PART CPL.

MONOSHOCK BOTTOM PART CPL.

134 550 ₽
37

50180751S1 SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

53 390 ₽
99

R12018 REPAIR-KIT

REPAIR-KIT

24 730 ₽
