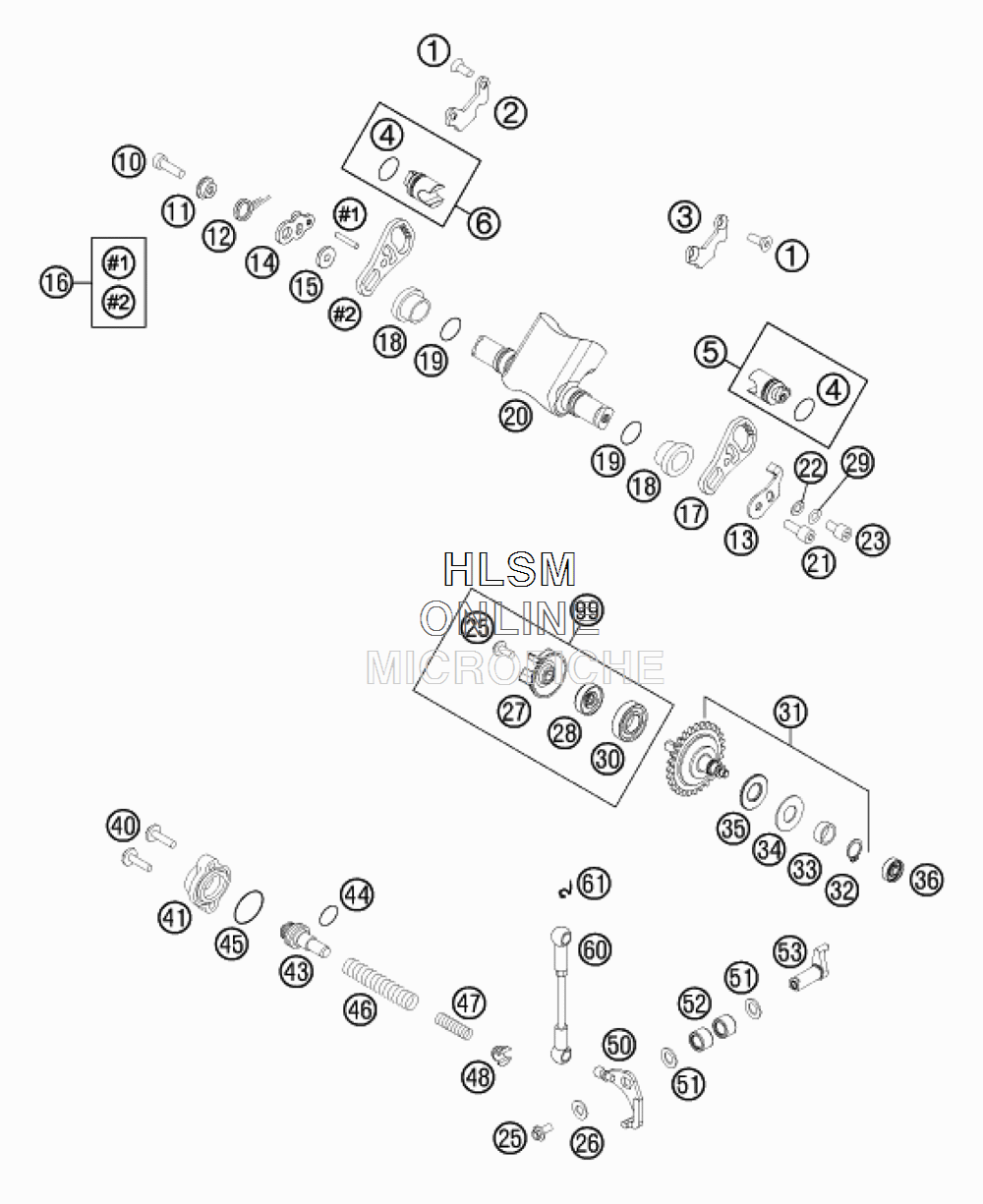

EXHAUST CONTROL для Ktm 300 XCW SIX DAYS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0019050106S INT . TORX FLAT HEAD M5X10 10.9
    INT . TORX FLAT HEAD M5X10 10.9
  • 2
    54837362000 RETAINING PLATE R/S
    RETAINING PLATE R/S
  • 3
    54837363000 RETAINING PLATE L/S
    RETAINING PLATE L/S
  • 4
    0770160021 O-RING 16,00X2,00 VITON
    O-RING 16,00X2,00 VITON
  • 5
    54837361044 CONTROL VALVE L/S CPL.
    CONTROL VALVE L/S CPL.
  • 6
    54837361144 CONTROL VALVE R/S CPL.
    CONTROL VALVE R/S CPL.
  • 10
    0912060203 AH SCREW DIN0912-M 6X20
    AH SCREW DIN0912-M 6X20
  • 11
    54637067000 SPRING SLEEVE
    SPRING SLEEVE
  • 12
    54637066000 OVERLOAD SPRING
    OVERLOAD SPRING
  • 13
    54637085300 RETAIN.PLATE CONTROL FLAP
    RETAIN.PLATE CONTROL FLAP
  • 14
    54637065000 CONTROL LEVER WITH BALL TYPE
    CONTROL LEVER WITH BALL TYPE
  • 15
    54637068100 BUSHING SLEEVE
    BUSHING SLEEVE
  • 16
    54837364044 GEAR SEGMENT RIGHT CPL.
    GEAR SEGMENT RIGHT CPL.
  • 17
    54837364050 GEAR SEGMENT L/S
    GEAR SEGMENT L/S
  • 18
    54737019000 BEAR. SLEEVE F .CONTROL FLAP
    BEAR. SLEEVE F .CONTROL FLAP
