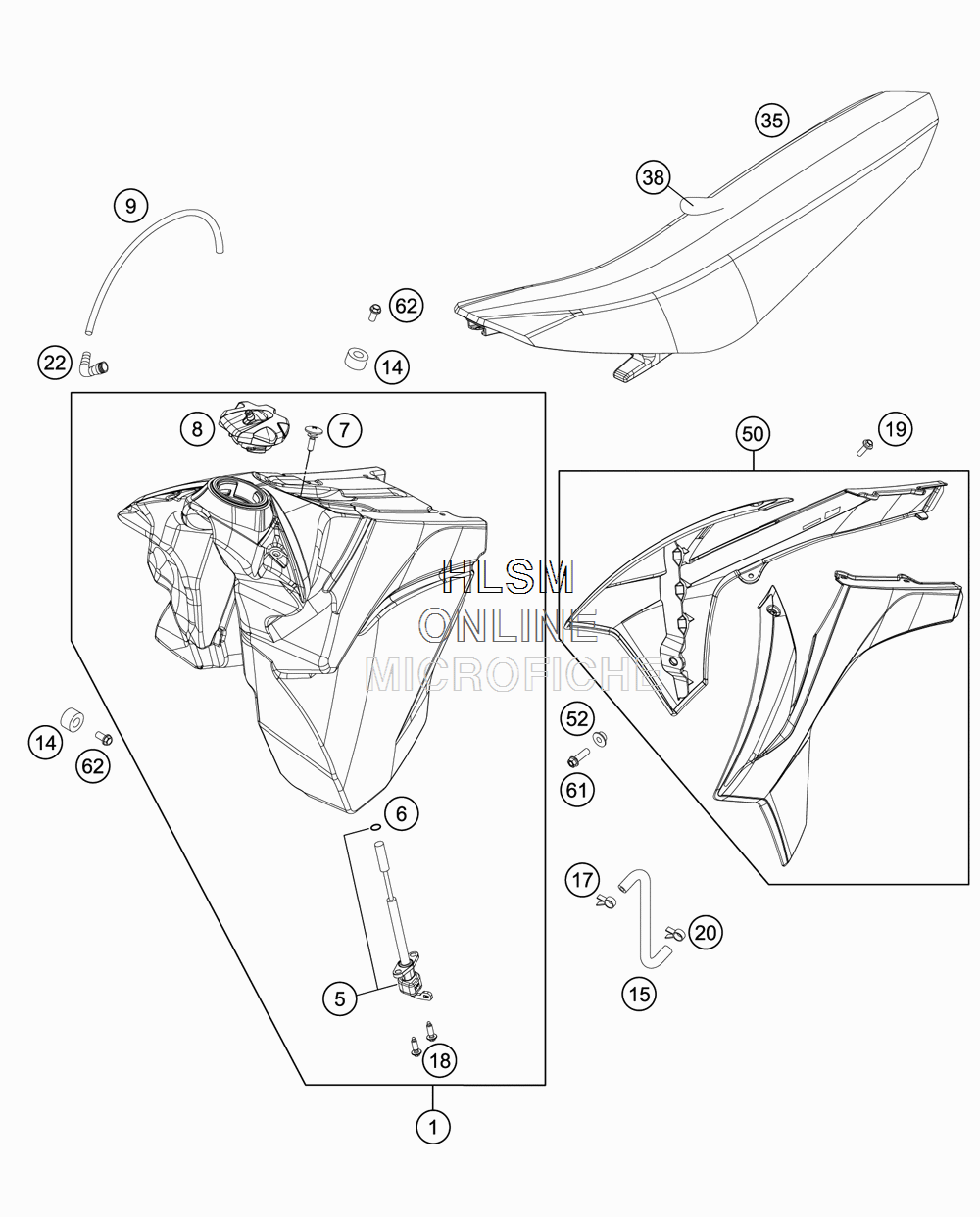

TANK - SEAT - COVER для Ktm 250 XCW - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5480751313399 FUEL TANK CPL. 10L
    FUEL TANK CPL. 10L
  • 5
    54807004000 GAS COCK ON/OFF/RES
    GAS COCK ON/OFF/RES
  • 6
    0770110021 O-RING 11X2 VITON
    O-RING 11X2 VITON
  • 7
    50307011000 SCREW SEAT FASTENING D=6X23/18
    SCREW SEAT FASTENING D=6X23/18
  • 8
    78107008044X4 TANK PLUG CPL.
    TANK PLUG CPL.
  • 9
    78007000270 PVC-HOSE 5,6X10X270M M
    PVC-HOSE 5,6X10X270M M
  • 14
    50307014000 TANK ROLLER 12X26X12
    TANK ROLLER 12X26X12
  • 15
    54807016100 FUEL HOSE 2ST
    FUEL HOSE 2ST
  • 17
    58031005000 CLAMP YDNAC 10128 12MM
    CLAMP YDNAC 10128 12MM
  • 18
    0017060205 SCREW FOR PLASTIC K60X20 SW6
    SCREW FOR PLASTIC K60X20 SW6
  • 19
    0017060206 SCREW F . PLASTIC K60X20AL SW6
    SCREW F . PLASTIC K60X20AL SW6
  • 20
    50231005000 HOSE CLAMP YDNAC 10119 11MM
    HOSE CLAMP YDNAC 10119 11MM
  • 22
    51030022000 ANGLE PIECE 90 DEGREE M10X1
    ANGLE PIECE 90 DEGREE M10X1
  • 35
    77207040200 SEAT
    SEAT
  • 38
    77207040050 SEAT COVER
    SEAT COVER
  • 50
    7770805410028B SPOILER KIT W/DECAL
    SPOILER KIT W/DECAL
  • 52
    50308052000 BUSH FOR SPOILER 6X11X16X5 MM
    BUSH FOR SPOILER 6X11X16X5 MM
  • 61
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 62
    0026060136 COLLAR SCREW M6X13 ISA30
    COLLAR SCREW M6X13 ISA30
