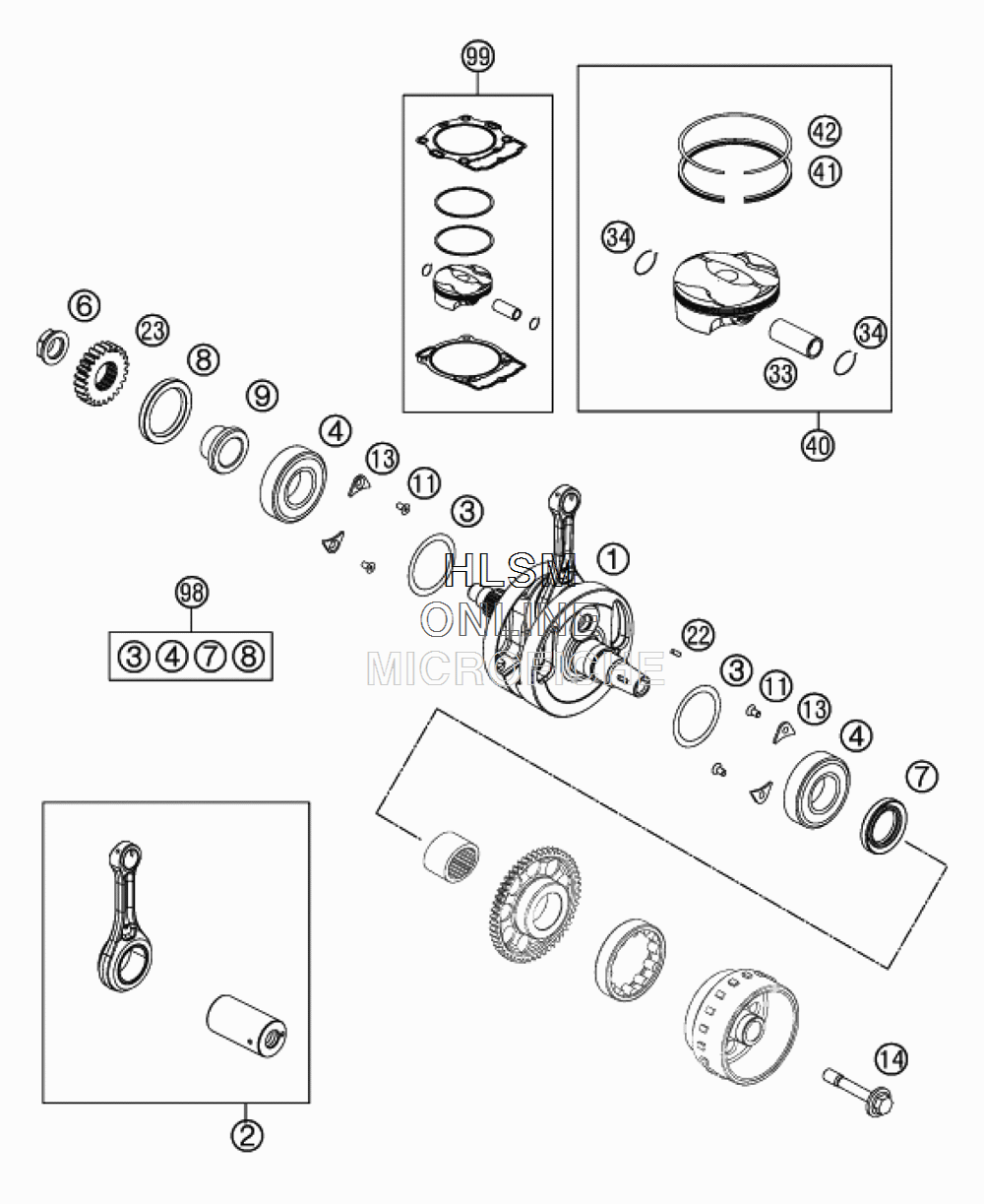

CRANKSHAFT - PISTON для Ktm 250 SXF - 2015 года выпуска

№

Артикул

Название
1

77730018100 CRANKSHAFT CPL.

CRANKSHAFT CPL.

170 ₽
2

77730015144 CONNECTING ROD REPAIR SET

CONNECTING ROD REPAIR SET

133 730 ₽
3

0988324510 THRUST WASHER 988ST 32X0,1

THRUST WASHER 988ST 32X0,1

90 ₽
3

0988324515 THRUST WASHER 988ST 32X0,15

THRUST WASHER 988ST 32X0,15

90 ₽
3

0988324530 THRUST WASHER 988ST 32X0,30

THRUST WASHER 988ST 32X0,30

90 ₽
4

77330082200 BEARING NJ 206 ECP/HN3C4HV A624

BEARING NJ 206 ECP/HN3C4HV A624

25 350 ₽
6

77230029000 NUT PRIMARY WHEEL

NUT PRIMARY WHEEL

9 960 ₽
7

0760304772 SH.SEAL RING 30X47X7 BSL VITON

SH.SEAL RING 30X47X7 BSL VITON

5 490 ₽
8

0760405560 SHAFT SEAL RING A40X55X6 VITON

SHAFT SEAL RING A40X55X6 VITON

3 100 ₽
9

77232022000 SPACER BUSHING PRIMARY GEAR

SPACER BUSHING PRIMARY GEAR

5 960 ₽
11

0019050106S INT . TORX FLAT HEAD M5X10 10.9

INT . TORX FLAT HEAD M5X10 10.9

290 ₽
13

75030085000 RETAINING PLATE F . CS BEARING

RETAINING PLATE F . CS BEARING

1 140 ₽
14

77339010100 FLYWHEEL SCREW

FLYWHEEL SCREW

1 290 ₽
22

0888030037 WOODRUFF KEY DIN6888-3X3,7

WOODRUFF KEY DIN6888-3X3,7

290 ₽
23

77232023024 PRIMARY GEAR 24T .

PRIMARY GEAR 24T .

21 880 ₽
33

77730033200 PISTON PIN

PISTON PIN

12 790 ₽
34

77730074000 CIRCLIP

CIRCLIP

3 040 ₽
40

77730007100I PISTON I CPL.

PISTON I CPL.

102 330 ₽
40

77730007100II PISTON II CPL.

PISTON II CPL.

102 330 ₽
41

77730032000 SCRAPER RING

SCRAPER RING

14 750 ₽
42

77730030000 COMPRESSION RING 250

COMPRESSION RING 250

9 900 ₽
98

00050002311 CRANKSHAFT REP . KIT

CRANKSHAFT REP . KIT

44 350 ₽
99

00050000222 PISTON KIT GR.I

PISTON KIT GR.I

108 700 ₽
99

00050000223 PISTON KIT GR.II

PISTON KIT GR.II

108 700 ₽
