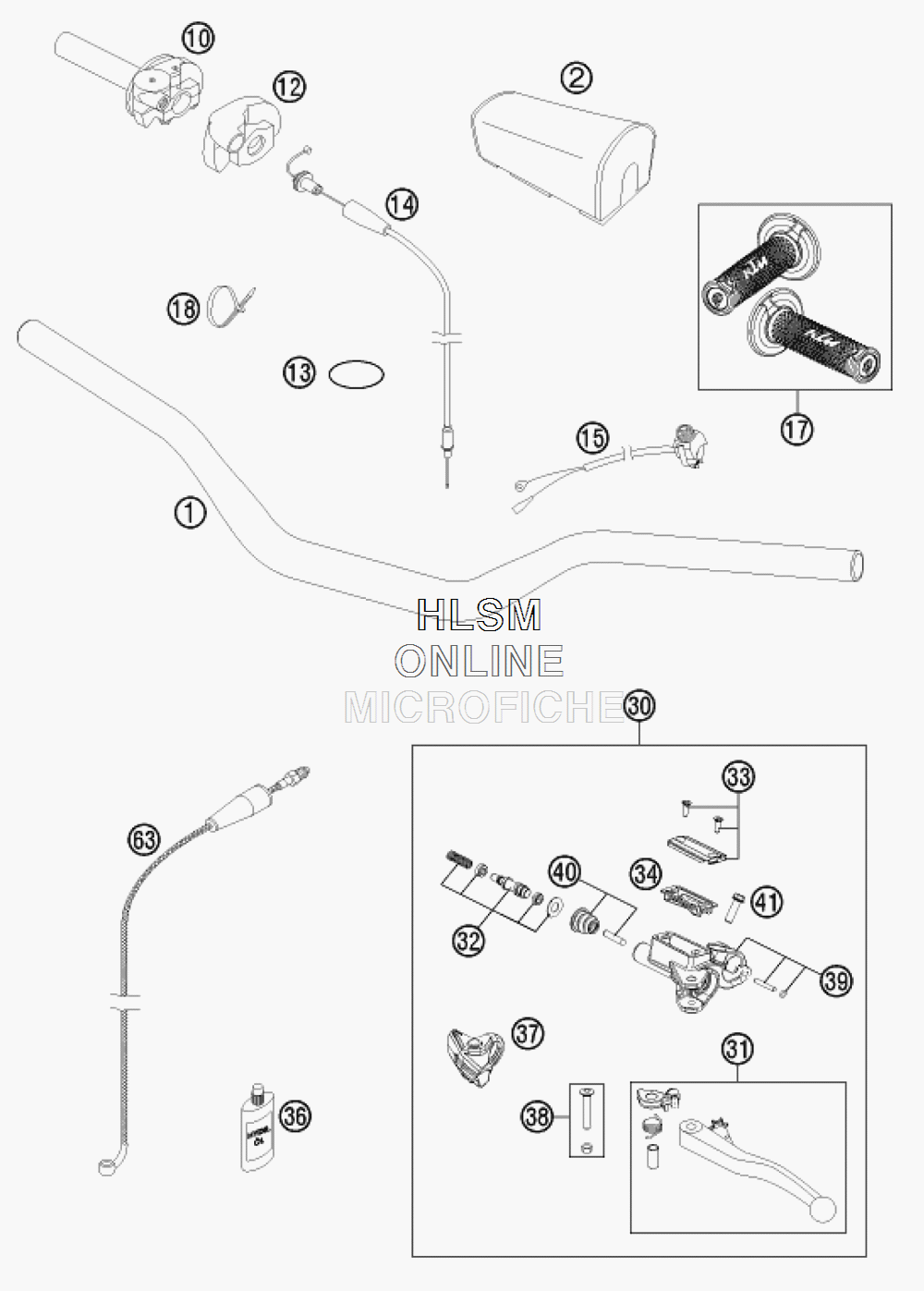

HANDLEBAR CONTROLS для Ktm 150 SX - 2015 года выпуска`
-
№АртикулНазвание
-
17770200100030 HANDLEBAR RENTHAL (BLACK)HANDLEBAR RENTHAL (BLACK)
-
2SXS07250800 FATBAR PAD PHDSFATBAR PAD PHDS
-
1051502010200 THROTTLE GRIP CPL. 2ST.THROTTLE GRIP CPL. 2ST.
-
1250302020000 PROTECTION COVERPROTECTION COVER
-
130770049025 O-RING 49,00X2,50 NBRO-RING 49,00X2,50 NBR
-
1451502091200 THROTTLE CABLE 2-ST.THROTTLE CABLE 2-ST.
-
1550311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
1778102021000 GRIP SETGRIP SET
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
3050302030300 MASTER CYLINDER CPL. 9,5MMMASTER CYLINDER CPL. 9,5MM
-
3150302031300 CLUTCH LEVER CPL.CLUTCH LEVER CPL.
-
3250302032100 REP .KIT PISTON 9,5MMREP .KIT PISTON 9,5MM
-
3350302033200 COVER HYDR. CLUTCH CPL.COVER HYDR. CLUTCH CPL.
-
3450302034100 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3650302036200 OIL FOR HYD. CLUTCH 100 MLOIL FOR HYD. CLUTCH 100 ML
-
3776502037000 PROTECT .CAP FOR LEVER PERCHPROTECT .CAP FOR LEVER PERCH
-
3850302038200 LEVER SCREW SHORT CPL.LEVER SCREW SHORT CPL.
-
3983013005000 CLAMP , CYL. PIN, O-RINGCLAMP , CYL. PIN, O-RING
-
4050302046000 PUSH ROD CPL.PUSH ROD CPL.
-
410025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
6350332063200 CLUTCH PIPE L=970MMCLUTCH PIPE L=970MM
