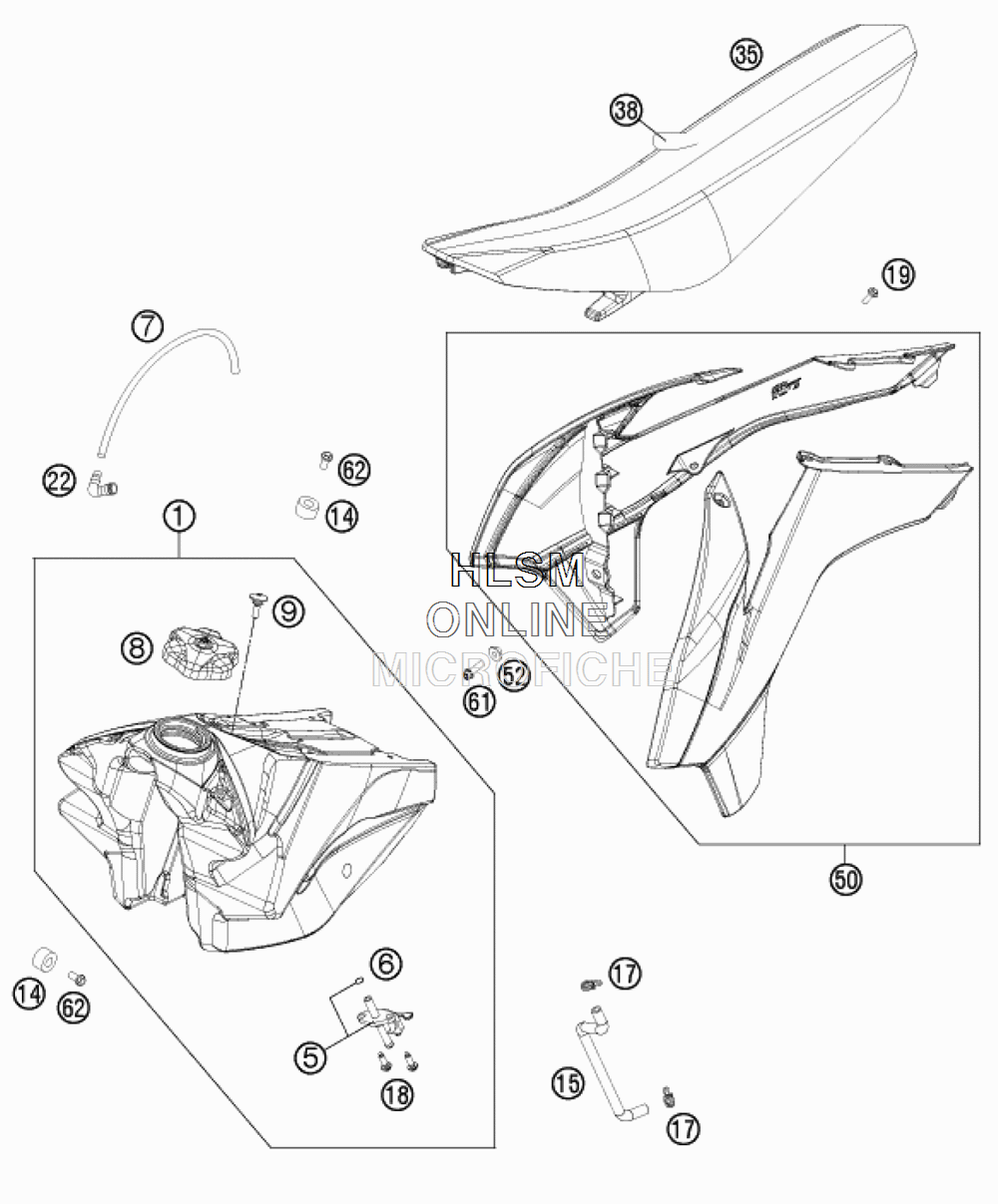

TANK - SEAT - COVER для Ktm 125 SX - 2015 года выпуска`
-
№АртикулНазвание
-
15150701313330 FUEL TANK CPL. 7,5LFUEL TANK CPL. 7,5L
-
550307005000 GAS COCK MIKUNI ON/OFFGAS COCK MIKUNI ON/OFF
-
60770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
778007000270 PVC-HOSE 5,6X10X270M MPVC-HOSE 5,6X10X270M M
-
87770700814404 TANK PLUG CPL.TANK PLUG CPL.
-
950307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1554807516000 FUEL HOSE 6X2,5FUEL HOSE 6X2,5
-
1758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
180017060205 SCREW FOR PLASTIC K60X20 SW6SCREW FOR PLASTIC K60X20 SW6
-
190017060206 SCREW F . PLASTIC K60X20AL SW6SCREW F . PLASTIC K60X20AL SW6
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
3577207040200 SEATSEAT
-
3877207040050 SEAT COVERSEAT COVER
-
507770805410028A SPOILER KIT W/DECALSPOILER KIT W/DECAL
-
5250308052000 BUSH FOR SPOILER 6X11X16X5MMBUSH FOR SPOILER 6X11X16X5MM
-
610025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
620025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
