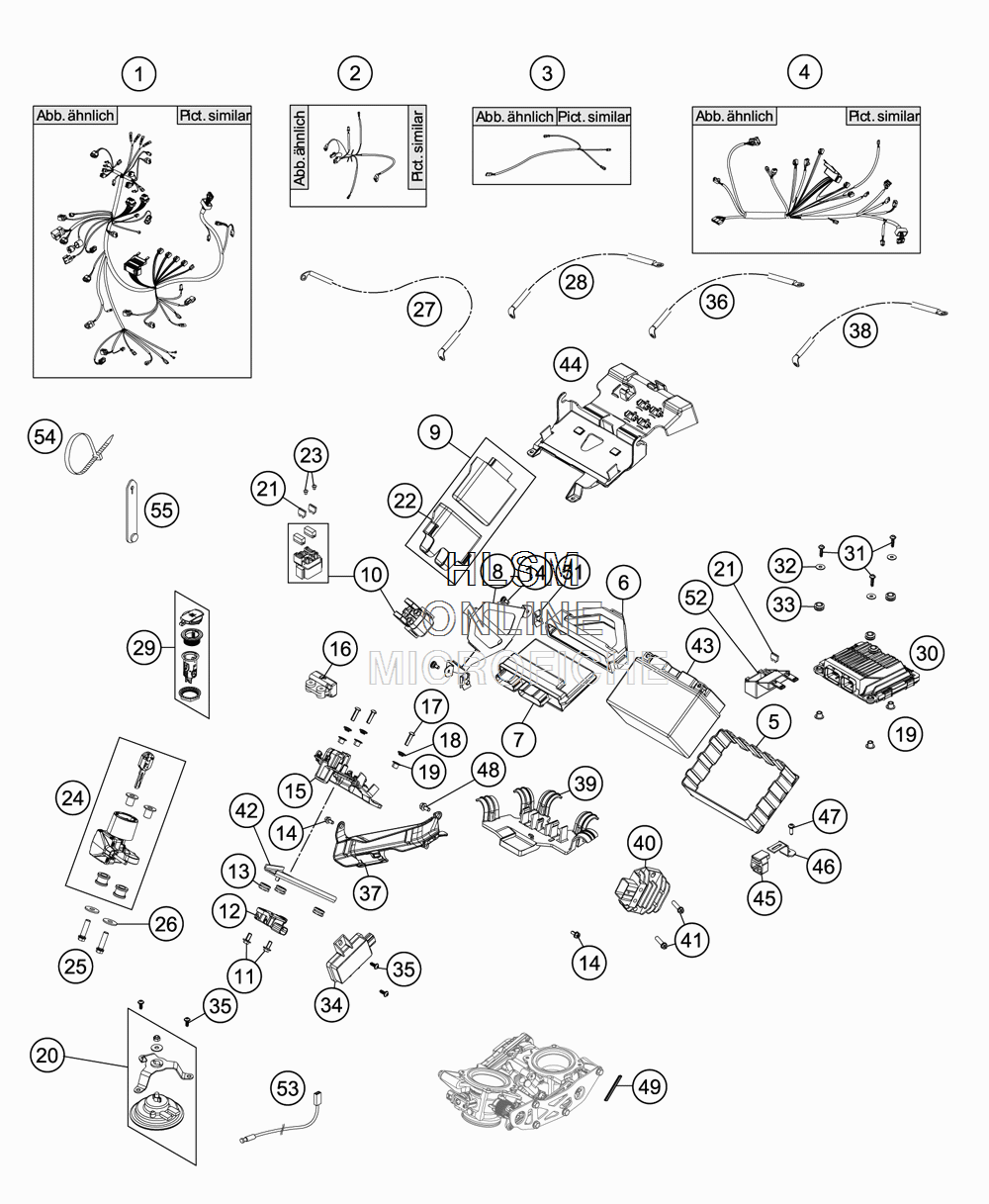

WIRING HARNESS для Ktm 1190 ADVENTURE ABS ORANGE - 2015 года выпуска`
-
№АртикулНазвание
-
160311075233 MAIN WIRING HARNESSMAIN WIRING HARNESS
-
260311085000 WIRING ENGINEWIRING ENGINE
-
360311079000 WIRING HARNESS HEADLIGHTWIRING HARNESS HEADLIGHT
-
460311076000 REAR WIRING HARNESSREAR WIRING HARNESS
-
560311053050 BATTERY HOUSINGBATTERY HOUSING
-
660341031050 ECU RUBBER BRACKETECU RUBBER BRACKET
-
761341031000 ELECTRONIC CONTROL UNITELECTRONIC CONTROL UNIT
-
860311057050 BRACKET ELECTRICBRACKET ELECTRIC
-
960316031100 ENGINE CONTROL UNIT EDSENGINE CONTROL UNIT EDS
-
1058211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
110024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
1260342090000 SLOPING POSITIONS SENSORSLOPING POSITIONS SENSOR
-
1362142041000 DAMP . COMPONENT ABS MODULDAMP . COMPONENT ABS MODUL
-
1469008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
1560311048000 SUPPORT BRACKET FRONTSUPPORT BRACKET FRONT
-
1661041088000 ROLLOVER SENSORROLLOVER SENSOR
-
170738060201 FLAT HEAD SCREW ISO7380 M6X20FLAT HEAD SCREW ISO7380 M6X20
-
1876508043050 COLLAR BUSHINGCOLLAR BUSHING
-
1969014015000 BUSHING HEAD LIGHTBUSHING HEAD LIGHT
-
2060311060100 HORNHORN
-
2158011109140 FUSE 40 AFUSE 40 A
-
2158011109130 FUSE 30 AFUSE 30 A
-
2158011109125 FUSE 25 AFUSE 25 A
-
2158011109115 FUSE 15 AFUSE 15 A
-
2158011109110 FUSE 10 AFUSE 10 A
-
2260316029000 RUBBER EDS-CONTROL UNITRUBBER EDS-CONTROL UNIT
-
230902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
2460311066000 IGNITION LOCKIGNITION LOCK
-
250025080306S HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
260021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
2760311059000 STARTER CABLESTARTER CABLE
-
2860311098000 GROUND CABLEGROUND CABLE
-
2960311042000 POWER OUTLET 12VPOWER OUTLET 12V
-
3060311033200 ENGINE CONTROL UNIT 2.1ENGINE CONTROL UNIT 2.1
-
310081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
320021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
3360006001022 RUB.SLEEVE FLOAT CHAMB.VENTINGRUB.SLEEVE FLOAT CHAMB.VENTING
-
3460312032000 RECEIVER AIR PRESSURE SENSORRECEIVER AIR PRESSURE SENSOR
-
350081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
3660311097000 GROUND CABLEGROUND CABLE
-
3760311047000 CABLE CHANNEL R/SCABLE CHANNEL R/S
-
3860311059050 BATTERY CABLEBATTERY CABLE
-
3960311049100 SUPPORT BRACKET REARSUPPORT BRACKET REAR
-
4060311034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
410025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
4260342090040 BRACKET SLOPING POSITIONS SENSBRACKET SLOPING POSITIONS SENS
-
4360011053000 BATTER Y 12V/11AHBATTER Y 12V/11AH
-
4460308017000 BATTERY COVERBATTERY COVER
-
4561041085050 RUBBER SUPP . PRESSURE SENS.RUBBER SUPP . PRESSURE SENS.
-
4660311040100 BRACKET PRESSURE SENSORBRACKET PRESSURE SENSOR
-
470081050161 EJOT PT SCREW K50X16 1451EJOT PT SCREW K50X16 1451
-
480023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
4961011055045 EDGE PROTECTOR L=45MMEDGE PROTECTOR L=45MM
-
5069008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
5154603048200 RANGE CHANGE MET AL NUT M5RANGE CHANGE MET AL NUT M5
-
5258411087050 RUBBERCO VER F .LOCK HOLDERRUBBERCO VER F .LOCK HOLDER
-
5361111018000 TEMPERATURE SENSORTEMPERATURE SENSOR
-
5444011076140 CABLE TIE 140/2,5MM (BLACK)CABLE TIE 140/2,5MM (BLACK)
-
5444011076200 CABLE TIE 200/3,6MM (BLACK)CABLE TIE 200/3,6MM (BLACK)
-
5444011076305 CABLE TIE 300/4,8MM (BLACK)CABLE TIE 300/4,8MM (BLACK)
-
5560011093045 RUBBER CABLE TIE 45MMRUBBER CABLE TIE 45MM
-
5560011093060 RUBBER CABLE TIE 60MMRUBBER CABLE TIE 60MM
