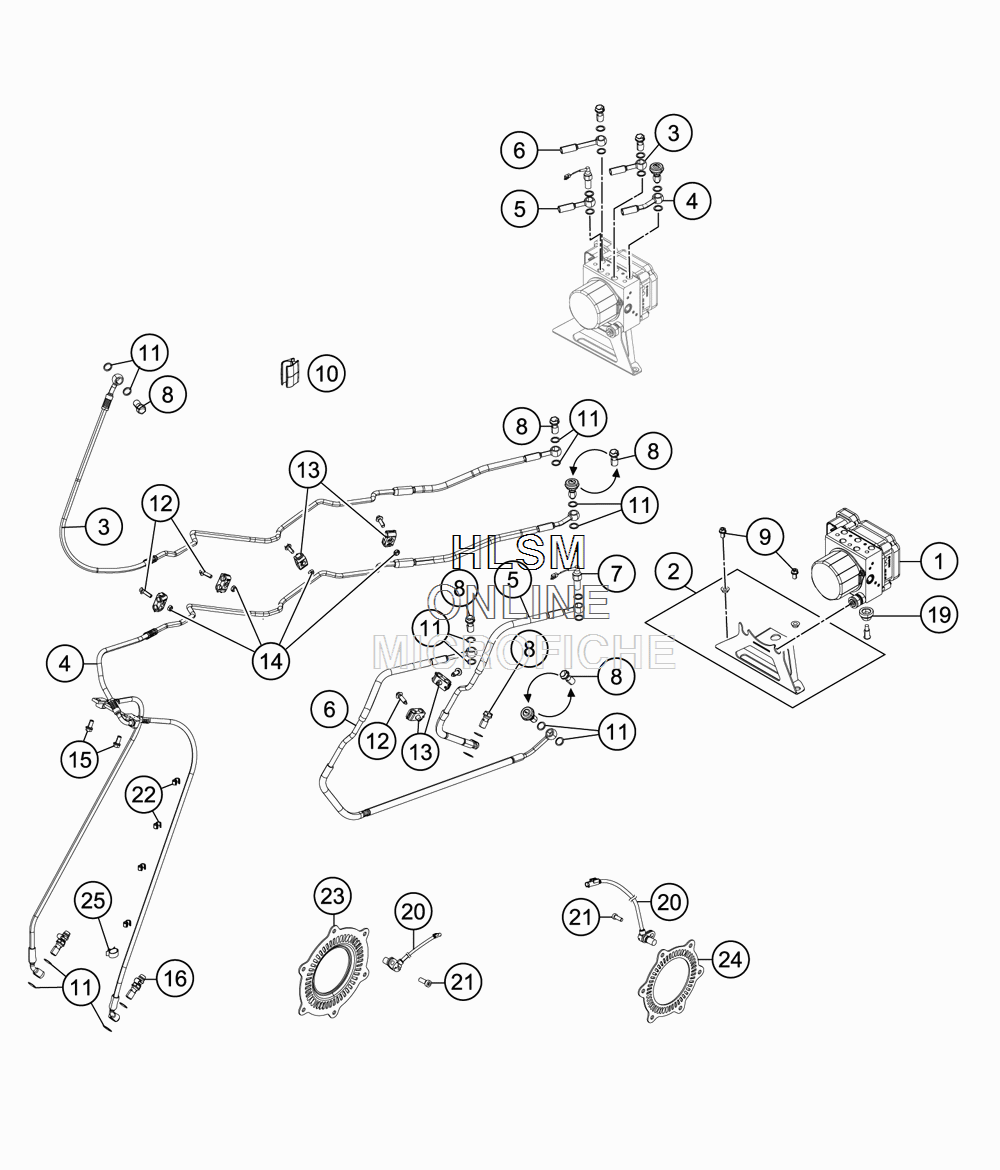

ANTI-LOCK SYSTEM ABS для Ktm 1190 ADVENTURE ABS ORANGE - 2015 года выпуска`
-
№АртикулНазвание
-
160342031144 ABS MODULE FILLEDABS MODULE FILLED
-
260342040044 SUPPORT ABS-MODULE CPL.SUPPORT ABS-MODULE CPL.
-
360342003000 HOSE HAND BRAKE CYLINDERHOSE HAND BRAKE CYLINDER
-
460342104000 BRAKE HOSE BRAKECALIPER FRONTBRAKE HOSE BRAKECALIPER FRONT
-
560342001000 BRAKE HOSE REAR BRAKE CONTROLBRAKE HOSE REAR BRAKE CONTROL
-
660342002000 HOSE BRAKE CALIPER REARHOSE BRAKE CALIPER REAR
-
760311051000 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
862113020100 HOLL. SCREW M10X1X19.5HOLL. SCREW M10X1X19.5
-
90025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
1054813026000 CABLE SUPPORT 10/6MM 06CABLE SUPPORT 10/6MM 06
-
110603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
120024050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
1360113146000 SUPPORT FOR BRAKE HOSE M5SUPPORT FOR BRAKE HOSE M5
-
140985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
150025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
1662513020000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
1960342041000 DAMP RUBBERDAMP RUBBER
-
2076042025000 ABS-SENSORABS-SENSOR
-
21014580060166 CYL. SCREW DIN14580 M 6X16CYL. SCREW DIN14580 M 6X16
-
2260111094000 CLIP 5/7 MMCLIP 5/7 MM
-
2360342020000 SENSOR GEAR ABSSENSOR GEAR ABS
-
2460142021100 SENSOR GEAR ABS REARSENSOR GEAR ABS REAR
-
2558111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
