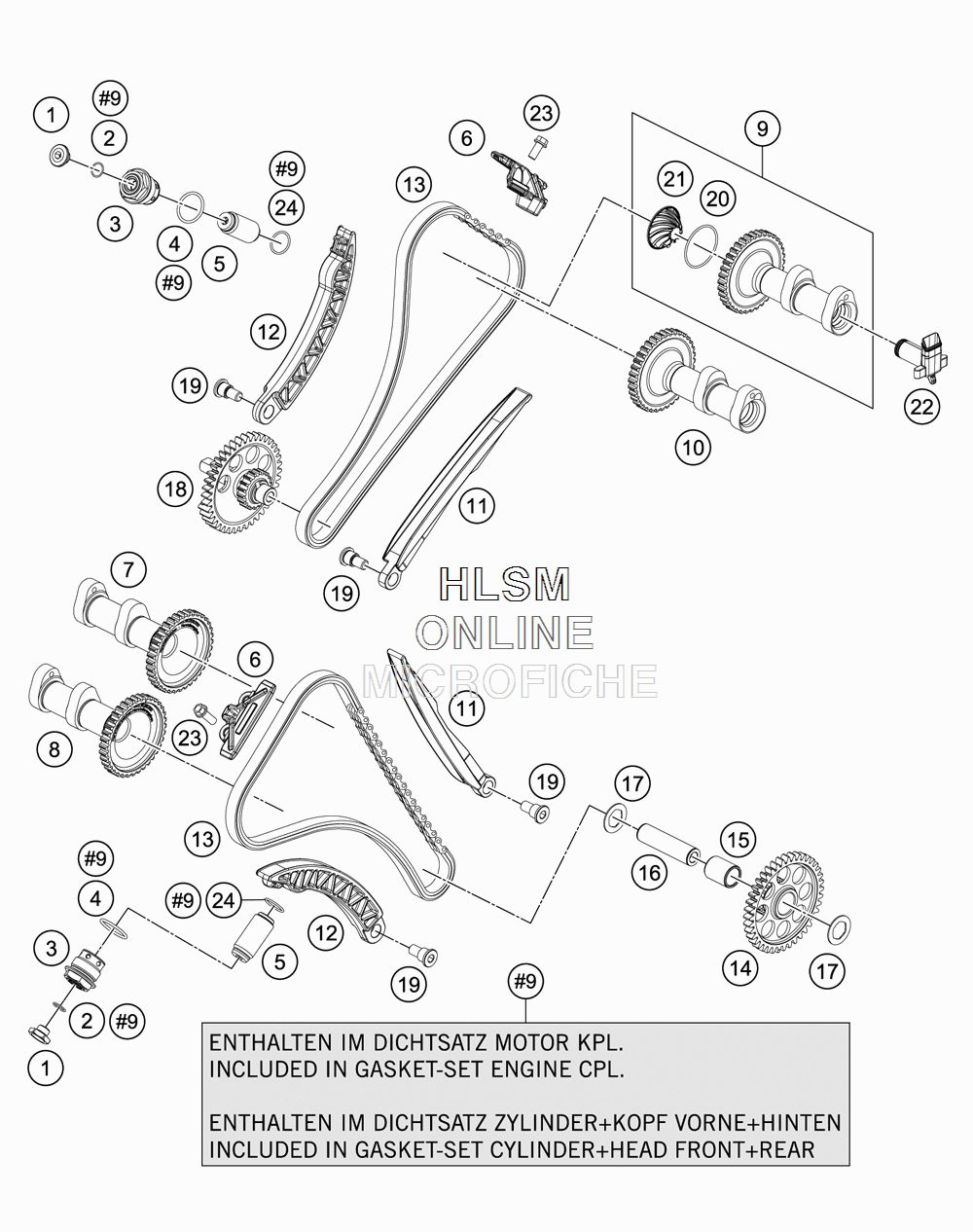

TIMING DRIVE для Ktm 1190 ADVENTURE ABS GREY - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    77236080000 SCREW PLUG
    SCREW PLUG
  • 2
    0770010010 O-RING 10,00X1,00 NBR 70 SH
    O-RING 10,00X1,00 NBR 70 SH
  • 3
    61236008200 SCR. PLUG TIM. CHAIN TENS. CPL
    SCR. PLUG TIM. CHAIN TENS. CPL
  • 4
    0770220020 O-RING 22,00X2,00 B70
    O-RING 22,00X2,00 B70
  • 5
    77036003000 CHAIN ADJUSTER HYD.
    CHAIN ADJUSTER HYD.
  • 6
    61236005000 GUIDE RAIL TOP
    GUIDE RAIL TOP
  • 7
    60336009000 CAMSHAFT INTAKE - FRONT
    CAMSHAFT INTAKE - FRONT
  • 8
    60336010000 CAMSHAFT EXHAUST - FRONT
    CAMSHAFT EXHAUST - FRONT
  • 9
    60336109044 CAMSHAFT INRE CPL.
    CAMSHAFT INRE CPL.
  • 10
    60336110000 CAMSHAFT EXHAUST - REAR
    CAMSHAFT EXHAUST - REAR
  • 11
    61236001000 GUIDE RAIL
    GUIDE RAIL
  • 12
    61236002000 TENSIONER RAIL
    TENSIONER RAIL
  • 13
    61236113000 TIMING CHAIN 118 ROLLS
    TIMING CHAIN 118 ROLLS
  • 14
    61230057100 TIMING DRIVE IDLER GEAR L/S
    TIMING DRIVE IDLER GEAR L/S
  • 15
    0405151924 NEEDLE BEARING K 15X19X24ZW
    NEEDLE BEARING K 15X19X24ZW
  • 16
    61230057050 BEARING BOL T 15X57,5
    BEARING BOL T 15X57,5
  • 17
    61230057060 STOP DISK 15,2X25X1
    STOP DISK 15,2X25X1
  • 18
    60330157000 IDLER GEAR R/S
    IDLER GEAR R/S
  • 19
    61236002050 COLLAR SCREW
    COLLAR SCREW
  • 20
    0770034015 O-RING 34X1,5 VITON
    O-RING 34X1,5 VITON
  • 21
    61236080100 CENTRIFUGE CONE
    CENTRIFUGE CONE
  • 22
    61236081000 ANGLE PIECE F . BREATHER SYSTEM
    ANGLE PIECE F . BREATHER SYSTEM
  • 23
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 24
    0770180020 O-RING 18,00X2,00 NBR 70
    O-RING 18,00X2,00 NBR 70
