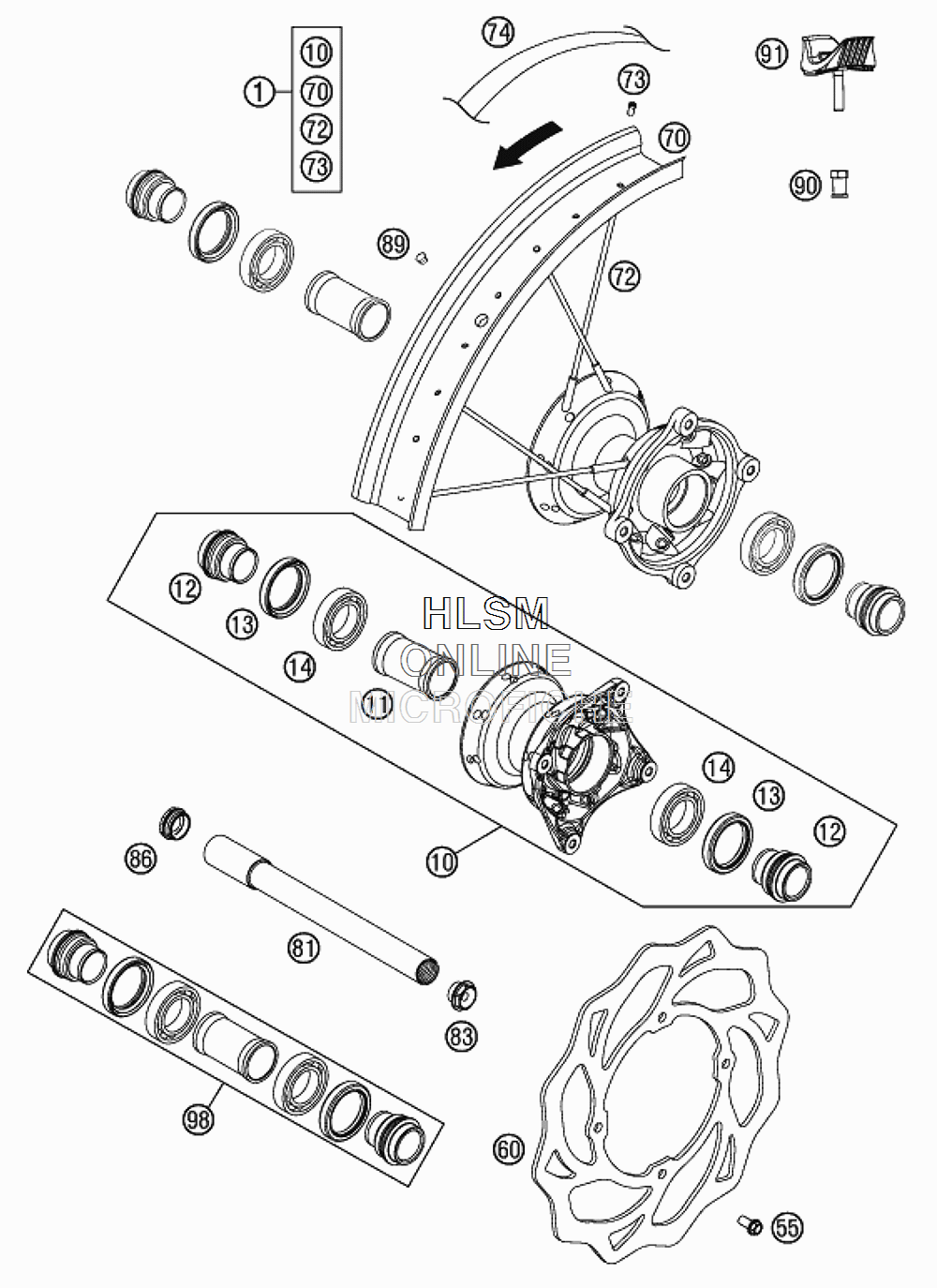

FRONT WHEEL для Ktm 85 SX 19/16 - 2014 года выпуска
-
№АртикулНазвание
-
147109001144 FRONT WHEEL CPL. 19"FRONT WHEEL CPL. 19"
-
1070009010044 FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
1170009011000 BEAR.SPACER TUBE FRONT D22MMBEAR.SPACER TUBE FRONT D22MM
-
1270009012000 SPACER BUSHING D=22MMSPACER BUSHING D=22MM
-
130760324271 SHAFT SEAL RING 32X42X7 BSLSHAFT SEAL RING 32X42X7 BSL
-
140625069050 BALL BEARING 6905 J1LLUC3BALL BEARING 6905 J1LLUC3
-
5559009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
6070009060000 BRAKE DISC FRONTBRAKE DISC FRONT
-
7047109070100 RIM FRONT AL4 19X1,60-32RIM FRONT AL4 19X1,60-32
-
724710907120630 SPOKE M4,5X206-19" BLACKSPOKE M4,5X206-19" BLACK
-
7377109072000 SPOKE NIPPLE M4,5 AL 11SPOKE NIPPLE M4,5 AL 11
-
7447009073100 RIM BAND 85 SX 19"RIM BAND 85 SX 19"
-
8170009081000 AXLE FRONT D=22AXLE FRONT D=22
-
8370009082000 AXLESCREW M20X1.5; SW17AXLESCREW M20X1.5; SW17
-
8670009081050 PLUG BUSHING SW17PLUG BUSHING SW17
-
8955003135000 PLUG FOR RIMPLUG FOR RIM
-
9077110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
9178109090000 RIM LOCK 1,60"RIM LOCK 1,60"
-
9870009015000 FRONT WHEEL REP. KITFRONT WHEEL REP. KIT
