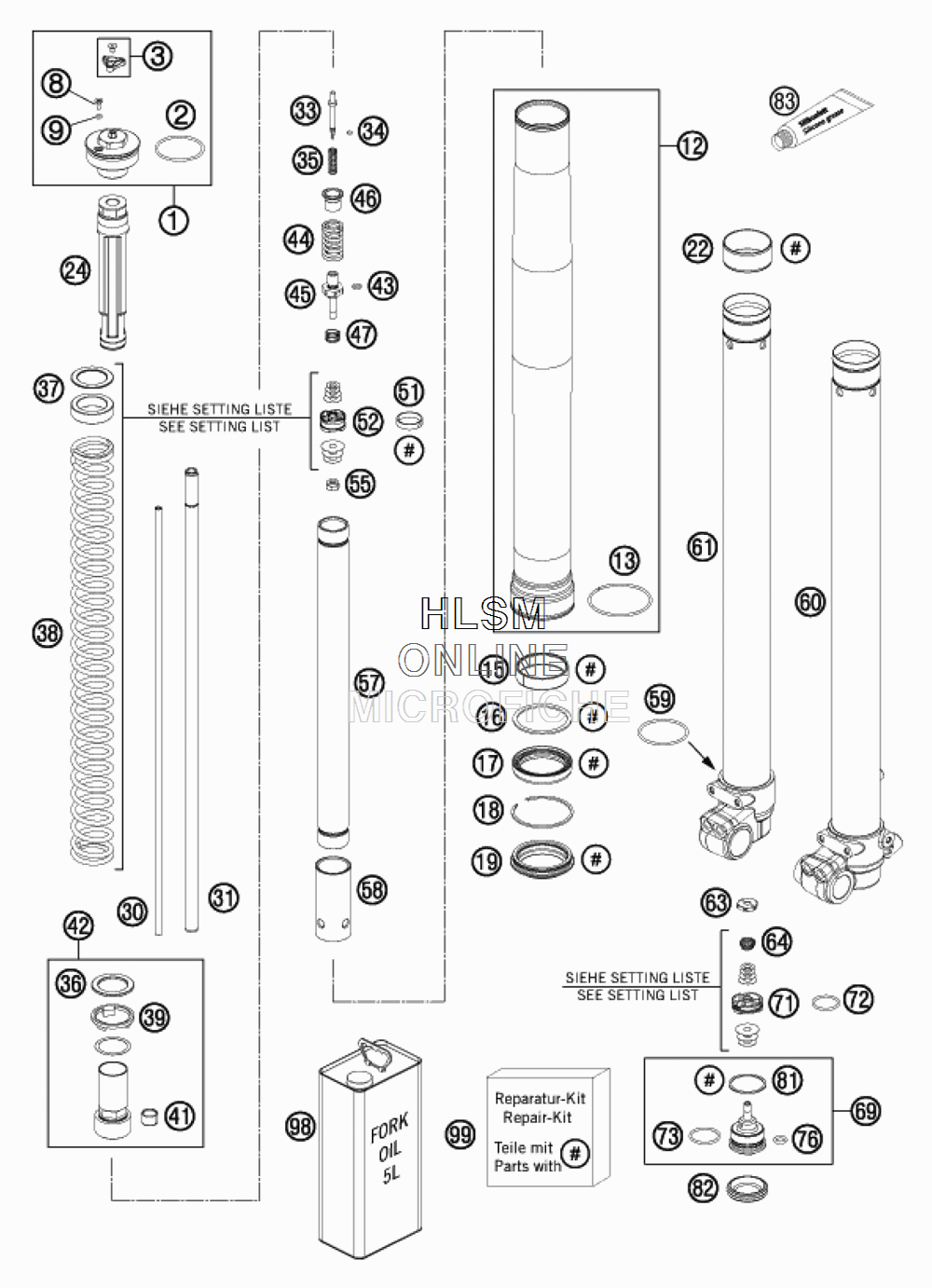

FRONT FORK DISASSEMBLED для Ktm 85 SX 17/14 - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    43570395S1 SCREW CAP M46X1,5 CPL.
    SCREW CAP M46X1,5 CPL.
  • 2
    46811042 O-RING 40,00X2,00 WP
    O-RING 40,00X2,00 WP
  • 3
    48600812S ADJUSTING KNOB + SCREW
    ADJUSTING KNOB + SCREW
  • 8
    48600481 VENT SCREW M4X8
    VENT SCREW M4X8
  • 9
    48600046 O-RING NBR 3X1,5
    O-RING NBR 3X1,5
  • 12
    43570614E OUTER TUBE L510 D49/53
    OUTER TUBE L510 D49/53
  • 13
    43570099 GUIDING RING D=53MM
    GUIDING RING D=53MM
  • 15
    43570618 GUIDE BUSHING 43X47X12
    GUIDE BUSHING 43X47X12
  • 16
    43570092 SUPPORT RING 45 X 52,5 X 1,5
    SUPPORT RING 45 X 52,5 X 1,5
  • 17
    43570201 OIL SEAL RING 43 X 52,9 X 9,5
    OIL SEAL RING 43 X 52,9 X 9,5
  • 18
    43570008 LOCK WASHER SB53
    LOCK WASHER SB53
  • 19
    43570202 DUST STRIPPER 43 X 53,4 X 11,8
    DUST STRIPPER 43 X 53,4 X 11,8
  • 22
    43570617 GUIDE BUSHING 42X44X20 R11
    GUIDE BUSHING 42X44X20 R11
  • 24
    43570396S STOP L135MM D28,6MM D12MM CPL.
    STOP L135MM D28,6MM D12MM CPL.
  • 30
    48600695 ADJUSTMENT TUBE L=442 MM
    ADJUSTMENT TUBE L=442 MM
  • 31
    48600694 PISTON ROD D=12MM L=476MM
    PISTON ROD D=12MM L=476MM
  • 33
    48600277 ADJUSTER NEEDLE 07
    ADJUSTER NEEDLE 07
  • 34
    48600298 O-RING 2X1,5 NBR
    O-RING 2X1,5 NBR
  • 35
    48600444 REBOUND SPRING C=4N/MM
    REBOUND SPRING C=4N/MM
  • 36
    43570133 SPACER 26X38X2,5
    SPACER 26X38X2,5
  • 37
    43570133 SPACER 26X38X2,5
    SPACER 26X38X2,5
  • 37
    43570134 SPACER 26X38X5
    SPACER 26X38X5
  • 37
    43570135 SPACER 26X38X10
    SPACER 26X38X10
  • 37
    43570136 SPACER 26X38X1,5
    SPACER 26X38X1,5
  • 38
    95010032S SPRING 3,4 N/MM SET D=4,4MM
    SPRING 3,4 N/MM SET D=4,4MM
  • 38
    95010033S SPRING 3,6 N/MM SET
    SPRING 3,6 N/MM SET
  • 38
    95010031S SPRING 3,2 N/MM SET D=4,2MM
    SPRING 3,2 N/MM SET D=4,2MM
  • 39
    43570131 INTERM. RING 26,2X38,5X3
    INTERM. RING 26,2X38,5X3
  • 41
    48600430 DU BUSH FOR PISTON ROD
    DU BUSH FOR PISTON ROD
  • 42
    48600830S2 SCREW SLEEVE M27X0,8 CPL.
    SCREW SLEEVE M27X0,8 CPL.
  • 43
    48600299 O-RING 6X1,2 NBR
    O-RING 6X1,2 NBR
  • 44
    48600511 REBOUND SPRING L=32 C=17
    REBOUND SPRING L=32 C=17
  • 45
    48600513 TAP REBOUND 07
    TAP REBOUND 07
  • 46
    48600525 GUIDING BUSH REBOUND SPRING
    GUIDING BUSH REBOUND SPRING
  • 47
    48600382 SHUTTLE VALVE SPRING C=0,4
    SHUTTLE VALVE SPRING C=0,4
  • 51
    48600455 PISTON RING 5X1X68
    PISTON RING 5X1X68
  • 52
    48600575 PISTON REBOUND
    PISTON REBOUND
  • 55
    40540486 NUT M6X0,5 REBOUND
    NUT M6X0,5 REBOUND
  • 57
    48600870 TUBE 23 L=330
    TUBE 23 L=330
  • 58
    48600764 ADAPTER SLEEVE D23/D28
    ADAPTER SLEEVE D23/D28
  • 59
    43570023 O-RING NBR 41X2
    O-RING NBR 41X2
  • 60
    43570559S1 AXLE CLAMP L/S + TUBE CPL.
    AXLE CLAMP L/S + TUBE CPL.
  • 61
    43570558S1 AXLE CLAMP R/S + TUBE CPL.
    AXLE CLAMP R/S + TUBE CPL.
  • 63
    48600885 NUT VALVE M6X0,5 LH=1,2
    NUT VALVE M6X0,5 LH=1,2
  • 64
    48600202 SPRING CHECK VALVE D=0,7
    SPRING CHECK VALVE D=0,7
  • 69
    48600586S TAP COMPRESSION CPL. 07
    TAP COMPRESSION CPL. 07
  • 71
    48600047 PISTON COMPRESSION D=27,9
    PISTON COMPRESSION D=27,9
  • 72
    46811499 O-RING NBR 21X2
    O-RING NBR 21X2
  • 73
    35480320 O-RING NBR 24X2
    O-RING NBR 24X2
  • 76
    48600049 O-RING NBR 8X2
    O-RING NBR 8X2
  • 81
    48600004 COPPER WASHER 29,5X33,5X1
    COPPER WASHER 29,5X33,5X1
  • 82
    48600141 RUBBER CAP D=35MM
    RUBBER CAP D=35MM
  • 83
    T511 SILICONE GREASE F. DUST STRIPE
    SILICONE GREASE F. DUST STRIPE
  • 98
    48601166S1 FORK OIL SAE4 5L
    FORK OIL SAE4 5L
  • 99
    R511 REPAIR-KIT
    REPAIR-KIT
