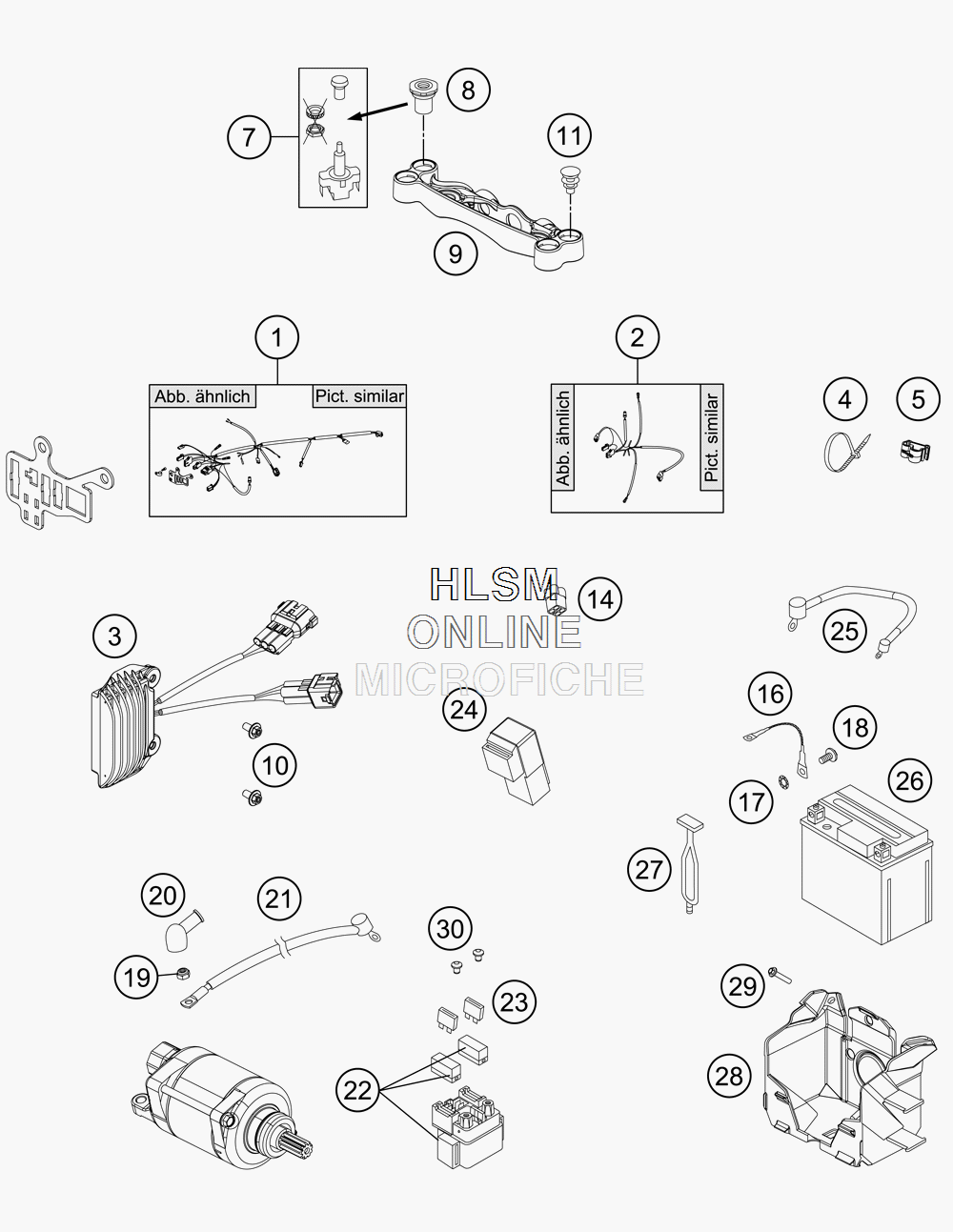

WIRING HARNESS для Ktm 500 XC-W - 2014 года выпуска`
-
№АртикулНазвание
-
178111075133 WIRING HARN.EFI VMT.WIRING HARN.EFI VMT.
-
277711079100 WIRING HARNESS LIGHTWIRING HARNESS LIGHT
-
378111034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
444011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
583013026000 CABLE GUIDECABLE GUIDE
-
755011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
854814060050 SPEC. NUT F. PULL SWITCH WS=17SPEC. NUT F. PULL SWITCH WS=17
-
981214060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
100023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
1150210086000 COVERING CAP SFL16COVERING CAP SFL16
-
1481211096000 DUMMY PLUG AN 4-PINDUMMY PLUG AN 4-PIN
-
1658411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
1758411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
18009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
190985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2077240099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
2158411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
2258211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
2358011109120 FUSE 20 AFUSE 20 A
-
2461111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
2558711086000 WIRING HARNESS BATTERY DUKEWIRING HARNESS BATTERY DUKE
-
2658511053000 BATTERY 12V 4AH YTX5L-BSBATTERY 12V 4AH YTX5L-BS
-
2750303018000 RUBBER L=145MMRUBBER L=145MM
-
2878111055000 BATTERY CASEBATTERY CASE
-
290017060205 SCREW FOR PLASTIC K60X20 SW6SCREW FOR PLASTIC K60X20 SW6
-
300902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
