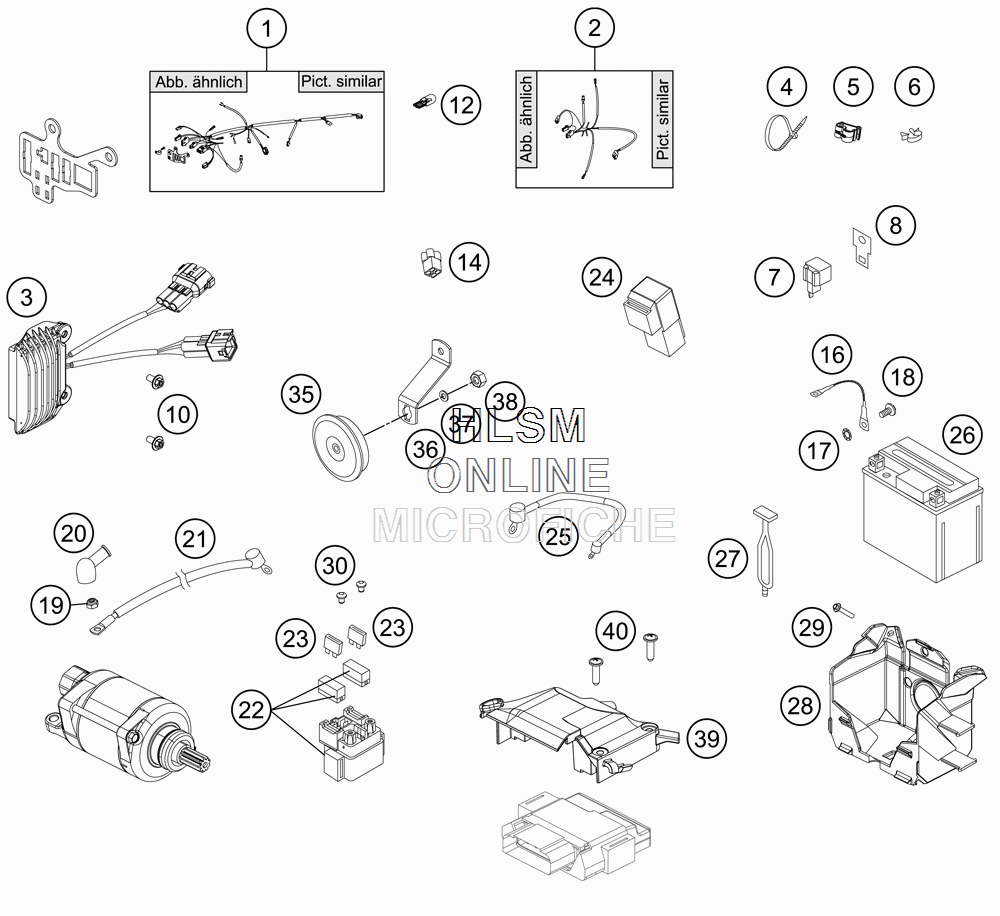

WIRING HARNESS для Ktm 500 EXC - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    78111075133 WIRING HARN.EFI VMT.
    WIRING HARN.EFI VMT.
  • 2
    77711079000 WIRING HARNESS LIGHT CPL.
    WIRING HARNESS LIGHT CPL.
  • 3
    78111034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 4
    44011076140 CABLE TIE 140/2,5MM BLACK
    CABLE TIE 140/2,5MM BLACK
  • 4
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 4
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 5
    83013026000 CABLE GUIDE
    CABLE GUIDE
  • 6
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 7
    44611207200 FLASHER UNIT 97
    FLASHER UNIT 97
  • 8
    58211031100 BRACKET FOR FLASHER RELAY
    BRACKET FOR FLASHER RELAY
  • 10
    0023060123 COLLAR SCREW M6X12 TX
    COLLAR SCREW M6X12 TX
  • 12
    49111425200 BULB 12V 2,3W (W2X4,6D)
    BULB 12V 2,3W (W2X4,6D)
  • 14
    81211096000 DUMMY PLUG AN 4-PIN
    DUMMY PLUG AN 4-PIN
  • 16
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 17
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 18
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 19
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 20
    77240099000 PROTECTION CAP F. STARTER ENG.
    PROTECTION CAP F. STARTER ENG.
  • 21
    58411059100 STARTERCABLE 700 MM
    STARTERCABLE 700 MM
  • 22
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 23
    58011109120 FUSE 20 A
    FUSE 20 A
  • 24
    61111057000 RELAY CM1A-R-12V-H80
    RELAY CM1A-R-12V-H80
  • 25
    58711086000 WIRING HARNESS BATTERY DUKE
    WIRING HARNESS BATTERY DUKE
  • 26
    58511053000 BATTERY 12V 4AH YTX5L-BS
    BATTERY 12V 4AH YTX5L-BS
  • 27
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
  • 28
    78111055000 BATTERY CASE
    BATTERY CASE
  • 29
    0017060205 SCREW FOR PLASTIC K60X20 SW6
    SCREW FOR PLASTIC K60X20 SW6
  • 30
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 35
    50311060200 DC HORN 12V
    DC HORN 12V
  • 36
    78011061000 HORN BRACKET
    HORN BRACKET
  • 37
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 38
    0934050003 HEXAGON NUT DIN0934-M 5
    HEXAGON NUT DIN0934-M 5
  • 39
    77711094050 ECU SPLASH PROTECT.
    ECU SPLASH PROTECT.
  • 40
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
