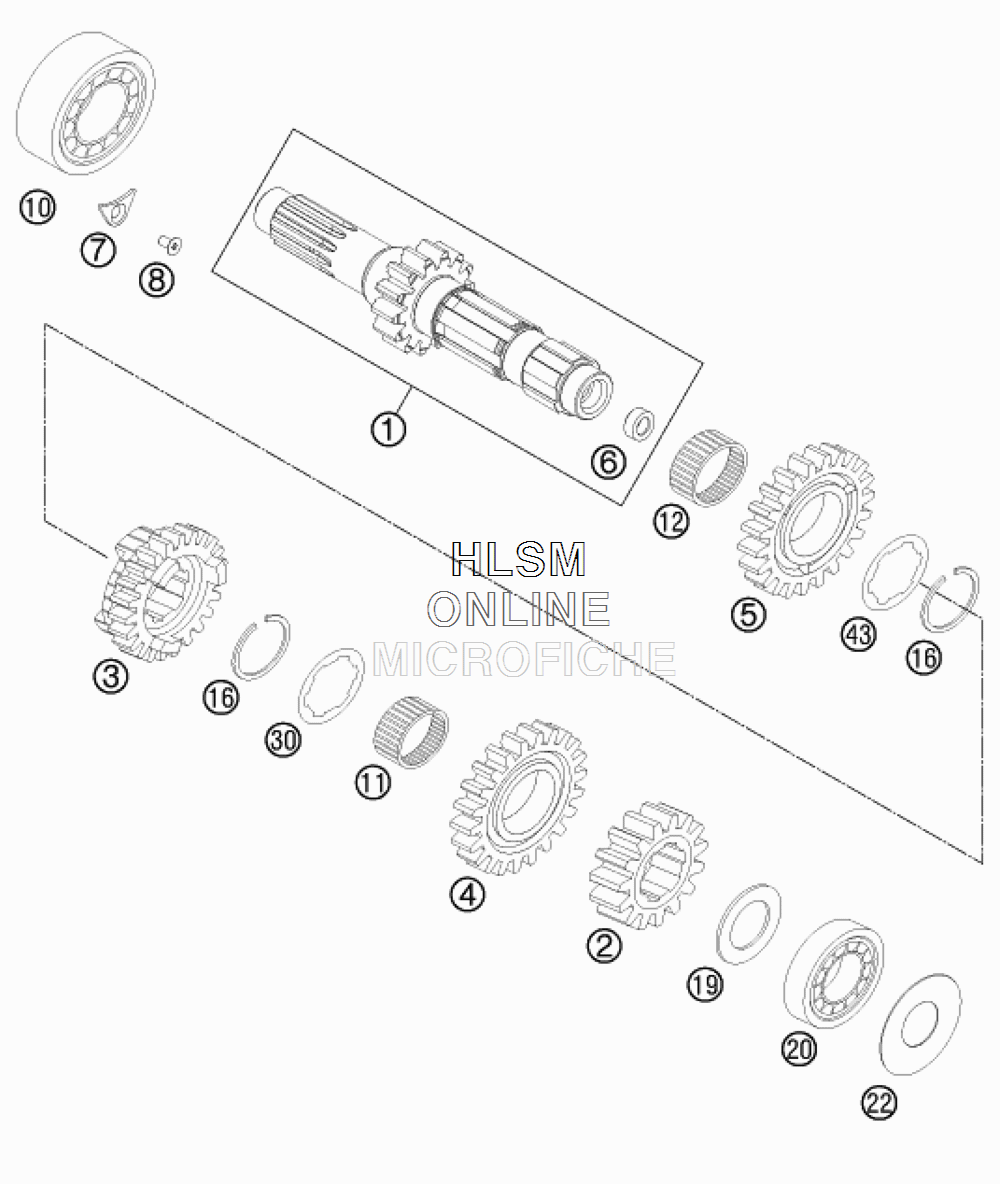

TRANSMISSION - MAIN SHAFT для Ktm 350 XCF - 2014 года выпуска`
-
№АртикулНазвание
-
177233001100 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
254833002100 SOLID GEAR 2ND G. 16-T "2S16"SOLID GEAR 2ND G. 16-T "2S16"
-
354833003000 SLIDING GEAR 3RD G.18-T "3S18"SLIDING GEAR 3RD G.18-T "3S18"
-
454833004000 IDLER GEAR 4TH G. 21-T "4S21"IDLER GEAR 4TH G. 21-T "4S21"
-
554833005000 IDLER GEAR 5TH G. 22-T "5S22"IDLER GEAR 5TH G. 22-T "5S22"
-
678033001110 BUSHINGBUSHING
-
775030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
80019050106 INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
110405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
120405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
1677033022000 AXIAL-CIRCLIP 25X1,65AXIAL-CIRCLIP 25X1,65
-
1977233015000 DISK 20,2X32X1,3DISK 20,2X32X1,3
-
200625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
2277233088000 SPACER SHIM 21X42X0.2SPACER SHIM 21X42X0.2
-
3059033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
4350333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
