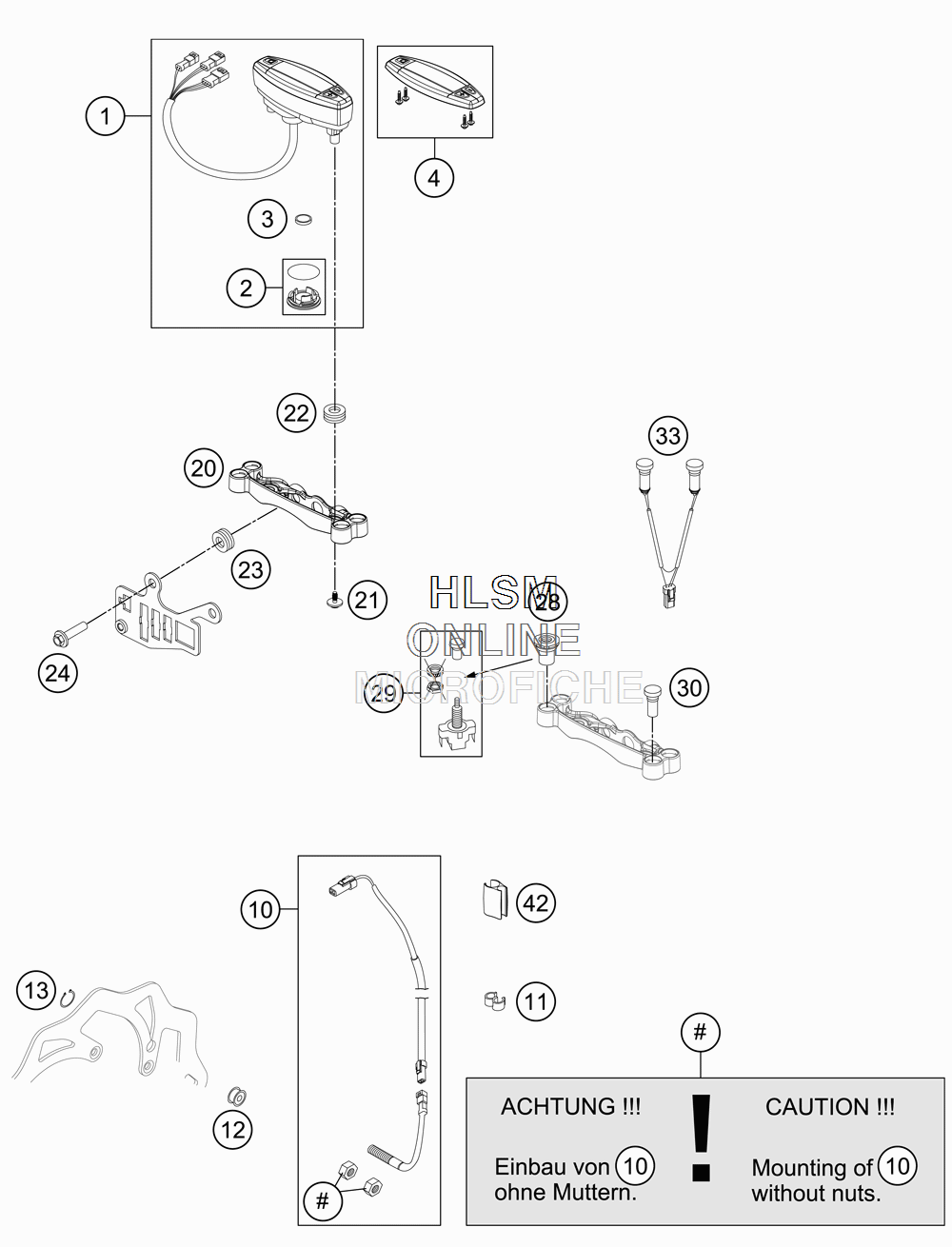

INSTRUMENTS LOCK SYSTEM для Ktm 350 XCF-W - 2014 года выпуска
-
№АртикулНазвание
-
154814069000 SPEEDOMETER KM/H F. 21"SPEEDOMETER KM/H F. 21"
-
254814069010 BATTERY COVER F. SPEEDOMETERBATTERY COVER F. SPEEDOMETER
-
358314068000 BATTERY F. SPEEDOM. M.A.E.BATTERY F. SPEEDOM. M.A.E.
-
454814069020 SPEEDOMETER TOP PARTSPEEDOMETER TOP PART
-
1054814068100 CABLE FOR DIGITAL SPEEDOMETERCABLE FOR DIGITAL SPEEDOMETER
-
1160111094000 CLAMP 5/7 MMCLAMP 5/7 MM
-
1254814069050 MAGNET FOR DIGITAL SPEEDOM.MAGNET FOR DIGITAL SPEEDOM.
-
13471009104 CIRCLIP DIN0471- 9X1 INOXCIRCLIP DIN0471- 9X1 INOX
-
2081214060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
2181645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
2258214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
2331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
2424060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
2854814060050 SPEC. NUT F. PULL SWITCH WS=17SPEC. NUT F. PULL SWITCH WS=17
-
2955011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
3050210086000 COVERING CAP SFL16COVERING CAP SFL16
-
3377714081000 INDICATOR LIGHT EFI+RES CPL.INDICATOR LIGHT EFI+RES CPL.
-
4254813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
