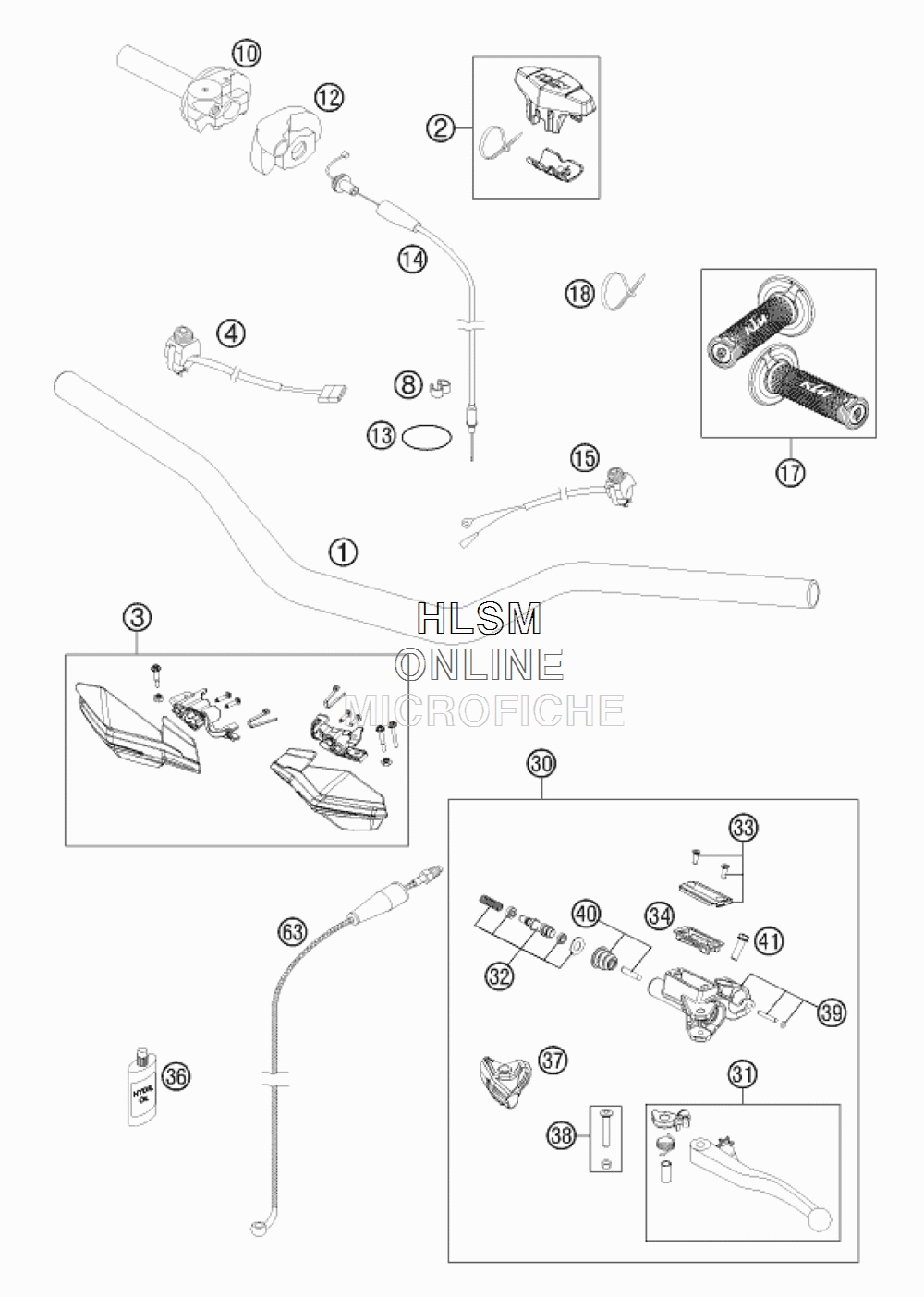

HANDLEBAR CONTROLS для Ktm 300 XC-W SIX DAYS - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    5480200130030 HANDLEBAR D=28MM SX/EXC BLACK
    HANDLEBAR D=28MM SX/EXC BLACK
  • 2
    77202002144 BAR PAD CPL.
    BAR PAD CPL.
  • 3
    7770207900004 HANDGUARDS CPL. L+R ORANGE
    HANDGUARDS CPL. L+R ORANGE
  • 4
    78111074000 STARTER BUTTON GREY
    STARTER BUTTON GREY
  • 8
    60111094000 CLAMP 5/7 MM
    CLAMP 5/7 MM
  • 10
    51502010200 THROTTLE GRIP CPL. 2ST.
    THROTTLE GRIP CPL. 2ST.
  • 12
    50302020000 PROTECTION COVER
    PROTECTION COVER
  • 13
    0770021300 O-RING 40,94X2,62 NBR70
    O-RING 40,94X2,62 NBR70
  • 14
    51502091100 THROTTLE CABLE 2T.DOM/KEIH.
    THROTTLE CABLE 2T.DOM/KEIH.
  • 15
    50311089200 SHORT CIRCUIT BUTTON
    SHORT CIRCUIT BUTTON
  • 17
    78102021000 GRIP SET
    GRIP SET
  • 18
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 30
    50302030300 MASTER CYLINDER CPL. 9,5MM
    MASTER CYLINDER CPL. 9,5MM
  • 31
    50302031300 CLUTCH LEVER CPL.
    CLUTCH LEVER CPL.
  • 32
    50302032100 REP.KIT PISTON 9,5MM
    REP.KIT PISTON 9,5MM
  • 33
    50302033200 COVER HYDR. CLUTCH CPL.
    COVER HYDR. CLUTCH CPL.
  • 34
    50302034100 RUBBER FOR RESERVOIR
    RUBBER FOR RESERVOIR
  • 36
    50302036200 OIL FOR HYD. CLUTCH 100 ML
    OIL FOR HYD. CLUTCH 100 ML
  • 37
    76502037000 PROTECT.CAP FOR LEVER PERCH 13
    PROTECT.CAP FOR LEVER PERCH 13
  • 38
    50302038200 LEVER SCREW SHORT CPL.
    LEVER SCREW SHORT CPL.
  • 39
    83013005000 CLAMP, CYL. PIN, O-RING
    CLAMP, CYL. PIN, O-RING
  • 40
    50302046000 PUSH ROD CPL.
    PUSH ROD CPL.
  • 41
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 63
    50332063200 CLUTCH PIPE L=970MM
    CLUTCH PIPE L=970MM
