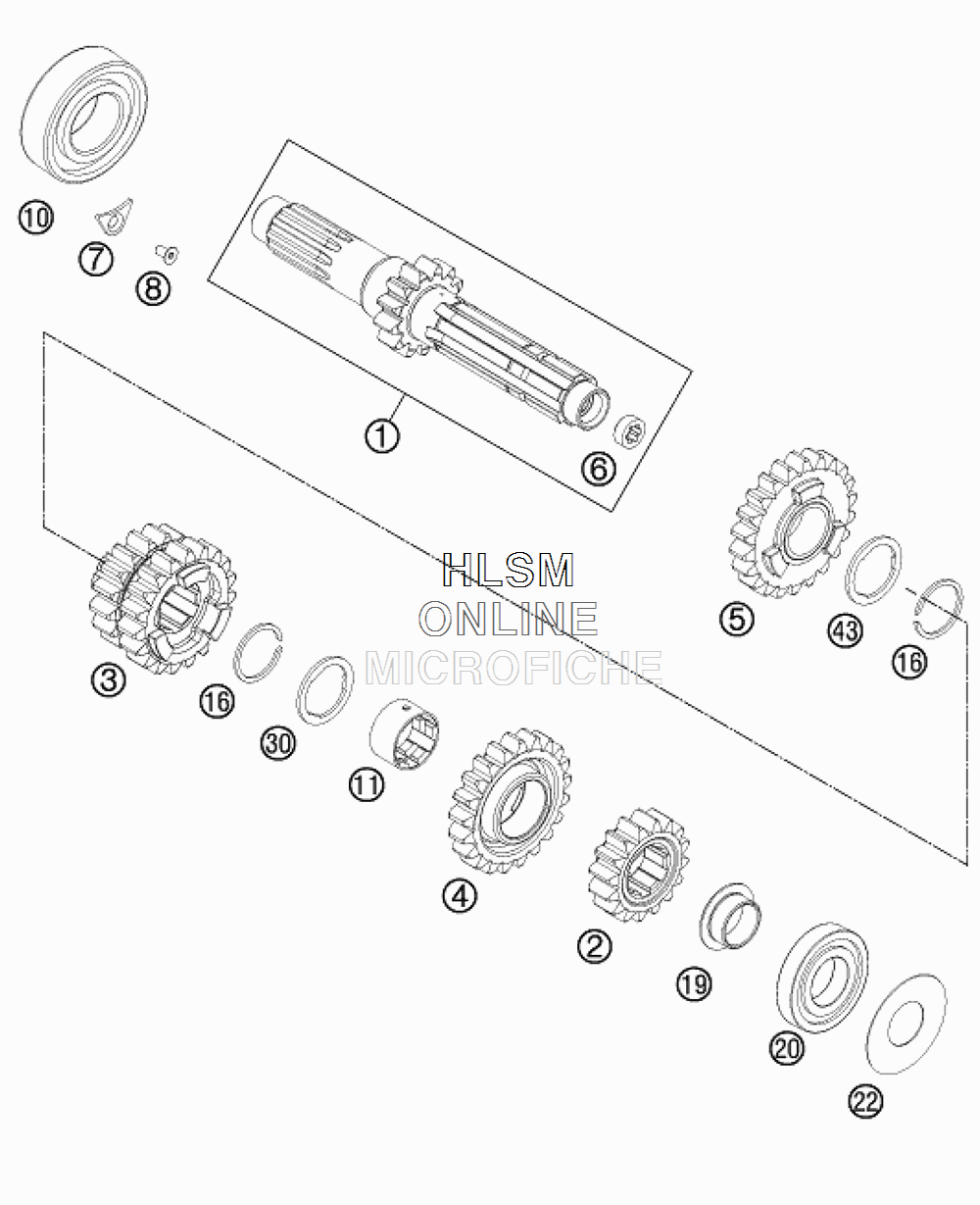

TRANSMISSION - MAIN SHAFT для Ktm 250 XCF - 2014 года выпуска
-
№АртикулНазвание
-
177733001000 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
277733102000 SOLID GEAR 2ND G. T=16SOLID GEAR 2ND G. T=16
-
377733103000 SLIDING GEAR 3/4 G. T="16/23"SLIDING GEAR 3/4 G. T="16/23"
-
477733105000 IDLER GEAR 5TH G. T=23IDLER GEAR 5TH G. T=23
-
577733106044 IDLER GEAR 6TH G. CPL.IDLER GEAR 6TH G. CPL.
-
678033001110 BUSHINGBUSHING
-
775030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
80019050106 INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1177733024000 IDLER GEAR BUSHINGIDLER GEAR BUSHING
-
1650133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
1977733027000 BUSHINGBUSHING
-
200625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
2277233088000 SPACER SHIM 21X42X0.2SPACER SHIM 21X42X0.2
-
3077733021000 STOP DISCSTOP DISC
-
4377733022000 STOP DISCSTOP DISC
