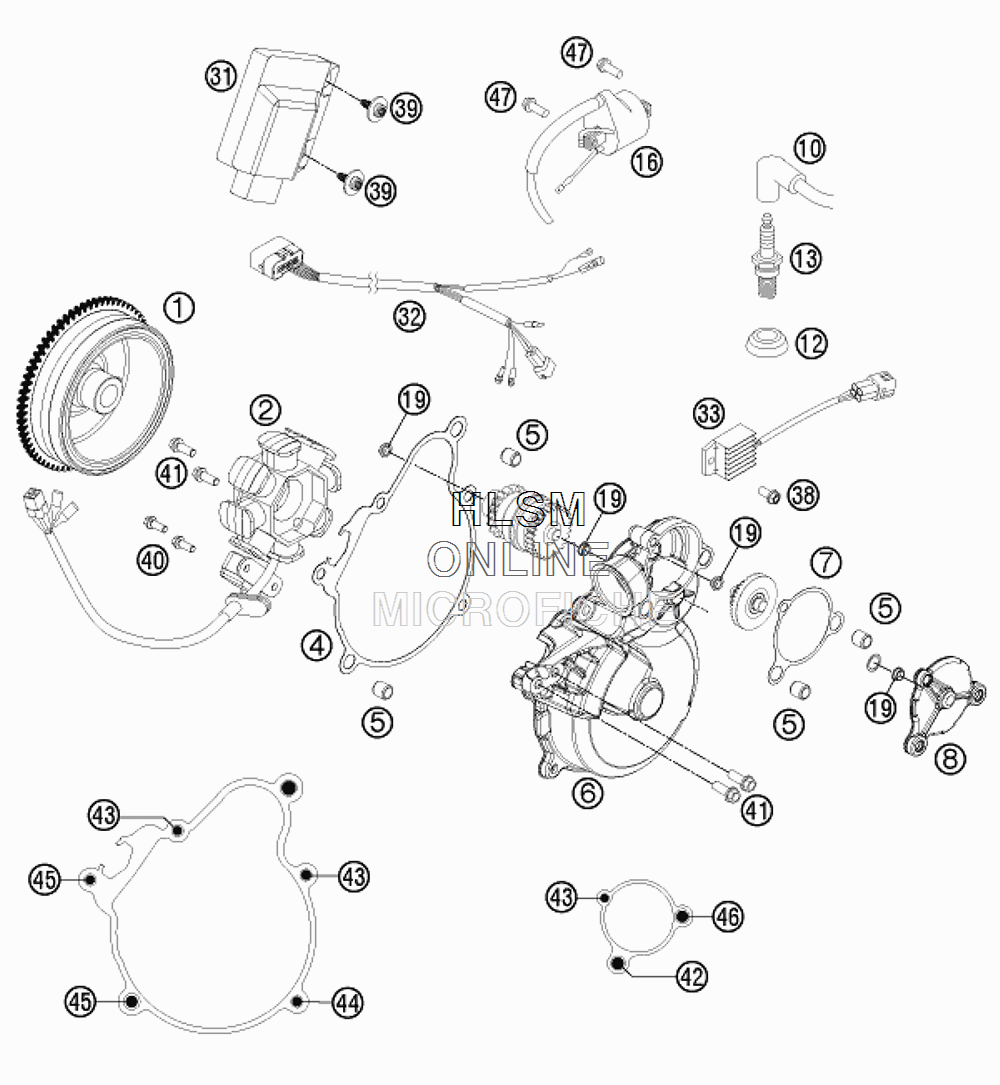

IGNITION SYSTEM для Ktm 250 XC - 2014 года выпуска`
-
№АртикулНазвание
-
155139005000 FLYWHEELFLYWHEEL
-
255139004000 STATOR KOKUSANSTATOR KOKUSAN
-
455130040000 IGNITI.COVER GASKETIGNITI.COVER GASKET
-
549030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
65513000224433 IGNITION COVER CPL.IGNITION COVER CPL.
-
755130041100 IGN. OUT SIDE COV. GASKETIGN. OUT SIDE COV. GASKET
-
85513004524433 OUTER IGNITION COVER CPL.OUTER IGNITION COVER CPL.
-
1047039090000 SPARK PLUG CAP NGK REINFORCSPARK PLUG CAP NGK REINFORC
-
1250231012000 SEALING CUP FOR SPARK PLUGSEALING CUP FOR SPARK PLUG
-
1354739093000 SPARK PLUG NGK BR7ESSPARK PLUG NGK BR7ES
-
1659039006000 IGNITIONCOIL "IG5128"IGNITIONCOIL "IG5128"
-
1955140030100 COLLAR BUSHINGCOLLAR BUSHING
-
3154839131700 ELEKTRONICBOXELEKTRONICBOX
-
3254839032300 WIRING HARNESS F.CDI 2-ST.WIRING HARNESS F.CDI 2-ST.
-
3380011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
380025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
390081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
400014050123 HH COLLAR SCREW M 5X12 WS=6HH COLLAR SCREW M 5X12 WS=6
-
410025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
420025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
430025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
440025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
450025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
460025060706 HH COLLAR SCREW M6X70 TX30HH COLLAR SCREW M6X70 TX30
-
470026060186 COLLAR SCREW M6X18 ISA30COLLAR SCREW M6X18 ISA30
