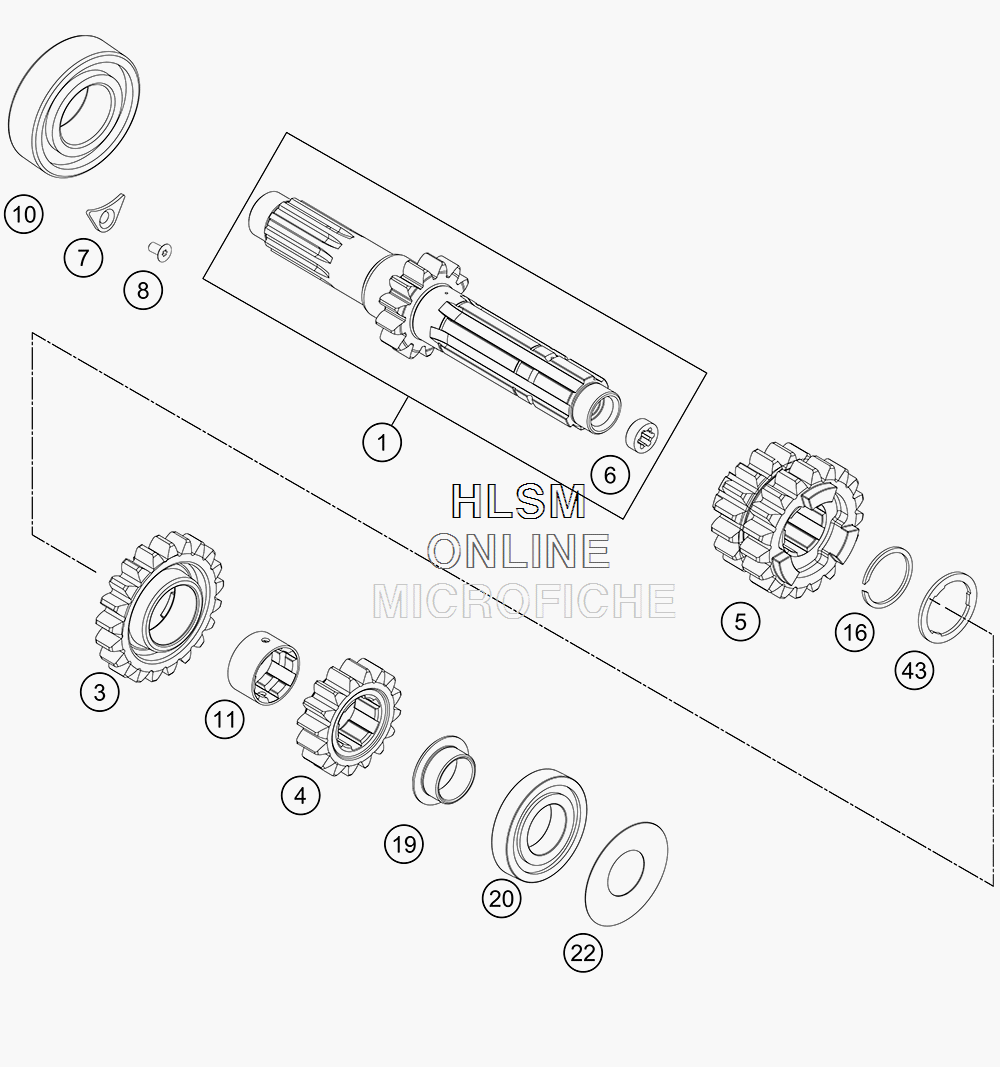

TRANSMISSION - MAIN SHAFT для Ktm 250 SXF - 2014 года выпуска`
-
№АртикулНазвание
-
177733001000 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
3*77733005000 IDLER GEAR 5TH G. T=21IDLER GEAR 5TH G. T=21
-
4*77733002000 SOLID GEAR 2ND G. T=16SOLID GEAR 2ND G. T=16
-
5*77733303000 SLIDING GEAR 3./4.G Z=17/19SLIDING GEAR 3./4.G Z=17/19
-
678033001110 BUSHINGBUSHING
-
775030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
8019050106 INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
1000625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1177733024000 IDLER GEAR BUSHINGIDLER GEAR BUSHING
-
1650133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
1977733027000 BUSHINGBUSHING
-
200625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
2277233088000 SPACER SHIM 21X42X0.2SPACER SHIM 21X42X0.2
-
4377733021000 STOP DISCSTOP DISC
