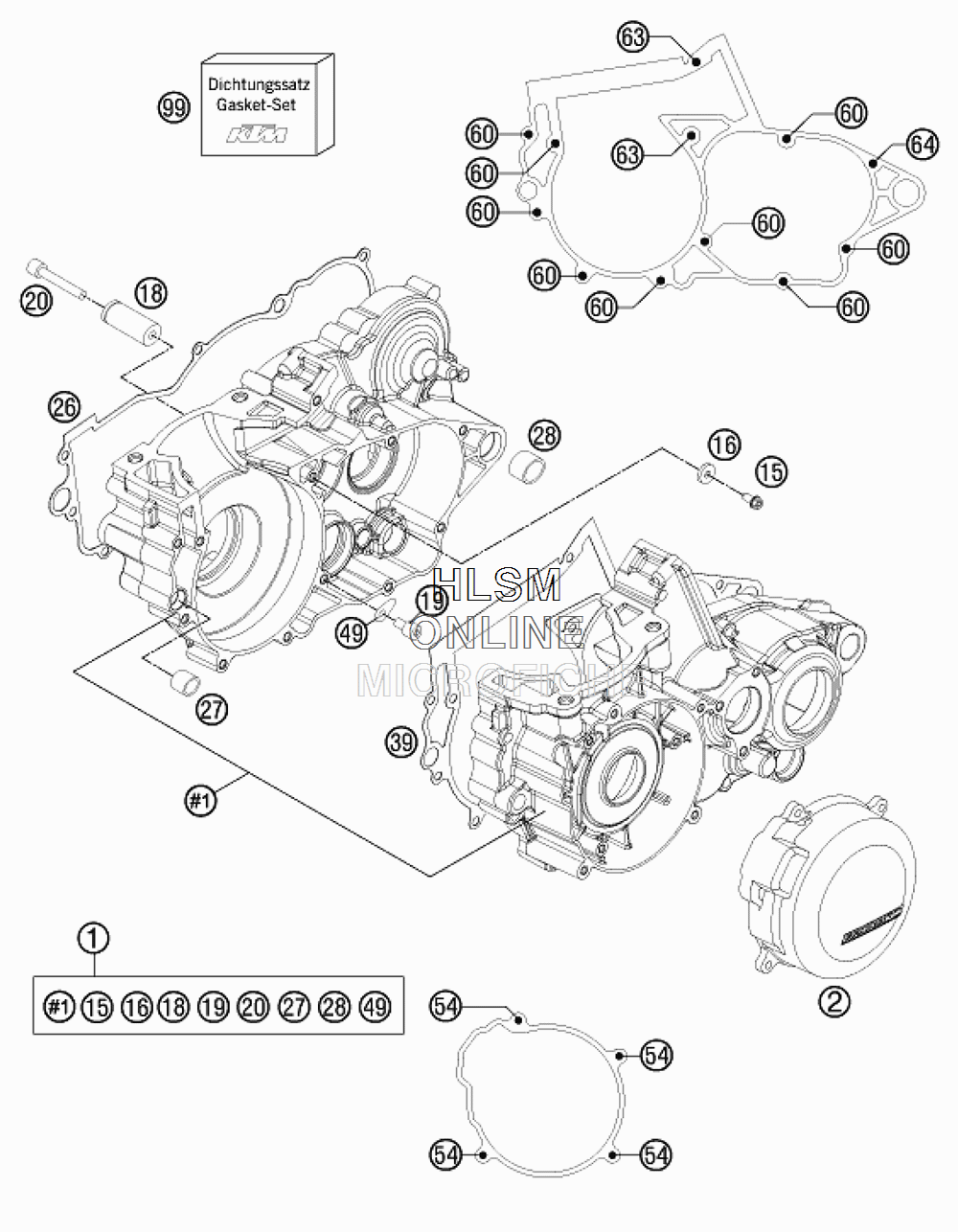

ENGINE CASE для Ktm 250 SX - 2014 года выпуска`
-
№АртикулНазвание
-
154830000244 ENGINE CASE CPL.W. BEARINGENGINE CASE CPL.W. BEARING
-
254830002400 IGNITION COVERIGNITION COVER
-
150025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
1650232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
1859033018000 BUSHING PINBUSHING PIN
-
190912060123 AH SCREW DIN0912-M 6X12AH SCREW DIN0912-M 6X12
-
200912060404 AH SCREW DIN0912-M 6X40 A2AH SCREW DIN0912-M 6X40 A2
-
2654830024000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
2754630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2854830027000 DOWEL 21X12DOWEL 21X12
-
3954830039000 ENGINE CASE GASKETENGINE CASE GASKET
-
4954634049000 RETAINING PLATERETAINING PLATE
-
540025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
600025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
630025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
640025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
-
9954830099100 GASKET SETGASKET SET
