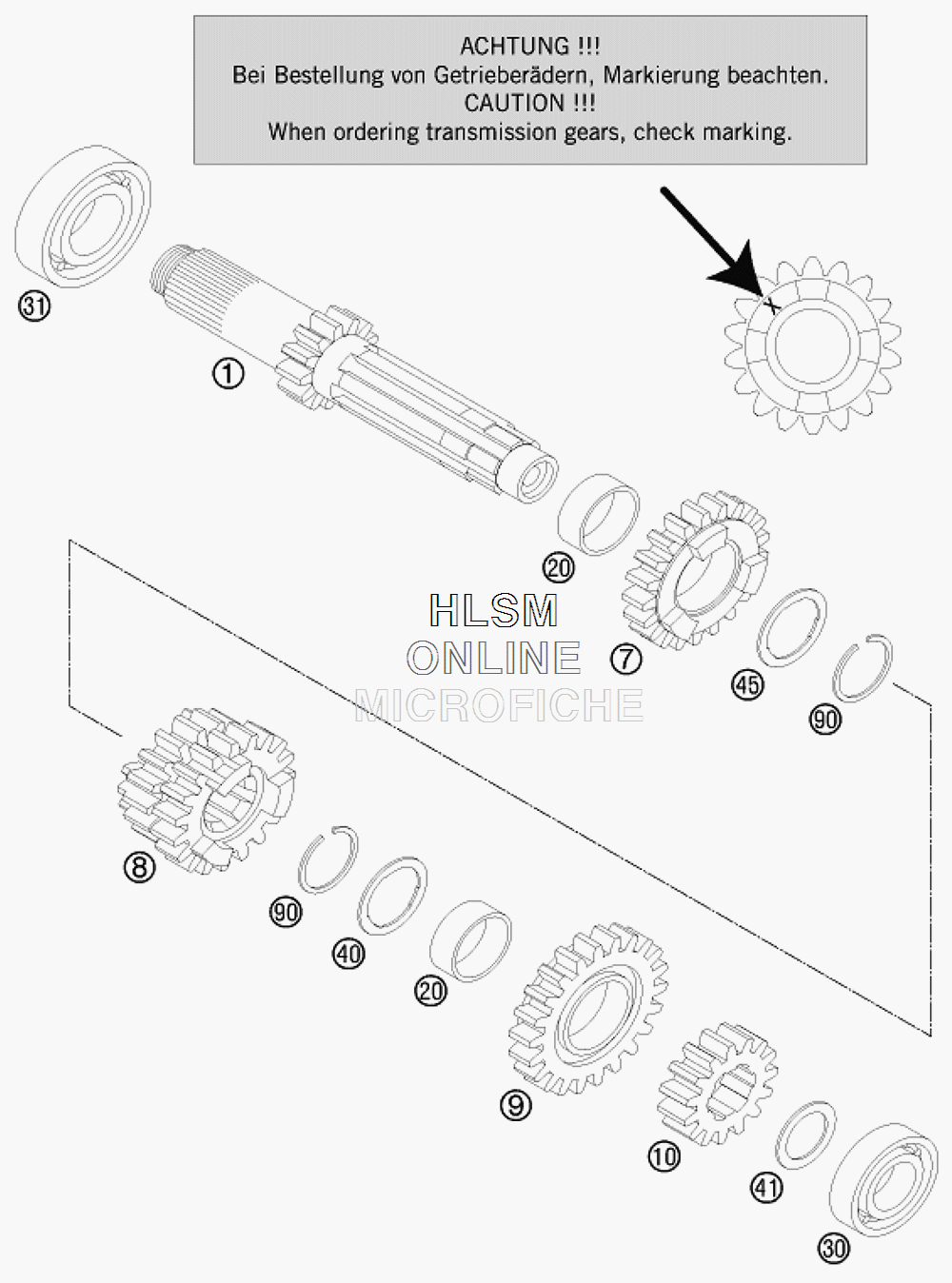

TRANSMISSION - MAIN SHAFT для Ktm 150 XC - 2014 года выпуска`
-
№АртикулНазвание
-
150333001044 MAIN SHAFT CPL. 13-TMAIN SHAFT CPL. 13-T
-
750333007000 IDLER G.5TH G.21-T "5S21"IDLER G.5TH G.21-T "5S21"
-
850333008100 SLIDING GEAR 3/4.G. 17/19-T 04 "3S17H"-"4S19H"SLIDING GEAR 3/4.G. 17/19-T 04 "3S17H"-"4S19H"
-
950333009500 IDLE GEAR 6TH G. 6S22HIDLE GEAR 6TH G. 6S22H
-
1050333010100 SOLID GEAR 2ND G.15-T"2S15"SOLID GEAR 2ND G.15-T"2S15"
-
2050333020000 IDLER GEAR BUSH. 22X25X11,1 AIDLER GEAR BUSH. 22X25X11,1 A
-
300625160031 GROOVED BALL B. 16003 C4 J1GROOVED BALL B. 16003 C4 J1
-
310625060042 BALL BEARING 6004 TN9 C4BALL BEARING 6004 TN9 C4
-
4050333040000 STOP DISC 22,2X27,8X1 ASTOP DISC 22,2X27,8X1 A
-
4150333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
4550333045000 STOP DISK 22,2X27,8X1STOP DISK 22,2X27,8X1
-
9050133090000 LOCK RING 22X1,2LOCK RING 22X1,2
