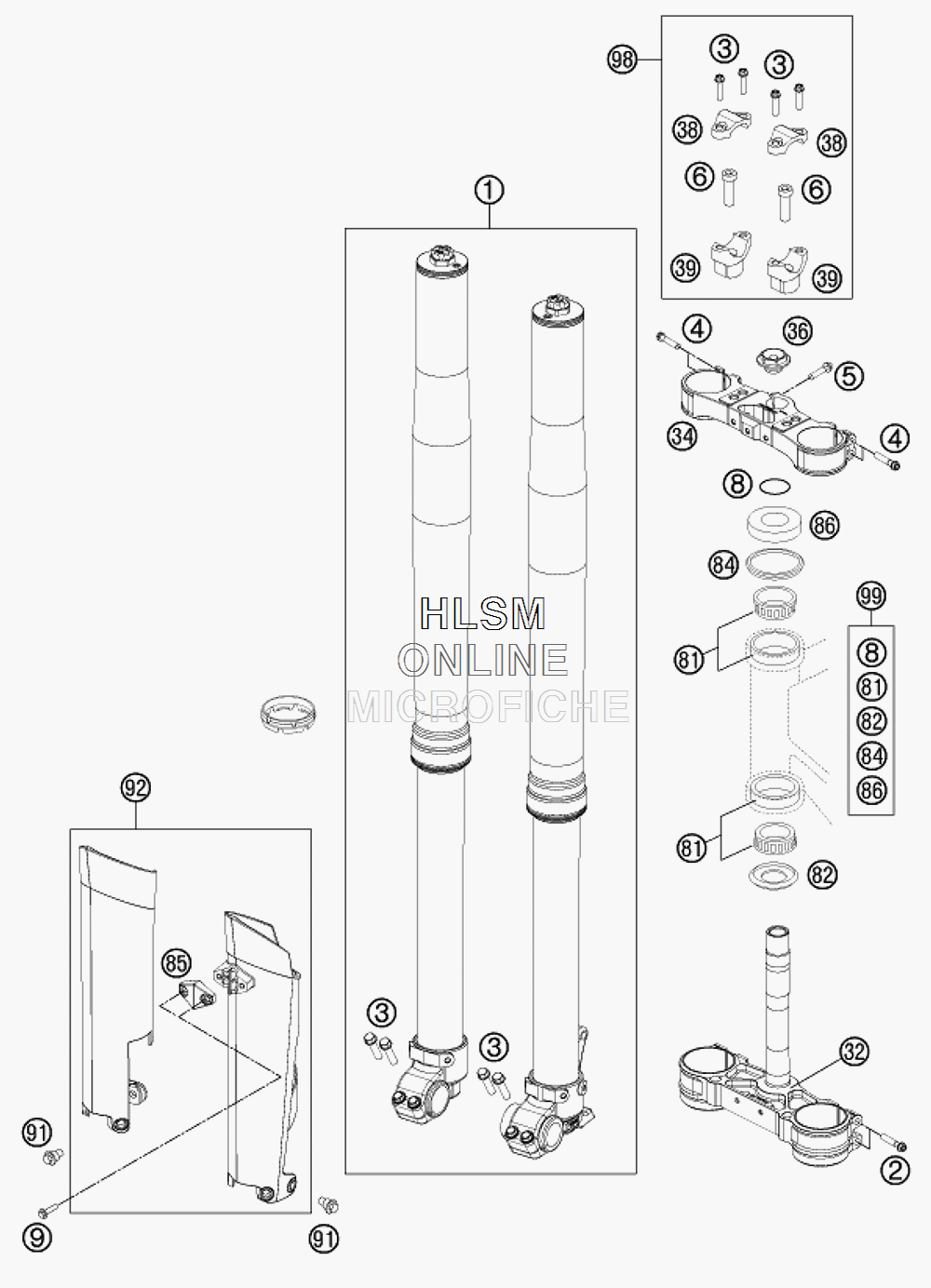

FRONT FORK TRIPLE CLAMP для Ktm 150 SX - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    14187N5101 FORK WP
    FORK WP
  • 2
    0025080506 HH COLLAR SCREW M8X50 TX40
    HH COLLAR SCREW M8X50 TX40
  • 3
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 4
    0025080406 HH COLLAR SCREW M8X40 TX40
    HH COLLAR SCREW M8X40 TX40
  • 5
    0025080256S HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 6
    0032100356S AH-COLLAR SCREW M10X35 ISA45
    AH-COLLAR SCREW M10X35 ISA45
  • 8
    0770025035 O-RING 25X3,55 NBR70 05
    O-RING 25X3,55 NBR70 05
  • 9
    0017060206 SCREW F. PLASTIC K60X20AL SW6
    SCREW F. PLASTIC K60X20AL SW6
  • 32
    7770103202230 TRIPLE CL. BOTT. CPL. X=22 BL.
    TRIPLE CL. BOTT. CPL. X=22 BL.
  • 34
    7770103402230 TRIPLE CLAMP TOP X=22 BLACK
    TRIPLE CLAMP TOP X=22 BLACK
  • 36
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 38
    77201038000 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    59401039032 HANDLEB.SUPP. D=28MM H=32MM
    HANDLEB.SUPP. D=28MM H=32MM
  • 39
    59401039037 HANDLEB.SUPP. D=28MM H=37MM
    HANDLEB.SUPP. D=28MM H=37MM
  • 39
    59401039042 HANDLEB.SUPP. D=28MM H=42MM
    HANDLEB.SUPP. D=28MM H=42MM
  • 81
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    7800108500028 CLAMP F. SPEED. CABLE D=6MM
    CLAMP F. SPEED. CABLE D=6MM
  • 86
    78101086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 92
    7800109420028 FORK PROTECT. L/S+R/S WHITE
    FORK PROTECT. L/S+R/S WHITE
  • 98
    00050000921 HANDLEBAR SUPPORT KIT D28/H37
    HANDLEBAR SUPPORT KIT D28/H37
  • 99
    00050000930 STEARING HEAD REP. KIT
    STEARING HEAD REP. KIT
