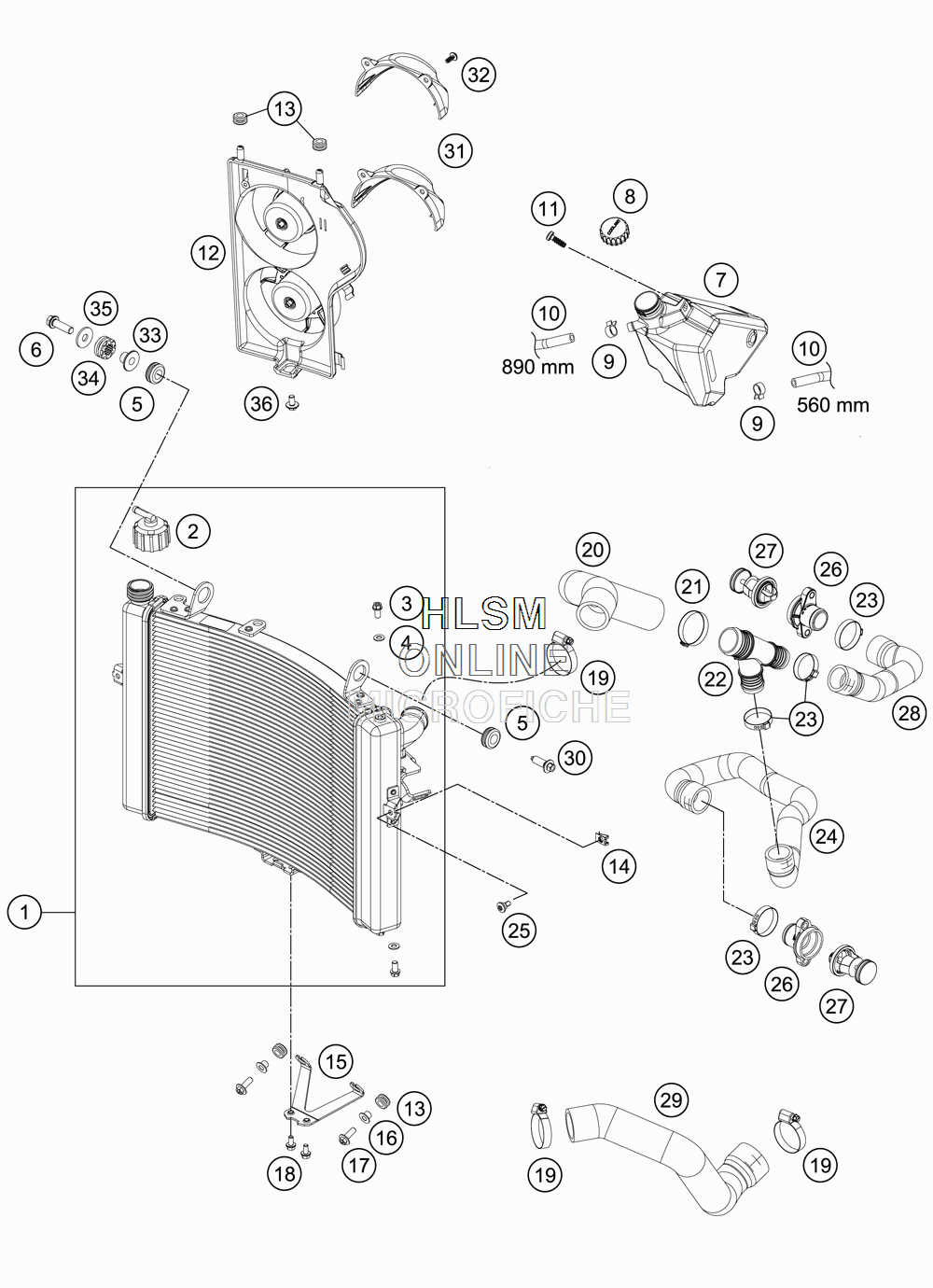

COOLING SYSTEM для Ktm 1290 SUPER DUKE ABS - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    61335010000 WATER COOLER
    WATER COOLER
  • 2
    62535009000 RADIATOR CAP 1,4 BAR
    RADIATOR CAP 1,4 BAR
  • 3
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 4
    60035048000 ALU-GASKET 6X10X1.5
    ALU-GASKET 6X10X1.5
  • 5
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 6
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 7
    61335065000 EXPANSION TANK CPL.
    EXPANSION TANK CPL.
  • 8
    60335066044 PLUG F. EXPANSION TANK
    PLUG F. EXPANSION TANK
  • 9
    58007117000 YDNAC-CLAMP 10107 10MM
    YDNAC-CLAMP 10107 10MM
  • 10
    60035067001 HOSE 6X10 EPDM 03
    HOSE 6X10 EPDM 03
  • 11
    0081250141 SCREW FOR PLASTIC PT K50X14T25
    SCREW FOR PLASTIC PT K50X14T25
  • 12
    60335044033 FAN COVER CPL.
    FAN COVER CPL.
  • 13
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 14
    69008021080 RANGE CHANGE METAL NUT M5
    RANGE CHANGE METAL NUT M5
  • 15
    60335005000 MOUNTING PLATE COOLER BOTTOM
    MOUNTING PLATE COOLER BOTTOM
  • 16
    75014010050 COLLAR BUSHING 6,1X8,1X14X8 07
    COLLAR BUSHING 6,1X8,1X14X8 07
  • 17
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 18
    0025050106 COLLAR SCREW M5X12 ISA30
    COLLAR SCREW M5X12 ISA30
  • 19
    54305058000 HOSE CLAMP 30-45 SGT
    HOSE CLAMP 30-45 SGT
  • 20
    60335026000 PREFORMED HOSE
    PREFORMED HOSE
  • 21
    00050396706 VARIABLE ONE-EAR CLAMP 39,6MM
    VARIABLE ONE-EAR CLAMP 39,6MM
  • 22
    60335093000 Y-JOINT
    Y-JOINT
  • 23
    00050331706 VARIABLE ONE-EAR CLAMP 33,1MM
    VARIABLE ONE-EAR CLAMP 33,1MM
  • 24
    60335025000 PREFORMED HOSE
    PREFORMED HOSE
  • 25
    69008021160 SPECIAL SCREW M5X12
    SPECIAL SCREW M5X12
  • 26
    61235019100 WATER CONNECTION CPL.
    WATER CONNECTION CPL.
  • 27
    61235017000 THERMOSTAT 70 DEGREE
    THERMOSTAT 70 DEGREE
  • 28
    60335024000 PREFORMED HOSE
    PREFORMED HOSE
  • 29
    60335027000 PREFORMED HOSE
    PREFORMED HOSE
  • 30
    0024060123 COLLAR SCREW M6X12 TX
    COLLAR SCREW M6X12 TX
  • 31
    61335049000 AIRDEFLECTOR
    AIRDEFLECTOR
  • 32
    0081050141 EJOT PT SCREW 50X14 WN 1451
    EJOT PT SCREW 50X14 WN 1451
  • 33
    61342041000 COLLAR BUSH 6,5X9X18X8,5
    COLLAR BUSH 6,5X9X18X8,5
  • 34
    62142041000 DAMP. COMPONENT ABS MODUL
    DAMP. COMPONENT ABS MODUL
  • 35
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 36
    83008000012 SPECIAL SCREW M6X12X3
    SPECIAL SCREW M6X12X3
