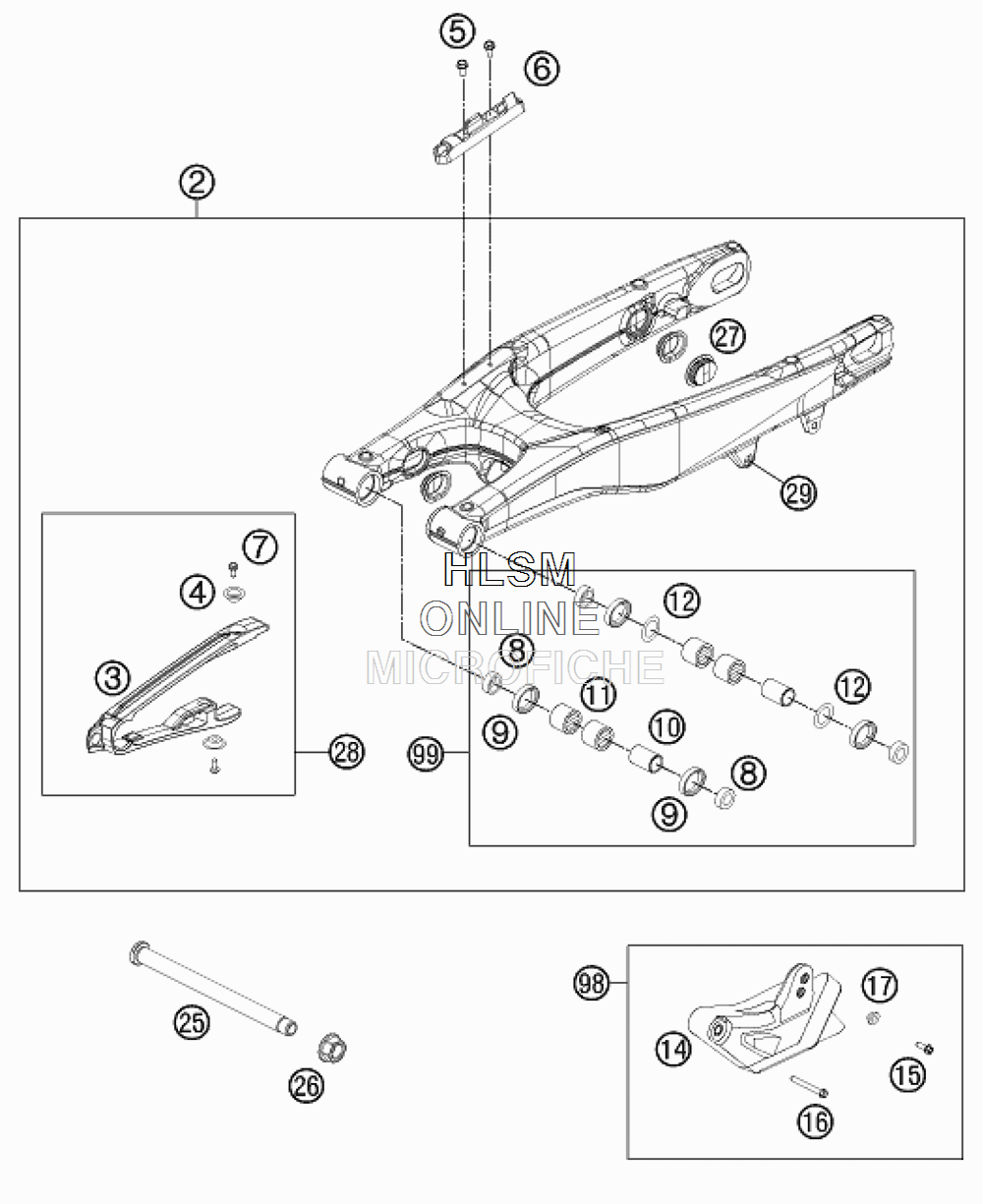

SWING ARM для Ktm 125 SX - 2014 года выпуска

  • №
    Артикул
    Название
  • 2
    77704030144 SWINGARM CPL.
    SWINGARM CPL.
  • 3
    77204066000 CHAIN SLIDING PROTECTION
    CHAIN SLIDING PROTECTION
  • 4
    77304066050 BUSHING F. CHAIN SLIDING PR.
    BUSHING F. CHAIN SLIDING PR.
  • 5
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 6
    76504042000 BRAKE LINE GUIDE
    BRAKE LINE GUIDE
  • 7
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 8
    54804034000 BUCKET F. SHAFT SEAL RING
    BUCKET F. SHAFT SEAL RING
  • 9
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 10
    54804032000 BUSHING SLEEVE F. SWING ARM
    BUSHING SLEEVE F. SWING ARM
  • 11
    58033097000 NEEDLE BEARING HK 2216
    NEEDLE BEARING HK 2216
  • 12
    54603036000 STOP DISK 22,2X31,7X1
    STOP DISK 22,2X31,7X1
  • 14
    77704070000 CHAIN GUIDE REAR CPL.
    CHAIN GUIDE REAR CPL.
  • 15
    59009062019 SPECIAL SCREW M6X19 WS=8 10.9
    SPECIAL SCREW M6X19 WS=8 10.9
  • 16
    0025060456 HH COLLAR SCREW M6X45 TX30
    HH COLLAR SCREW M6X45 TX30
  • 17
    77304070130 BUSH. F. CHAIN FAIL. PROT.
    BUSH. F. CHAIN FAIL. PROT.
  • 25
    77304037000 SWINGARM BOLT M16X1,5
    SWINGARM BOLT M16X1,5
  • 26
    54804038000 SELF LOCK.NUT M16X1,5 WS=19
    SELF LOCK.NUT M16X1,5 WS=19
  • 27
    77204041000 CLOSING COVER
    CLOSING COVER
  • 28
    77204066010 CHAIN GUARD CPL.
    CHAIN GUARD CPL.
  • 29
    54603055051 PRESS IN NUT M6 STEEL ZINC
    PRESS IN NUT M6 STEEL ZINC
  • 98
    77704070210 CHAIN GUIDE KIT REAR SX-F
    CHAIN GUIDE KIT REAR SX-F
  • 99
    54804230210 SWINGARM REPAIR KIT
    SWINGARM REPAIR KIT
