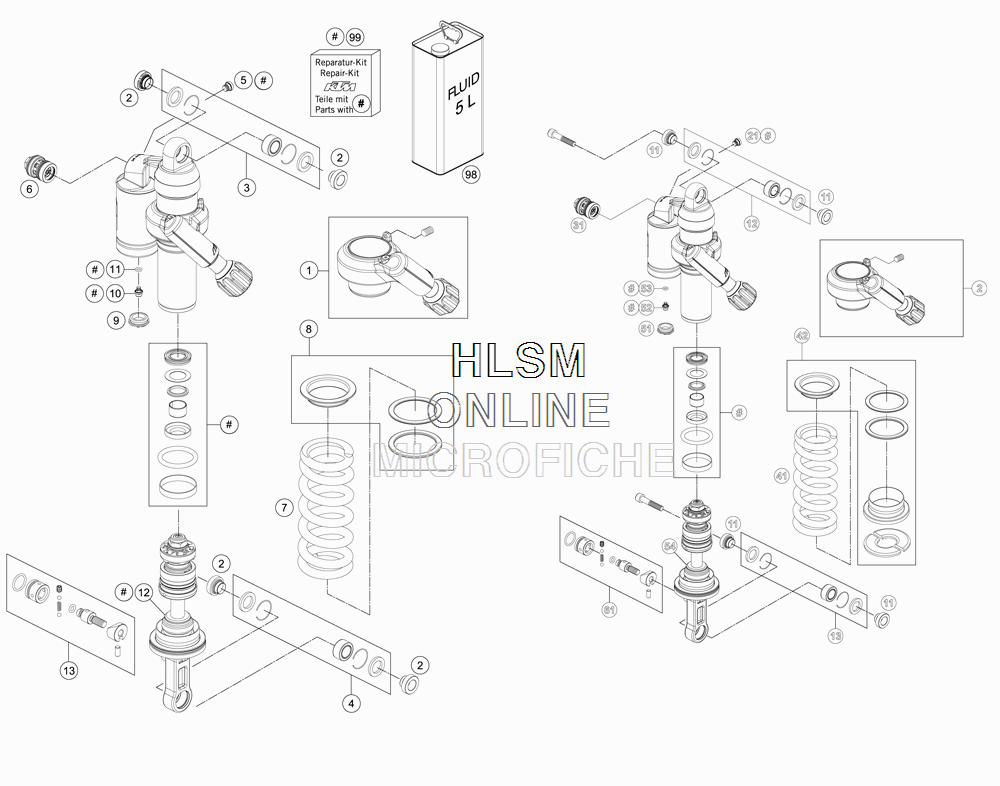

MONOSHOCK DISASSEMBLED для Ktm 1190 ADVENTURE R - 2014 года выпуска`
-
№АртикулНазвание
-
115000M01S1 POWER ADJUSTER CPL. WITH SCREWPOWER ADJUSTER CPL. WITH SCREW
-
246181138 BUSHING KGW 1525 14X32BUSHING KGW 1525 14X32
-
3R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
4R15009 BEARING KIT KGW 1525 990 DUKEBEARING KIT KGW 1525 990 DUKE
-
550180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
650180213S6 DCC-COMPR.DAMP.CONTROL CPL.DCC-COMPR.DAMP.CONTROL CPL.
-
791010333S SPRING (59) 180-205SPRING (59) 180-205
-
8R15015 REPAIR KIT GASKET BOTTOMREPAIR KIT GASKET BOTTOM
-
946811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
1036120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
1146810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
1250181080 BUMPERBUMPER
-
1346180522S1 TAP ADJ. REBOUNDTAP ADJ. REBOUND
-
9850180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R15014 REPAIR KIT GASKET TOPREPAIR KIT GASKET TOP
